GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF90

Mã sản phẩm : VMECA - VF90

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 27,83 Kg @ -60 kPa • Lực nâng (→): 15,98 Kg @ -60 kPa • Thể tích: 50,0 cm³ • Đường kính: 92 mm • Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút. Ứng dụng: • Carton • Veneer tấm • Nhưng tâm kim loại • Hàng điện tử

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

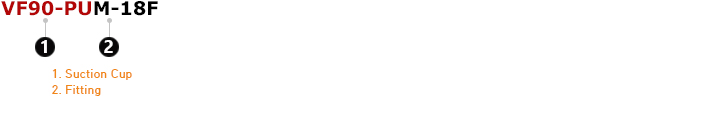

BUILD AND ORDER:

1. Suction Cup

Symbol	Description
VF90-PU	Flat suction cup, 90 mm, Polyurethane

2. Fitting

Symbol	Description
Blank	No fitting
M-18F	Fitting, Mesh filter, G1/8 female
M-14F	Fitting, Mesh filter, G1/4 female
M-38F	Fitting, Mesh filter, G3/8 female
M-12F	Fitting, Mesh filter, G1/2 female
18F	Fitting, G1/8 female
14F	Fitting, G1/4 female
38F	Fitting, G3/8 female
12F	Fitting, G1/2 female

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg			Life Force (→), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa	-20 kPa	-60 kPa	-90 kPa
92	50.0	10.2	27.83	37.41	8.84	15.98	19.72

2. Weight

Part Number	Description	Weight (g)
VF90-PU	Flat suction cup, 90 mm, Polyurethane	48.9
350-000-4323	Fitting, Mesh filter, G1/8 female	59.8
350-000-3823	Fitting, Mesh filter, G1/4 female	57.3
350-000-3923	Fitting, Mesh filter, G3/8 female	55.5
350-000-4023	Fitting, Mesh filter, G3/8 female	51.9
350-000-3323	Fitting, G1/8 female	59.4
350-000-3423	Fitting, G1/4 female	56.9
350-000-3523	Fitting, G3/8 female	55.1
350-000-3623	Fitting, G1/2 female	51.5

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
Polyurethane	60	Translucent Orange	0 ~ 60

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
Polyurethane	Excellent	Excellent	Excellent	Fair	Fair

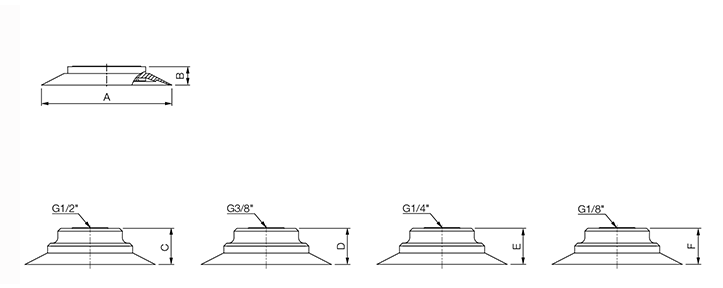

DIMENSIONS:

VF90

Rubber Part, 12F, 38F, 14F, and 18F

Unit: mm

Legend	A	B	C	D	E	F
Dimension	92	13	25.5	25.5	25.5	25.5

ORDER NUMBER:

Order Numbers

Part Number	Description
Mesh Filter
VF90-PUM-18F	Flat suction cup, 90 mm, Polyurethane, G1/8 female, Mesh filter
VF90-PUM-14F	Flat suction cup, 90 mm, Polyurethane, G1/4 female, Mesh filter
VF90-PUM-38F	Flat suction cup, 90 mm, Polyurethane, G3/8 female, Mesh filter
VF90-PUM-12F	Flat suction cup, 90 mm, Polyurethane, G1/2 female, Mesh filter
No Mesh Filter
VF90-PU-18F	Flat suction cup, 90 mm, Polyurethane, G1/8 female
VF90-PU-14F	Flat suction cup, 90 mm, Polyurethane, G1/4 female
VF90-PU-38F	Flat suction cup, 90 mm, Polyurethane, G3/8 female
VF90-PU-12F	Flat suction cup, 90 mm, Polyurethane, G1/2 female
Rubber Part
VF90-PU	Flat suction cup, 90 mm, Polyurethane
Fitting
350-000-4323	Fitting, Mesh filter, G1/8 female
350-000-3823	Fitting, Mesh filter, G1/4 female
350-000-3923	Fitting, Mesh filter, G3/8 female
350-000-4023	Fitting, Mesh filter, G3/8 female
350-000-3323	Fitting, G1/8 female
350-000-3423	Fitting, G1/4 female
350-000-3523	Fitting, G3/8 female
350-000-3623	Fitting, G1/2 female
