BƠM CHÂN KHÔNG CONVUM - JAPAN
BƠM CHÂN KHÔNG CONVUM - SERIES CVZ
• High flow ejector that is comparable to vacuum pump Maximum vacuum folw is 877L/min (at 4 nozzles, supply pressure 0.55Mpa) Best choice for suction the works with porous surface and heavy works • Multi stage nozzle mounted Can select 1~4 nozzles to meet customer's needs • Low noise, 60dB (at 1 nozzle, block the vacuum port, supply pressure 0.55Mpa) • With the port (Rp1/8) for mount the pressure sensor

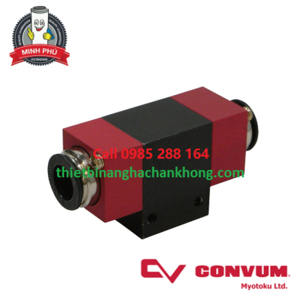

BƠM CHÂN KHÔNG CONVUM - HFV-25M
• Easy mounting compared with standard type High vacuum flow • Vacuum flow up to 140R/min(ANR) • Application examples ·Small granulated parts (plastic,wood,metals) ·Air / Gas evacuation ·PCB handling ·Small object (pills,chips,bearings) ·Dry powder,cereals ·Transistor ablation process
BƠM CHÂN KHÔNG CONVUM - SERIES HFV
• High vacuum flow Vacuum flow up to 740R/min(ANR) • Application examples ·Small granulated parts (plastic,wood,metals) ·Air / Gas evacuation ·PCB handling ·Small object (pills,chips,bearings) ·Dry powder,cereals ·Transistor ablation process
BƠM CHÂN KHÔNG CONVUM - SERIES HDV
• High vacuum level Vacuum level up to -98.6 kPa • Suitable for degassing,air evacuation or vacuum chamber
BƠM CHÂN KHÔNG CONVUM - SERIES MCA
• Light mass Compact design with resin body I• n-line attachment Easy attachment. Connect directely tube to push-in ports • Pad direct mounting Direct mounting possible with male threaded port type selection.
BƠM CHÂN KHÔNG CONVUM - SERIES CVF
• Mounted filter Compact design,lead wire savings • Solenoid valve option available Select CVF-2 for vacuum generation with solenoid valve

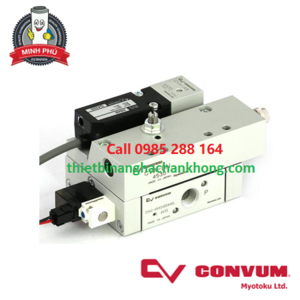

BƠM CHÂN KHÔNG CONVUM - SERIES CVA2
• Pressure switch,blow-off valve can be mounted afterwards • Solenoid valve for vacuum generation mounted Blow-off valve • It automatically blows after vacuum generation stops

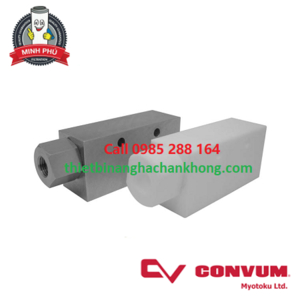

BƠM CHÂN KHÔNG CONVUM - SERIES CV□
• Body and nozzle made of stainless material SUS303 and SUS316 • For semiconductor equipements,machines Suitable for gas,chemical suction • All PTFE type also available PTFE material is excellent against chemicals

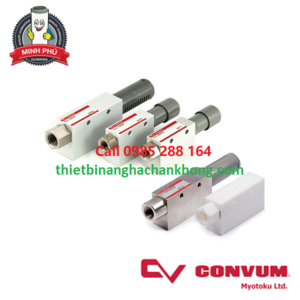

BƠM CHÂN KHÔNG CONVUM - SERIES CV
• Long life circle No moving parts,simple construction • Several sizes Several nozzle sizes,from low to high vacuum flow

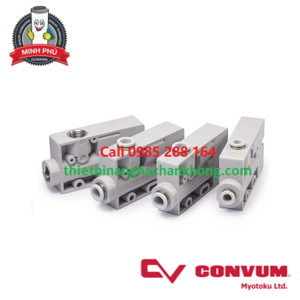

BƠM CHÂN KHÔNG CONVUM - SERIES MCV
• Plastics body • Push-in connecter mounted • Compact size : 78*42.5mm • Lightweight 50% reduced (compared to CV-15)

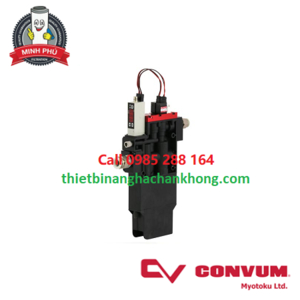

BƠM CHÂN KHÔNG CONVUM - SERIES MC10
• New ejector series with low air consumption • High vacuum flow • High flow type

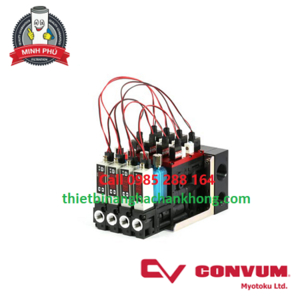

BƠM CHÂN KHÔNG CONVUM - SERIES MC72
• Successor of CVK series • High vacuum flow type Suitable for porous workpiece handling • Blow-off solenoid valve and check valve option available • Can be mounted on manifold Up to 5 units

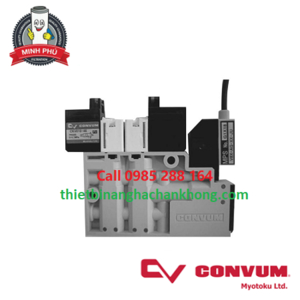

BƠM CHÂN KHÔNG CONVUM - SERIES MC52
• Compact type and light mass 10 mm width body • Analog vacuum sensor mounted • High blow-off flow 50L at 0.5MPa • Can be mounted on manifold Up to 8 units

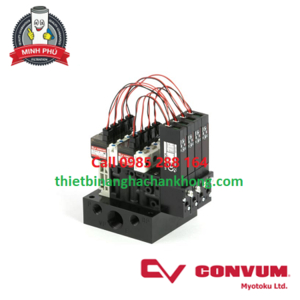

BƠM CHÂN KHÔNG CONVUM - SERIES MC42
• Compact type and light mass 10 mm width body • Digital vacuum sensor moutable • Can be mounted on manifold Up to 5 units • Common dimension with MPV4 switching valve • Easy replacement with vacuum pump system

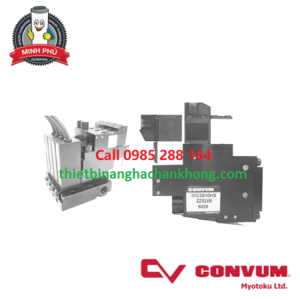

BƠM CHÂN KHÔNG CONVUM - SERIES MC32
• Compact type 10 mm width body • Digital vacuum sensor moutable • Exhaust port selection available M5 port or silencer • Can be mounted on manifold Up to 8 units

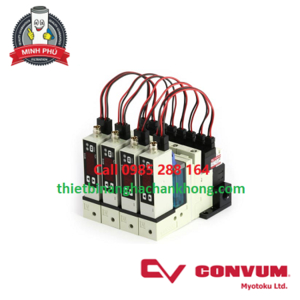

BƠM CHÂN KHÔNG CONVUM - SERIES MC22
• MC22 is successor of MC2 series • Ligth and compact 20mm width,compact solenoid valve. • Vacuum pressure and nozzle sizes choice available Energy savings with MVS-201 sensor. Nozzle choice: 0.5,0.7 and 1mm • Manifold option Up to 8 units

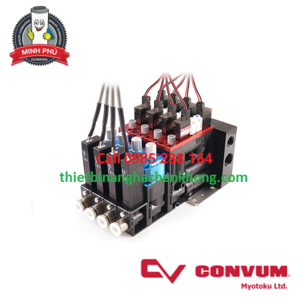

BƠM CHÂN KHÔNG CONVUM - SERIES SC3
• Multi-stage nozzle is available • The combination with or without the filter and the sensor can be selected • Mounted with the check valve that can be used to release workpieces without wasting blow-off air Solenoid valve with self-holding function is available. • Air consumption will be dramatically reduced with the use of the energy-saving sensor. • The connector with supply port and vacuum port is easy assemble and easy disassemble.

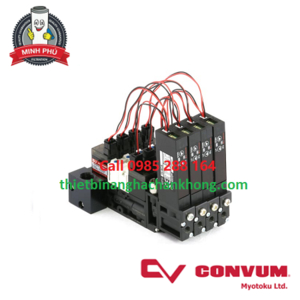

BƠM CHÂN KHÔNG CONVUM - SERIES SC2
• Compact ejector • Vacuum response time 20ms (30% reduce ,compared to other CONVUM) *Condition: 05HS type,up to -60kPa,tube:φ4/φ2.5X50mm • Compact design Volume: 40% reduce,compared to MC42 • Digital vacuum sensor moutable • Can be mounted on manifold up to 8 units

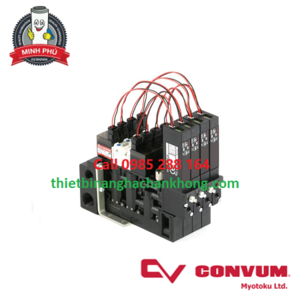

BƠM CHÂN KHÔNG CONVUM - SERIES SC1
• energy-savings • Air consumptions:50% reduced (compared to MC52) *in case of X/B nozzle • Space-savings 10mm width body Very low supply pressure:0.18MPa,achievement:-83kPa(B nozzle) Filter mounted • Preventing the dust into the parts Sensor mounted • Confirming the suction and control the solenoid valve Self-holding solenoid valve choice available Keeping vacuum while power failure • Common exhaust choice available Using in the clean room
