GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF50X2

Mã sản phẩm : VMECA - VF50X2

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 7,55 Kg @ -60 kPa • Lực nâng (→): 4.08 Kg @ -60 kPa • Thể tích: 10,0 cm³ • Đường kính: 53 mm • Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút. Ứng dụng: • Carton • Veneer tấm • Nhưng tâm kim loại • Hàng điện tử

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

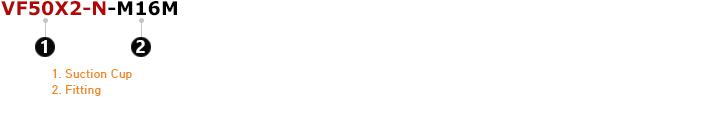

BUILD AND ORDER:

1. Suction Cup

Code	Description
VF50X2-N	Flat suction cup, 50 mm, Nitrile (NBR)
VF50X2-S	Flat suction cup, 50 mm, Silicone
VF50X2-WS	Flat suction cup, 50 mm, White silicone
VF50X2-WS(FDA)	Flat suction cup, 50 mm, White silicone (FDA)
VF50X2-HS	Flat suction cup, 50 mm, High-temp silicone
VF50X2-CS	Flat suction cup, 50 mm, Conductive silicone
VF50X2-U	Flat suction cup, 50 mm, Urethane
VF50X2-A	Flat suction cup, 50 mm, Mark free
VF50X2-PU	Flat suction cup, 50 mm, Polyurethane

2. Fitting

Code	Description
Blank	No fitting
M16M	Fitting, M16 male

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg			Life Force (→), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa	-20 kPa	-60 kPa	-90 kPa
53	10.0	3.67	7.55	9.79	2.44	4.08	5.10

2. Weight

Part Number	Description	Weight (g)
VF50X2-N	Flat suction cup, 50 mm, Nitrile (NBR)	12.3
VF50X2-S	Flat suction cup, 50 mm, Silicone	11.9
VF50X2-WS	Flat suction cup, 50 mm, White silicone	11.9
VF50X2-WS(FDA)	Flat suction cup, 50 mm, White silicone (FDA)	11.9
VF50X2-HS	Flat suction cup, 50 mm, High-temp silicone	11.9
VF50X2-CS	Flat suction cup, 50 mm, Conductive silicone	12.0
VF50X2-U	Flat suction cup, 50 mm, Urethane	12.3
VF50X2-A	Flat suction cup, 50 mm, Mark free	14.2
VF50X2-PU	Flat suction cup, 50 mm, Polyurethane
350-000-1405	Fitting, M16 male	52.23

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
NBR	60	Black	-20 ~ 110
Silicone	55	Red	-70 ~ 200
White Silicone	55	Translucent White	-70 ~ 200
White Silicone (FDA)	55	Translucent White	-70 ~ 200
High Temp. Silicone	50	Blue	-70 ~ 280
Conductive Material	70	Smoky Black	-45 ~ 90
Urethane	60	Dark Green	0 ~ 100
Mark Free	75	Black	-10 ~ 100
Polyurethane	60	Translucent Orange	0 ~ 60

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
NBR	Excellent	Excellent	Fair	Good	Fair
Silicone	Good	Poor	Excellent	Good	Poor
White Silicone	Good	Poor	Excellent	Good	Poor
High Temp. Silicone	Good	Poor	Excellent	Good	Poor
Conductive Silicone	Good	Poor	Excellent	Good	Poor
Urethane	Excellent	Excellent	Excellent	Fair	Poor
Mark Free	Good	Excellent	Excellent	Good	Excellent
Polyurethane	Excellent	Excellent	Excellent	Fair	Fair

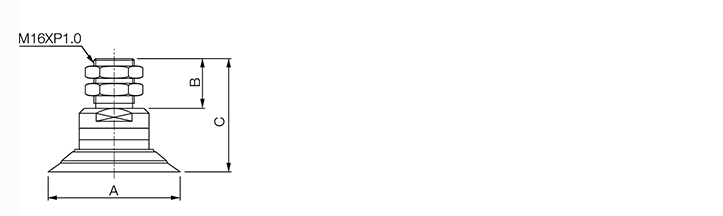

DIMENSIONS:

VF50X2

M16M

Unit: mm

Legend	A	B	C
Dimension	53	20	45.5

ORDER NUMBER:

Order Numbers

Part Number	Description
VF50X2-N	Flat suction cup, 50 mm, Nitrile (NBR)
VF50X2-S	Flat suction cup, 50 mm, Silicone
VF50X2-WS	Flat suction cup, 50 mm, White silicone
VF50X2-WS(FDA)	Flat suction cup, 50 mm, White silicone (FDA)
VF50X2-HS	Flat suction cup, 50 mm, High-temp silicone
VF50X2-CS	Flat suction cup, 50 mm, Conductive silicone
VF50X2-U	Flat suction cup, 50 mm, Urethane
VF50X2-A	Flat suction cup, 50 mm, Mark free
VF50X2-PU	Flat suction cup, 50 mm, Polyurethane
350-000-1405	Fitting, M16 male
