GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF150

(1 đánh giá)

VMECA - VF150

VMECA - KOREA

Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 86,73 Kg @ -60 kPa • Lực nâng (→): 61,22 Kg @ -60 kPa • Thể tích: 160,0 cm³ • Đường kính: 152 mm • Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút. Ứng dụng: • Carton • Veneer tấm • Nhưng tâm kim loại • Hàng điện tử

0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

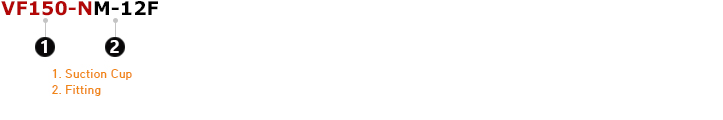

BUILD AND ORDER:




1. Suction Cup

Symbol Description
VF150-N Flat suction cup, 150 mm, Nitrile (NBR)
VF150-S Flat suction cup, 150 mm, Silicone
VF150-WS Flat suction cup, 150 mm, White silicone
VF150-WS(FDA) Flat suction cup, 150 mm, White silicone (FDA)
VF150-HS Flat suction cup, 150 mm, High-temp silicone
VF150-CS Flat suction cup, 150 mm, Conductive silicone
VF150-U Flat suction cup, 150 mm, Urethane
VF150-A Flat suction cup, 150 mm, Mark free

2. Fitting

Symbol Description
Blank No fitting
M-12F Fitting, Mesh filter, G1/2 female
12F Fitting, G1/2 female

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter Volume Lifting Force (↑), Kg Life Force (→), Kg
(mm) (cm³) -20 kPa -60 kPa -90 kPa -20 kPa -60 kPa -90 kPa
152 160.0 30.61 86.73 112.24 25.51 61.22 81.63

2. Weight

Part Number Description Weight (g)
VF150-N Flat suction cup, 150 mm, Nitrile (NBR) 351.0
VF150-S Flat suction cup, 150 mm, Silicone 333.9
VF150-WS Flat suction cup, 150 mm, White silicone 341.0
VF150-WS(FDA) Flat suction cup, 150 mm, White silicone (FDA) 341.0
VF150-HS Flat suction cup, 150 mm, High-temp silicone 363.0
VF150-CS Flat suction cup, 150 mm, Conductive silicone 347.6
VF150-U Flat suction cup, 150 mm, Urethane 363.6
VF150-A Flat suction cup, 150 mm, Mark free 375.5
350-000-4015 Fitting, Mesh filter, G1/2 female 199.73
350-000-3615 Fitting, G1/2 female 198.9

3. Material Specifications

Material Hardness Shore (°) Color Temperature (℃)
NBR 60 Black -20 ~ 110
Silicone 55 Red -70 ~ 200
White Silicone 55 Translucent White -70 ~ 200
White Silicone (FDA) 55 Translucent White -70 ~ 200
High Temp. Silicone 50 Blue -70 ~ 280
Conductive Material 70 Smoky Black -45 ~ 90
Urethane 60 Dark Green 0 ~ 100
Mark Free 75 Black -10 ~ 100

4. Material Resistance

Description Wear Resistance Oil Weather/Ozone Alcohol Acid
NBR Excellent Excellent Fair Good Fair
Silicone Good Poor Excellent Good Poor
White Silicone Good Poor Excellent Good Poor
High Temp. Silicone Good Poor Excellent Good Poor
Conductive Silicone Good Poor Excellent Good Poor
Urethane Excellent Excellent Excellent Fair Poor
Mark Free Good Excellent Excellent Good Excellent

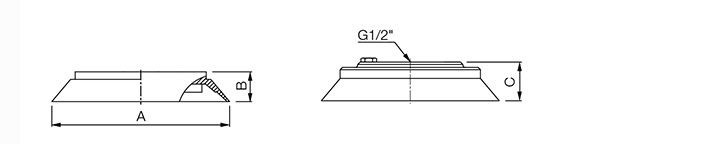

DIMENSIONS:

VF150

Rubber Part, 12F

Unit: mm
Legend A B C
Dimension 152 25.5 33

ORDER NUMBER:

Order Numbers

Part Number Description
Mesh Filter
VF150-NM-12F Flat suction cup, 150 mm, Nitrile (NBR), G1/2 female, Mesh filter
VF150-SM-12F Flat suction cup, 150 mm, Silicone, G1/2 female, Mesh filter
VF150-WSM-12F Flat suction cup, 150 mm, White silicone, G1/2 female, Mesh filter
VF150-WS(FDA)M-12F Flat suction cup, 150 mm, White silicone (FDA), G1/2 female, Mesh filter
VF150-HSM-12F Flat suction cup, 150 mm, High-temp silicone, G1/2 female, Mesh filter
VF150-CSM-12F Flat suction cup, 150 mm, Conductive silicone, G1/2 female, Mesh filter
VF150-UM-12F Flat suction cup, 150 mm, Urethane, G1/2 female, Mesh filter
VF150-AM-12F Flat suction cup, 150 mm, Mark free, G1/2 female, Mesh filter
No Mesh Filter
VF150-N-12F Flat suction cup, 150 mm, Nitrile (NBR), G1/2 female
VF150-S-12F Flat suction cup, 150 mm, Silicone, G1/2 female
VF150-WS-12F Flat suction cup, 150 mm, White silicone, G1/2 female
VF150-WS(FDA)-12F Flat suction cup, 150 mm, White silicone (FDA), G1/2 female
VF150-HS-12F Flat suction cup, 150 mm, High-temp silicone, G1/2 female
VF150-CS-12F Flat suction cup, 150 mm, Conductive silicone, G1/2 female
VF150-U-12F Flat suction cup, 150 mm, Urethane, G1/2 female
VF150-A-12F Flat suction cup, 150 mm, Mark free, G1/2 female
Rubber Part
VF150-N Flat suction cup, 150 mm, Nitrile (NBR)
VF150-S Flat suction cup, 150 mm, Silicone
VF150-WS Flat suction cup, 150 mm, White silicone
VF150-WS(FDA) Flat suction cup, 150 mm, White silicone (FDA)
VF150-HS Flat suction cup, 150 mm, High-temp silicone
VF150-CS Flat suction cup, 150 mm, Conductive silicone
VF150-U Flat suction cup, 150 mm, Urethane
VF150-A Flat suction cup, 150 mm, Mark free
Fitting
350-000-4015 Fitting, Mesh filter, G1/2 female
350-000-3615 Fitting, G1/2 female
