VAN ĐIỀU ÁP SERIES IR SMC - JAPAN
BỘ ĐIỀU ÁP SERIES IRV10A SMC - JAPAN
• Port size: Φ6, Φ8, Φ1/4, Φ5/16 • Fluid: Air • Air consumption: 0.6L/min (ANR) or Less • Ambient and fluid temperature: 5 to 60°C • Set pressure range: ~100 to 1.3KPa • Weight (kg): 0.125
BỘ ĐIỀU ÁP SERIES IRV10 SMC - JAPAN
• Port size: Φ6, Φ8, Φ1/4, Φ5/16 • Fluid: Air • Air consumption: 0.6L/min (ANR) or Less • Ambient and fluid temperature: 5 to 60°C • Set pressure range: ~100 to 1.3KPa • Weight (kg): 0.135
BỘ ĐIỀU ÁP SERIES IR3120 SMC - JAPAN
• Port size: 1/4, 3/8, 1/2 • Fluid: Air • Air consumption: 11.5L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.8 MPa • Weight (kg): 0.71
BỘ ĐIỀU ÁP SERIES IR20120 SMC - JAPAN
• Port size: 1/4 • Fluid: Air • Air consumption: 4.4L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.8 MPa • Weight (kg): 0.35
BỘ ĐIỀU ÁP SERIES IR3020 SMC - JAPAN
• Port size: 1/4, 3/8, 1/2 • Fluid: Air • Air consumption: 11.5L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.8 MPa • Weight (kg): 0.64
BỘ ĐIỀU ÁP SERIES IR3010 SMC - JAPAN
• Port size: 1/4, 3/8, 1/2 • Fluid: Air • Air consumption: 11.5L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.4 MPa • Weight (kg): 0.64
BỘ ĐIỀU ÁP SERIES IR3000 SMC - JAPAN
• Port size: 1/4, 3/8, 1/2 • Fluid: Air • Air consumption: 11.5L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.005 to 0.2 MPa • Weight (kg): 0.64
BỘ ĐIỀU ÁP SERIES IR2020 SMC - JAPAN
• Port size: 1/4 • Fluid: Air • Air consumption: 4.4L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.8 MPa • Weight (kg): 0.30
BỘ ĐIỀU ÁP SERIES IR2010 SMC - JAPAN
• Port size: 1/4 • Fluid: Air • Air consumption: 4.4L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.4 MPa • Weight (kg): 0.30

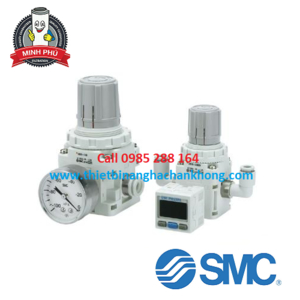

BỘ ĐIỀU ÁP SERIES IR2000 SMC - JAPAN
• Port size: 1/4 • Fluid: Air • Air consumption: 4.4L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.005 to 0.2 MPa • Weight (kg): 0.30
BỘ ĐIỀU ÁP SERIES IR1020 SMC - JAPAN
• Port size: 1/8 • Fluid: Air • Air consumption: 4.4L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.8 MPa • Weight (kg): 0.14
BỘ ĐIỀU ÁP SERIES IR1010 SMC - JAPAN
• Port size: 1/8 • Fluid: Air • Air consumption: 4.4L/min (ANR) or Less • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure range: 0.01 to 0.4 MPa • Weight (kg): 0.14
BỘ ĐIỀU ÁP SERIES IR1000 SMC - JAPAN
• Port size: 1/8 • Fluid: Air • Ambient and fluid temperature: -5 to 60°C • Max supply pressure: 1.0MPa • Min supply pressure: 0.05MPa • Set pressure rang: 0.005 to 0.2 MPa • Weight (kg): 0.14
