GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF75
VMECA - VF75
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 20,40 Kg @ -60 kPa
• Lực nâng (→): 11,22 Kg @ -60 kPa
• Thể tích: 20,0 cm³
• Đường kính: 77 mm
• Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút.
Ứng dụng:
• Carton
• Veneer tấm
• Nhưng tâm kim loại
• Hàng điện tử
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

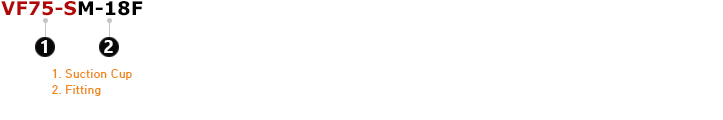

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VF75-N | Flat suction cup, 75 mm, Nitrile (NBR) |
| VF75-S | Flat suction cup, 75 mm, Silicone |
| VF75-WS | Flat suction cup, 75 mm, White silicone |
| VF75-WS(FDA) | Flat suction cup, 75 mm, White silicone (FDA) |
| VF75-HS | Flat suction cup, 75 mm, High-temp silicone |
| VF75-CS | Flat suction cup, 75 mm, Conductive silicone |
| VF75-U | Flat suction cup, 75 mm, Urethane |
| VF75-A | Flat suction cup, 75 mm, Mark free |
| VF75-PU | Flat suction cup, 75 mm, Polyurethane |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-14F | Fitting, Mesh filter, G1/4 female |
| M-38F | Fitting, Mesh filter, G3/8 female |
| M-12F | Fitting, Mesh filter, G1/2 female |
| 18F | Fitting, G1/8 female |
| 14F | Fitting, G1/4 female |
| 38F | Fitting, G3/8 female |
| 12F | Fitting, G1/2 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 77 | 20.0 | 8.16 | 20.4 | 27.55 | 6.12 | 11.22 | 14.28 |
2. Weight
| Part Number | Description | Weight (g) |
| VF75-N | Flat suction cup, 75 mm, Nitrile (NBR) | 47.7 |
| VF75-S | Flat suction cup, 75 mm, Silicone | 46.1 |
| VF75-WS | Flat suction cup, 75 mm, White silicone | 46.1 |
| VF75-WS(FDA) | Flat suction cup, 75 mm, White silicone (FDA) | 46.1 |
| VF75-HS | Flat suction cup, 75 mm, High temp silicone | 46.1 |
| VF75-CS | Flat suction cup, 75 mm, Conductive silicone | 46.2 |
| VF75-U | Flat suction cup, 75 mm, Urethane | 47.8 |
| VF75-A | Flat suction cup, 75 mm, Mark free | 53.5 |
| VF75-PU | Flat suction cup, 75 mm, Polyurethane | 45.7 |
| 350-000-4323 | Fitting, Mesh filter, G1/8 female | 59.8 |
| 350-000-3823 | Fitting, Mesh filter, G1/4 female | 57.3 |
| 350-000-3923 | Fitting, Mesh filter, G3/8 female | 55.5 |
| 350-000-4023 | Fitting, Mesh filter, G3/8 female | 51.9 |
| 350-000-3323 | Fitting, G1/8 female | 59.4 |
| 350-000-3423 | Fitting, G1/4 female | 56.9 |
| 350-000-3523 | Fitting, G3/8 female | 55.1 |
| 350-000-3623 | Fitting, G1/2 female | 51.5 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

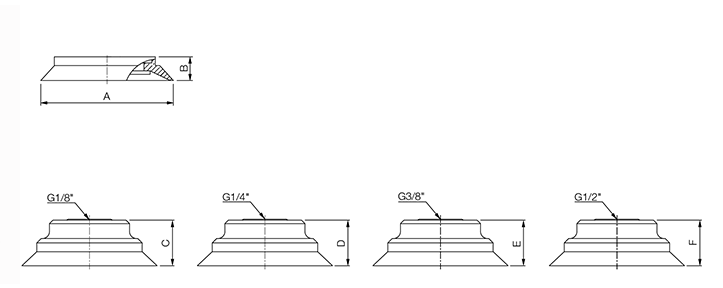

DIMENSIONS:
VF75
|
|
 |
| Unit: mm |
| Legend | A | B | C | D | E | F |
| Dimension | 77 | 13.5 | 26 | 26 | 26 | 26 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VF75-NM-18F | Flat suction cup, 75 mm, Nitrile (NBR), G1/8 female, Mesh filter |
| VF75-SM-18F | Flat suction cup, 75 mm, Silicone, G1/8 female, Mesh filter |
| VF75-WSM-18F | Flat suction cup, 75 mm, White silicone, G1/8 female, Mesh filter |
| VF75-WS(FDA)M-18F | Flat suction cup, 75 mm, White silicone (FDA), G1/8 female, Mesh filter |
| VF75-HSM-18F | Flat suction cup, 75 mm, High-temp silicone, G1/8 female, Mesh filter |
| VF75-CSM-18F | Flat suction cup, 75 mm, Conductive silicone, G1/8 female, Mesh filter |
| VF75-UM-18F | Flat suction cup, 75 mm, Urethane, G1/8 female, Mesh filter |
| VF75-AM-18F | Flat suction cup, 75 mm, Mark free, G1/8 female, Mesh filter |
| VF75-PUM-18F | Flat suction cup, 75 mm, Polyurethane, G1/8 female, Mesh filter |
| VF75-NM-14F | Flat suction cup, 75 mm, Nitrile (NBR), G1/4 female, Mesh filter |
| VF75-SM-14F | Flat suction cup, 75 mm, Silicone, G1/4 female, Mesh filter |
| VF75-WSM-14F | Flat suction cup, 75 mm, White silicone, G1/4 female, Mesh filter |
| VF75-WS(FDA)M-14F | Flat suction cup, 75 mm, White silicone (FDA), G1/4 female, Mesh filter |
| VF75-HSM-14F | Flat suction cup, 75 mm, High-temp silicone, G1/4 female, Mesh filter |
| VF75-CSM-14F | Flat suction cup, 75 mm, Conductive silicone, G1/4 female, Mesh filter |
| VF75-UM-14F | Flat suction cup, 75 mm, Urethane, G1/4 female, Mesh filter |
| VF75-AM-14F | Flat suction cup, 75 mm, Mark free, G1/4 female, Mesh filter |
| VF75-PUM-14F | Flat suction cup, 75 mm, Polyurethane, G1/4 female, Mesh filter |
| VF75-NM-38F | Flat suction cup, 75 mm, Nitrile (NBR), G3/8 female, Mesh filter |
| VF75-SM-38F | Flat suction cup, 75 mm, Silicone, G3/8 female, Mesh filter |
| VF75-WSM-38F | Flat suction cup, 75 mm, White silicone, G3/8 female, Mesh filter |
| VF75-WS(FDA)M-38F | Flat suction cup, 75 mm, White silicone (FDA), G3/8 female, Mesh filter |
| VF75-HSM-38F | Flat suction cup, 75 mm, High-temp silicone, G3/8 female, Mesh filter |
| VF75-CSM-38F | Flat suction cup, 75 mm, Conductive silicone, G3/8 female, Mesh filter |
| VF75-UM-38F | Flat suction cup, 75 mm, Urethane, G3/8 female, Mesh filter |
| VF75-AM-38F | Flat suction cup, 75 mm, Mark free, G3/8 female, Mesh filter |
| VF75-PUM-38F | Flat suction cup, 75 mm, Polyurethane, G3/8 female, Mesh filter |
| VF75-NM-12F | Flat suction cup, 75 mm, Nitrile (NBR), G1/2 female, Mesh filter |
| VF75-SM-12F | Flat suction cup, 75 mm, Silicone, G1/2 female, Mesh filter |
| VF75-WSM-12F | Flat suction cup, 75 mm, White silicone, G1/2 female, Mesh filter |
| VF75-WS(FDA)M-12F | Flat suction cup, 75 mm, White silicone (FDA), G1/2 female, Mesh filter |
| VF75-HSM-12F | Flat suction cup, 75 mm, High-temp silicone, G1/2 female, Mesh filter |
| VF75-CSM-12F | Flat suction cup, 75 mm, Conductive silicone, G1/2 female, Mesh filter |
| VF75-UM-12F | Flat suction cup, 75 mm, Urethane, G1/2 female, Mesh filter |
| VF75-AM-12F | Flat suction cup, 75 mm, Mark free, G1/2 female, Mesh filter |
| VF75-PUM-12F | Flat suction cup, 75 mm, Polyurethane, G1/2 female, Mesh filter |
| No Mesh Filter | |
| VF75-N-18F | Flat suction cup, 75 mm, Nitrile (NBR), G1/8 female |
| VF75-S-18F | Flat suction cup, 75 mm, Silicone, G1/8 female |
| VF75-WS-18F | Flat suction cup, 75 mm, White silicone, G1/8 female |
| VF75-WS(FDA)-18F | Flat suction cup, 75 mm, White silicone (FDA), G1/8 female |
| VF75-HS-18F | Flat suction cup, 75 mm, High-temp silicone, G1/8 female |
| VF75-CS-18F | Flat suction cup, 75 mm, Conductive silicone, G1/8 female |
| VF75-U-18F | Flat suction cup, 75 mm, Urethane, G1/8 female |
| VF75-A-18F | Flat suction cup, 75 mm, Mark free, G1/8 female |
| VF75-PU-18F | Flat suction cup, 75 mm, Polyurethane, G1/8 female |
| VF75-N-14F | Flat suction cup, 75 mm, Nitrile (NBR), G1/4 female |
| VF75-S-14F | Flat suction cup, 75 mm, Silicone, G1/4 female |
| VF75-WS-14F | Flat suction cup, 75 mm, White silicone, G1/4 female |
| VF75-WS(FDA)-14F | Flat suction cup, 75 mm, White silicone (FDA), G1/4 female |
| VF75-HS-14F | Flat suction cup, 75 mm, High-temp silicone, G1/4 female |
| VF75-CS-14F | Flat suction cup, 75 mm, Conductive silicone, G1/4 female |
| VF75-U-14F | Flat suction cup, 75 mm, Urethane, G1/4 female |
| VF75-A-14F | Flat suction cup, 75 mm, Mark free, G1/4 female |
| VF75-PU-14F | Flat suction cup, 75 mm, Polyurethane, G1/4 female |
| VF75-N-38F | Flat suction cup, 75 mm, Nitrile (NBR), G3/8 female |
| VF75-S-38F | Flat suction cup, 75 mm, Silicone, G3/8 female |
| VF75-WS-38F | Flat suction cup, 75 mm, White silicone, G3/8 female |
| VF75-WS(FDA)-38F | Flat suction cup, 75 mm, White silicone (FDA), G3/8 female |
| VF75-HS-38F | Flat suction cup, 75 mm, High-temp silicone, G3/8 female |
| VF75-CS-38F | Flat suction cup, 75 mm, Conductive silicone, G3/8 female |
| VF75-U-38F | Flat suction cup, 75 mm, Urethane, G3/8 female |
| VF75-A-38F | Flat suction cup, 75 mm, Mark free, G3/8 female |
| VF75-PU-38F | Flat suction cup, 75 mm, Polyurethane, G3/8 female |
| VF75-N-12F | Flat suction cup, 75 mm, Nitrile (NBR), G1/2 female |
| VF75-S-12F | Flat suction cup, 75 mm, Silicone, G1/2 female |
| VF75-WS-12F | Flat suction cup, 75 mm, White silicone, G1/2 female |
| VF75-WS(FDA)-12F | Flat suction cup, 75 mm, White silicone (FDA), G1/2 female |
| VF75-HS-12F | Flat suction cup, 75 mm, High-temp silicone, G1/2 female |
| VF75-CS-12F | Flat suction cup, 75 mm, Conductive silicone, G1/2 female |
| VF75-U-12F | Flat suction cup, 75 mm, Urethane, G1/2 female |
| VF75-A-12F | Flat suction cup, 75 mm, Mark free, G1/2 female, Mesh filter |
| VF75-PU-12F | Flat suction cup, 75 mm, Polyurethane, G1/2 female, Mesh filter |
| Rubber Part | |
| VF75-N | Flat suction cup, 75 mm, Nitrile (NBR) |
| VF75-S | Flat suction cup, 75 mm, Silicone |
| VF75-WS | Flat suction cup, 75 mm, White silicone |
| VF75-WS(FDA) | Flat suction cup, 75 mm, White silicone (FDA) |
| VF75-HS | Flat suction cup, 75 mm, High-temp silicone |
| VF75-CS | Flat suction cup, 75 mm, Conductive silicone |
| VF75-U | Flat suction cup, 75 mm, Urethane |
| VF75-A | Flat suction cup, 75 mm, Mark free |
| VF75-PU | Flat suction cup, 75 mm, Polyurethane |
| Fitting | |
| 350-000-4323 | Fitting, Mesh filter, G1/8 female |
| 350-000-3823 | Fitting, Mesh filter, G1/4 female |
| 350-000-3923 | Fitting, Mesh filter, G3/8 female |
| 350-000-4023 | Fitting, Mesh filter, G3/8 female |
| 350-000-3323 | Fitting, G1/8 female |
| 350-000-3423 | Fitting, G1/4 female |
| 350-000-3523 | Fitting, G3/8 female |
| 350-000-3623 | Fitting, G1/2 female |
