GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF300

Mã sản phẩm : VMECA - VF300

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 438 Kg @ -60 kPa • Lực nâng (→): 307 Kg @ -60 kPa • Âm lượng: 820,0 cm³ • Đường kính: 304 mm • Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút. Ứng dụng: • Carton • Veneer tấm • Nhưng tâm kim loại • Hàng điện tử

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

BUILD AND ORDER:

1. Suction Cup

Part Number	Description
VF300-N-34F	Flat suction cup, 300 mm, Nitrile (NBR), G3/4 female
VF300-S-34F	Flat suction cup, 300 mm, Silicone, G3/4 female
VF300-WS-34F	Flat suction cup, 300 mm, White silicone, G3/4 female
VF300-WS-34F(FDA)	Flat suction cup, 300 mm, White silicone (FDA), G3/4 female
VF300-HS-34F	Flat suction cup, 300 mm, High-temp silicone, G3/4 female
VF300-CS-34F	Flat suction cup, 300 mm, Conductive silicone, G3/4 female
VF300-U-34F	Flat suction cup, 300 mm, Urethane, G3/4 female
VF300-A-34F	Flat suction cup, 300 mm, Mark free, G3/4 female

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg			Life Force (→), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa	-20 kPa	-60 kPa	-90 kPa
300	820	163	438	653	135	307	476

2. Weight

Part Number	Description	Weight (g)
VF300-N-34F	Flat suction cup, 300 mm, Nitrile (NBR), G3/4 female	2677.0
VF300-S-34F	Flat suction cup, 300 mm, Silicone, G3/4 female	2646.4
VF300-WS-34F	Flat suction cup, 300 mm, White silicone, G3/4 female	2670.2
VF300-WS-34F(FDA)	Flat suction cup, 300 mm, White silicone (FDA), G3/4 female	2670.2
VF300-HS-34F	Flat suction cup, 300 mm, High-temp silicone, G3/4 female	2768.3
VF300-CS-34F	Flat suction cup, 300 mm, Conductive silicone, G3/4 female	2651.0
VF300-U-34F	Flat suction cup, 300 mm, Urethane, G3/4 female	2773.4
VF300-A-34F	Flat suction cup, 300 mm, Mark free, G3/4 female	2842.2

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
NBR	60	Black	-20 ~ 110
Silicone	55	Red	-70 ~ 200
White Silicone	55	Translucent White	-70 ~ 200
White Silicone (FDA)	55	Translucent White	-70 ~ 200
High Temp. Silicone	50	Blue	-70 ~ 280
Conductive Material	70	Smoky Black	-45 ~ 90
Urethane	60	Dark Green	0 ~ 100
Mark Free	75	Black	-10 ~ 100

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
NBR	Excellent	Excellent	Fair	Good	Fair
Silicone	Good	Poor	Excellent	Good	Poor
White Silicone	Good	Poor	Excellent	Good	Poor
High Temp. Silicone	Good	Poor	Excellent	Good	Poor
Conductive Silicone	Good	Poor	Excellent	Good	Poor
Urethane	Excellent	Excellent	Excellent	Fair	Poor
Mark Free	Good	Excellent	Excellent	Good	Excellent

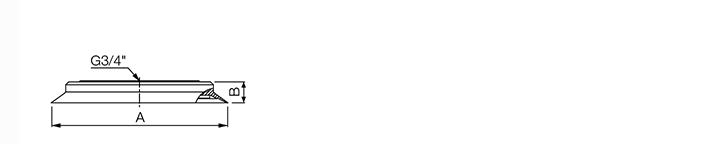

DIMENSIONS:

VF300

34F

Unit: mm

Legend	A	B
Dimension	304	36

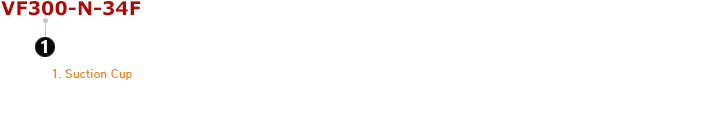

ORDER NUMBER:

Order Numbers

Part Number	Description
VF300-N-34F	Flat suction cup, 300 mm, Nitrile (NBR), G3/4 female
VF300-S-34F	Flat suction cup, 300 mm, Silicone, G3/4 female
VF300-WS-34F	Flat suction cup, 300 mm, White silicone, G3/4 female
VF300-WS-34F(FDA)	Flat suction cup, 300 mm, White silicone (FDA), G3/4 female
VF300-HS-34F	Flat suction cup, 300 mm, High-temp silicone, G3/4 female
VF300-CS-34F	Flat suction cup, 300 mm, Conductive silicone, G3/4 female
VF300-U-34F	Flat suction cup, 300 mm, Urethane, G3/4 female
VF300-A-34F	Flat suction cup, 300 mm, Mark free, G3/4 female
