GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF40
VMECA - VF40
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (→): 2,55 Kg @ -60 kPa
• Thể tích: 4,8 cm³
• Đường kính: 42 mm
• Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút.
Ứng dụng:
• Carton
• Veneer tấm
• Nhưng tâm kim loại
• Hàng điện tử
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

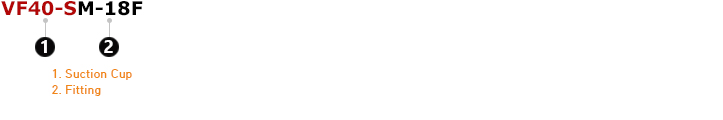

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VF40-N | Flat suction cup, 40 mm, Nitrile (NBR) |
| VF40-S | Flat suction cup, 40 mm, Silicone |
| VF40-WS | Flat suction cup, 40 mm, White silicone |
| VF40-WS(FDA) | Flat suction cup, 40 mm, White silicone (FDA) |
| VF40-HS | Flat suction cup, 40 mm, High-temp silicone |
| VF40-CS | Flat suction cup, 40 mm, Conductive silicone |
| VF40-U | Flat suction cup, 40 mm, Urethane |
| VF40-A | Flat suction cup, 40 mm, Mark free |
| VF40-PU | Flat suction cup, 40 mm, Polyurethane |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-18M | Fitting, Mesh filter, G1/8 male |
| M-14M | Fitting, Mesh filter, G1/4 male |
| 18F | Fitting, G1/8 female |
| 18FX | Fitting, G1/8 female, For silicone cup only |
| 18M | Fitting, G1/8 male |
| 14M | Fitting, G1/4 male |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| 18M-EV | Efficiency valve fitting, G1/8 male |
| 14M-EV | Efficiency valve fitting, G1/4 male |
| 18F-BV | Button valve fitting, G1/8 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 42 | 4.80 | 2.04 | 4.08 | 5.10 | 1.53 | 2.55 | 3.06 |
2. Weight
| Part Number | Description | Weight (g) |
| VF40-N | Flat suction cup, 40 mm, Nitrile (NBR) | 5.40 |
| VF40-S | Flat suction cup, 40 mm, Silicone | 5.16 |
| VF40-WS | Flat suction cup, 40 mm, White silicone | 5.16 |
| VF40-WS(FDA) | Flat suction cup, 40 mm, White silicone (FDA) | 5.16 |
| VF40-HS | Flat suction cup, 40 mm, High-temp silicone | 5.16 |
| VF40-CS | Flat suction cup, 40 mm, Conductive silicone | 5.24 |
| VF40-U | Flat suction cup, 40 mm, Urethane | 5.42 |
| VF40-A | Flat suction cup, 40 mm, Mark free | 6.56 |
| VF40-PU | Flat suction cup, 40 mm, Polyurethane | 4.93 |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female | 5.73 |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male | 5.04 |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male | 5.92 |
| 350-000-3311 | Fitting, G1/8 female | 5.68 |
| 350-000-3321 | Fitting, G1/8 female, For silicone cup only | 8.58 |
| 350-000-2304 | Fitting, G1/8 male | 4.93 |
| 350-000-3404 | Fitting, G1/4 male | 5.88 |
| 350-010-3311 | Efficiency valve fitting, G1/8 female | 5.63 |
| 350-010-2304 | Efficiency valve fitting, G1/8 male | 5.08 |
| 350-010-3404 | Efficiency valve fitting, G1/4 male | 6.03 |
| 350-020-3311 | Button valve fitting, G1/8 female | 5.86 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

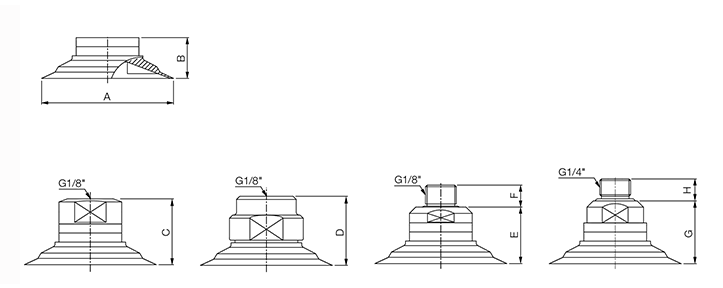

DIMENSIONS:
VF40
|
|
 |
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H |
| Dimension | 42 | 13 | 21 | 22 | 18 | 7 | 20 | 7 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VF40-NM-18F | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 female, Mesh filter |
| VF40-SM-18F | Flat suction cup, 40 mm, Silicone, G1/8 female, Mesh filter |
| VF40-WSM-18F | Flat suction cup, 40 mm, White silicone, G1/8 female, Mesh filter |
| VF40-WS(FDA)M-18F | Flat suction cup, 40 mm, White silicone (FDA), G1/8 female, Mesh filter |
| VF40-HSM-18F | Flat suction cup, 40 mm, High-temp silicone, G1/8 female, Mesh filter |
| VF40-CSM-18F | Flat suction cup, 40 mm, Conductive silicone, G1/8 female, Mesh filter |
| VF40-UM-18F | Flat suction cup, 40 mm, Urethane, G1/8 female, Mesh filter |
| VF40-AM-18F | Flat suction cup, 40 mm, Mark free, G1/8 female, Mesh filter |
| VF40-PUM-18F | Flat suction cup, 40 mm, Polyurethane, G1/8 female, Mesh filter |
| VF40-NM-18M | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 male, Mesh filter |
| VF40-SM-18M | Flat suction cup, 40 mm, Silicone, G1/8 male, Mesh filter |
| VF40-WSM-18M | Flat suction cup, 40 mm, White silicone, G1/8 male, Mesh filter |
| VF40-WS(FDA)M-18M | Flat suction cup, 40 mm, White silicone (FDA), G1/8 male, Mesh filter |
| VF40-HSM-18M | Flat suction cup, 40 mm, High-temp silicone, G1/8 male, Mesh filter |
| VF40-CSM-18M | Flat suction cup, 40 mm, Conductive silicone, G1/8 male, Mesh filter |
| VF40-UM-18M | Flat suction cup, 40 mm, Urethane, G1/8 male, Mesh filter |
| VF40-AM-18M | Flat suction cup, 40 mm, Mark free, G1/8 male, Mesh filter |
| VF40-PUM-18M | Flat suction cup, 40 mm, Polyurethane, G1/8 male, Mesh filter |
| VF40-NM-14M | Flat suction cup, 40 mm, Nitrile (NBR), G1/4 male, Mesh filter |
| VF40-SM-14M | Flat suction cup, 40 mm, Silicone, G1/4 male, Mesh filter |
| VF40-WSM-14M | Flat suction cup, 40 mm, White silicone, G1/4 male, Mesh filter |
| VF40-WS(FDA)M-14M | Flat suction cup, 40 mm, White silicone (FDA), G1/4 male, Mesh filter |
| VF40-HSM-14M | Flat suction cup, 40 mm, High-temp silicone, G1/4 male, Mesh filter |
| VF40-CSM-14M | Flat suction cup, 40 mm, Conductive silicone, G1/4 male, Mesh filter |
| VF40-UM-14M | Flat suction cup, 40 mm, Urethane, G1/4 male, Mesh filter |
| VF40-AM-14M | Flat suction cup, 40 mm, Mark free, G1/4 male, Mesh filter |
| VF40-PUM-14M | Flat suction cup, 40 mm, Polyurethane, G1/4 male, Mesh filter |
| No Mesh Filter | |
| VF40-N-18F | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 female |
| VF40-S-18F | Flat suction cup, 40 mm, Silicone, G1/8 female |
| VF40-WS-18F | Flat suction cup, 40 mm, White silicone, G1/8 female |
| VF40-WS(FDA)-18F | Flat suction cup, 40 mm, White silicone (FDA), G1/8 female |
| VF40-HS-18F | Flat suction cup, 40 mm, High-temp silicone, G1/8 female |
| VF40-CS-18F | Flat suction cup, 40 mm, Conductive silicone, G1/8 female |
| VF40-U-18F | Flat suction cup, 40 mm, Urethane, G1/8 female |
| VF40-A-18F | Flat suction cup, 40 mm, Mark free, G1/8 female |
| VF40-PU-18F | Flat suction cup, 40 mm, Polyurethane, G1/8 female |
| VF40-S-18FX | Flat suction cup, 40 mm, Silicone, G1/8 female, For silicone cup only |
| VF40-WS-18F | Flat suction cup, 40 mm, White silicone, G1/8 female, For silicone cup only |
| VF40-WS(FDA)-18FX | Flat suction cup, 40 mm, White silicone (FDA), G1/8 female, For silicone cup only |
| VF40-HS-18FX | Flat suction cup, 40 mm, High-temp silicone, G1/8 female, For silicone cup only |
| VF40-N-18M | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 male |
| VF40-S-18M | Flat suction cup, 40 mm, Silicone, G1/8 male |
| VF40-WS-18M | Flat suction cup, 40 mm, White silicone, G1/8 male |
| VF40-WS(FDA)-18M | Flat suction cup, 40 mm, White silicone (FDA), G1/8 male |
| VF40-HS-18M | Flat suction cup, 40 mm, High-temp silicone, G1/8 male |
| VF40-CS-18M | Flat suction cup, 40 mm, Conductive silicone, G1/8 male |
| VF40-U-18M | Flat suction cup, 40 mm, Urethane, G1/8 male |
| VF40-A-18M | Flat suction cup, 40 mm, Mark free, G1/8 male |
| VF40-PU-18M | Flat suction cup, 40 mm, Polyurethane, G1/8 male |
| VF40-N-14M | Flat suction cup, 40 mm, Nitrile (NBR), G1/4 male |
| VF40-S-14M | Flat suction cup, 40 mm, Silicone, G1/4 male |
| VF40-WS-14M | Flat suction cup, 40 mm, White silicone, G1/4 male |
| VF40-WS(FDA)-14M | Flat suction cup, 40 mm, White silicone (FDA), G1/4 male |
| VF40-HS-14M | Flat suction cup, 40 mm, High-temp silicone, G1/4 male |
| VF40-CS-14M | Flat suction cup, 40 mm, Conductive silicone, G1/4 male |
| VF40-U-14M | Flat suction cup, 40 mm, Urethane, G1/4 male |
| VF40-A-14M | Flat suction cup, 40 mm, Mark free, G1/4 male |
| VF40-PU-14M | Flat suction cup, 40 mm, Polyurethane, G1/4 male |
| Efficiency valve | |
| VF40-N-18F-EV | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 female, Efficiency valve |
| VF40-S-18F-EV | Flat suction cup, 40 mm, Silicone, G1/8 female, Efficiency valve |
| VF40-WS-18F-EV | Flat suction cup, 40 mm, White silicone, G1/8 female, Efficiency valve |
| VF40-WS(FDA)-18F-EV | Flat suction cup, 40 mm, White silicone (FDA), G1/8 female, Efficiency valve |
| VF40-HS-18F-EV | Flat suction cup, 40 mm, High-temp silicone, G1/8 female, Efficiency valve |
| VF40-CS-18F-EV | Flat suction cup, 40 mm, Conductive silicone, G1/8 female, Efficiency valve |
| VF40-U-18F-EV | Flat suction cup, 40 mm, Urethane, G1/8 female, Efficiency valve |
| VF40-A-18F-EV | Flat suction cup, 40 mm, Mark free, G1/8 female, Efficiency valve |
| VF40-PU-18F-EV | Flat suction cup, 40 mm, Polyurethane, G1/8 female, Efficiency valve |
| VF40-N-18M-EV | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 male, Efficiency valve |
| VF40-S-18M-EV | Flat suction cup, 40 mm, Silicone, G1/8 male, Efficiency valve |
| VF40-WS-18M-EV | Flat suction cup, 40 mm, White silicone, G1/8 male, Efficiency valve |
| VF40-WS(FDA)-18M-EV | Flat suction cup, 40 mm, White silicone (FDA), G1/8 male, Efficiency valve |
| VF40-HS-18M-EV | Flat suction cup, 40 mm, High-temp silicone, G1/8 male, Efficiency valve |
| VF40-CS-18M-EV | Flat suction cup, 40 mm, Conductive silicone, G1/8 male, Efficiency valve |
| VF40-U-18M-EV | Flat suction cup, 40 mm, Urethane, G1/8 male, Efficiency valve |
| VF40-A-18M-EV | Flat suction cup, 40 mm, Mark free, G1/8 male, Efficiency valve |
| VF40-PU-18M-EV | Flat suction cup, 40 mm, Polyurethane, G1/8 male, Efficiency valve |
| VF40-N-14M-EV | Flat suction cup, 40 mm, Nitrile (NBR), G1/4 male, Efficiency valve |
| VF40-S-14M-EV | Flat suction cup, 40 mm, Silicone, G1/4 male, Efficiency valve |
| VF40-WS-14M-EV | Flat suction cup, 40 mm, White silicone, G1/4 male, Efficiency valve |
| VF40-WS(FDA)-14M-EV | Flat suction cup, 40 mm, White silicone (FDA), G1/4 male, Efficiency valve |
| VF40-HS-14M-EV | Flat suction cup, 40 mm, High-temp silicone, G1/4 male, Efficiency valve |
| VF40-CS-14M-EV | Flat suction cup, 40 mm, Conductive silicone, G1/4 male, Efficiency valve |
| VF40-U-14M-EV | Flat suction cup, 40 mm, Urethane, G1/4 male, Efficiency valve |
| VF40-A-14M-EV | Flat suction cup, 40 mm, Mark free, G1/4 male, Efficiency valve |
| VF40-PU-14M-EV | Flat suction cup, 40 mm, Polyurethane, G1/4 male, Efficiency valve |
| Button Valve | |
| VF40-N-18F-BV | Flat suction cup, 40 mm, Nitrile (NBR), G1/8 female, Button valve |
| VF40-S-18F-BV | Flat suction cup, 40 mm, Silicone, G1/8 female, Button valve |
| VF40-WS-18F-BV | Flat suction cup, 40 mm, White silicone, G1/8 female, Button valve |
| VF40-WS(FDA)-18F-BV | Flat suction cup, 40 mm, White silicone (FDA), G1/8 female, Button valve |
| VF40-HS-18F-BV | Flat suction cup, 40 mm, High-temp silicone, G1/8 female, Button valve |
| VF40-CS-18F-BV | Flat suction cup, 40 mm, Conductive silicone, G1/8 female, Button valve |
| VF40-U-18F-BV | Flat suction cup, 40 mm, Urethane, G1/8 female, Button valve |
| VF40-A-18F-BV | Flat suction cup, 40 mm, Mark free, G1/8 female, Button valve |
| VF40-PU-18F-BV | Flat suction cup, 40 mm, Polyurethane, G1/8 female, Button valve |
| Rubber Part | |
| VF40-N | Flat suction cup, 40 mm, Nitrile (NBR) |
| VF40-S | Flat suction cup, 40 mm, Silicone |
| VF40-WS | Flat suction cup, 40 mm, White silicone |
| VF40-WS(FDA) | Flat suction cup, 40 mm, White silicone (FDA) |
| VF40-HS | Flat suction cup, 40 mm, High-temp silicone |
| VF40-CS | Flat suction cup, 40 mm, Conductive silicone |
| VF40-U | Flat suction cup, 40 mm, Urethane |
| VF40-A | Flat suction cup, 40 mm, Mark free |
| VF40-PU | Flat suction cup, 40 mm, Polyurethane |
| Fitting | |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male |
| 350-000-3311 | Fitting, G1/8 female |
| 350-000-3321 | Fitting, G1/8 female, For silicone cup only |
| 350-000-2304 | Fitting, G1/8 male |
| 350-000-3404 | Fitting, G1/4 male |
| 350-010-3311 | Efficiency valve fitting, G1/8 female |
| 350-010-2304 | Efficiency valve fitting, G1/8 male |
| 350-010-3404 | Efficiency valve fitting, G1/4 male |
| 350-020-3311 | Button valve fitting, G1/8 female |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
Sản phẩm cùng loại
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF300
0985.288.164
203 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF200
0985.288.164
201 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF150
0985.288.164
242 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF110
0985.288.164
199 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF90
0985.288.164
191 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF75
0985.288.164
209 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF50X2
0985.288.164
207 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF50
0985.288.164
205 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF30
0985.288.164
213 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF25
0985.288.164
220 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF20
0985.288.164
199 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF15
0985.288.164
213 lượt
