GIÁC HÚT CHÂN KHÔNG VMECA SERIES VF25
VMECA - VF25
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 1,98 Kg @ -60 kPa
• Lực nâng (→): 0,91 Kg @ -60 kPa
• Thể tích: 1,10 cm³
• Đường kính: 27 mm
• Một lực nâng tốt có thể đạt được trên các bề mặt phẳng để nâng song song và vuông góc. Vết kẹp bên trong lực hút giúp cải thiện ma sát giữa phần giữ và cốc hút.
Ứng dụng:
• Carton
• Veneer tấm
• Nhưng tâm kim loại
• Hàng điện tử
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

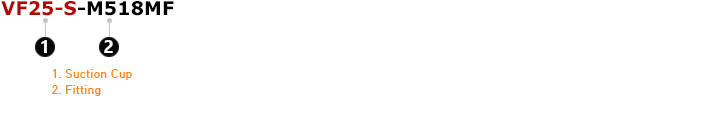

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VF25-N | Flat suction cup, 25 mm, Nitrile (NBR) |
| VF25-S | Flat suction cup, 25 mm, Silicone |
| VF25-WS | Flat suction cup, 25 mm, White silicone |
| VF25-WS(FDA) | Flat suction cup, 25 mm, White silicone (FDA) |
| VF25-HS | Flat suction cup, 25 mm, High-temp silicone |
| VF25-CS | Flat suction cup, 25 mm, Conductive silicone |
| VF25-U | Flat suction cup, 25 mm, Urethane |
| VF25-A | Flat suction cup, 25 mm, Mark free |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-M518MF | Fitting, Mesh filter, G1/8 male-M5 female |
| 18F | Fitting, G1/8 female |
| M518MF | Fitting, G1/8 male-M5 female |
| M518MFX | Fitting, G1/8 male-M5 female, For silicone cup only |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| M518MF-EV | Efficiency valve fitting, G1/8 Male-M5 female |
| 18F-BV | Button valve fitting, G1/8 female |
| M518MF-BV | Button valve fitting, G1/8 male-M5 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 27 | 1.10 | 0.91 | 1.98 | 2.55 | 0.81 | 0.91 | 1.02 |
2. Weight
| Part Number | Description | Weight (g) |
| VF25-N | Flat suction cup, 25 mm, Nitrile (NBR) | 1.63 |
| VF25-S | Flat suction cup, 25 mm, Silicone | 1.60 |
| VF25-WS | Flat suction cup, 25 mm, White silicone | 1.60 |
| VF25-WS(FDA) | Flat suction cup, 25 mm, White silicone (FDA) | 1.60 |
| VF25-HS | Flat suction cup, 25 mm, High-temp silicone | 1.60 |
| VF25-CS | Flat suction cup, 25 mm, Conductive silicone | 1.67 |
| VF25-U | Flat suction cup, 25 mm, Urethane | 1.62 |
| VF25-A | Flat suction cup, 25 mm, Mark free | 1.98 |
| 350-000-4310 | Fitting, Mesh filter, G1/8 female | 3.30 |
| 350-000-5209 | Fitting, Mesh filter, G1/8 male-M5 female | 1.92 |
| 350-000-3310 | Fitting, G1/8 female | 3.23 |
| 350-000-3209 | Fitting, G1/8 male-M5 female | 1.82 |
| 350-000-3229 | Fitting, G1/8 male-M5 female, For silicone material | 3.71 |
| 350-010-3310 | Efficiency valve fitting, G1/8 female | 3.34 |
| 350-010-4209 | Efficiency valve fitting, G1/8 Male-M5 female | 1.94 |
| 350-020-3310 | Button valve fitting, G1/8 female | 3.59 |
| 350-020-4209 | Button valve fitting, G1/8 male-M5 female | 2.24 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

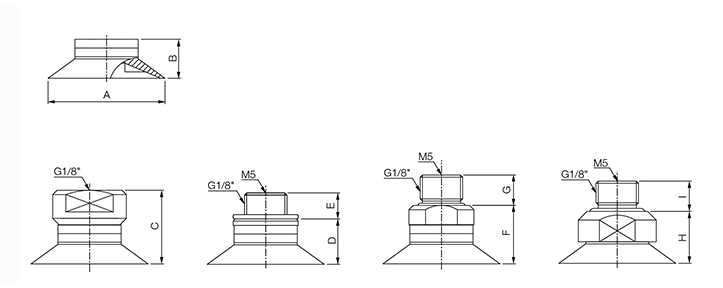

DIMENSIONS:
VF25
|
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I |
| Dimension | 27 | 9 | 17 | 10.5 | 6 | 13.5 | 7 | 12 | 7 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VF25-NM-18F | Flat suction cup, 25 mm, Nitrile (NBR), G1/8″ female, Mesh filter |
| VF25-SM-18F | Flat suction cup, 25 mm, Silicone, G1/8″ female, Mesh filter |
| VF25-WSM-18F | Flat suction cup, 25 mm, White silicone, G1/8″ female, Mesh filter |
| VF25-WS(FDA)M-18F | Flat suction cup, 25 mm, White silicone (FDA), G1/8″ female, Mesh filter |
| VF25-HSM-18F | Flat suction cup, 25 mm, High-temp silicone, G1/8″ female, Mesh filter |
| VF25-CSM-18F | Flat suction cup, 25 mm, Conductive silicone, G1/8″ female, Mesh filter |
| VF25-UM-18F | Flat suction cup, 25 mm, Urethane, G1/8″ female, Mesh filter |
| VF25-AM-18F | Flat suction cup, 25 mm, Mark free, G1/8″ female, Mesh filter |
| VF25-NM-M518MF | Flat suction cup, 25 mm, Nitrile (NBR), G1/8 male-M5 female, Mesh filter |
| VF25-SM-M518MF | Flat suction cup, 25 mm, Silicone, G1/8 male-M5 female, Mesh filter |
| VF25-WSM-M518MF | Flat suction cup, 25 mm, White silicone, G1/8 male-M5 female, Mesh filter |
| VF25-WS(FDA)M-M518MF | Flat suction cup, 25 mm, White silicone (FDA), G1/8 male-M5 female, Mesh filter |
| VF25-HSM-M518MF | Flat suction cup, 25 mm, High-temp silicone, G1/8 male-M5 female, Mesh filter |
| VF25-CSM-M518MF | Flat suction cup, 25 mm, Conductive silicone, G1/8 male-M5 female, Mesh filter |
| VF25-UM-M518MF | Flat suction cup, 25 mm, Urethane, G1/8 male-M5 female, Mesh filter |
| VF25-AM-M518MF | Flat suction cup, 25 mm, Mark free, G1/8 male-M5 female, Mesh filter |
| No Mesh Filter | |
| VF25-N-18F | Flat suction cup, 25 mm, Nitrile (NBR), G1/8″ female |
| VF25-S-18F | Flat suction cup, 25 mm, Silicone, G1/8″ female |
| VF25-WS-18F | Flat suction cup, 25 mm, White silicone, G1/8″ female |
| VF25-WS(FDA)-18F | Flat suction cup, 25 mm, White silicone (FDA), G1/8″ female |
| VF25-HS-18F | Flat suction cup, 25 mm, High-temp silicone, G1/8″ female |
| VF25-CS-18F | Flat suction cup, 25 mm, Conductive silicone, G1/8″ female |
| VF25-U-18F | Flat suction cup, 25 mm, Urethane, G1/8″ female |
| VF25-A-18F | Flat suction cup, 25 mm, Mark free, G1/8″ female |
| VF25-N-M518MF | Flat suction cup, 25 mm, Nitrile (NBR), G1/8 male-M5 female |
| VF25-S-M518MF | Flat suction cup, 25 mm, Silicone, G1/8 male-M5 female |
| VF25-WS-M518MF | Flat suction cup, 25 mm, White silicone, G1/8 male-M5 female |
| VF25-WS(FDA)-M518MF | Flat suction cup, 25 mm, White silicone (FDA), G1/8 male-M5 female |
| VF25-HS-M518MF | Flat suction cup, 25 mm, High-temp silicone, G1/8 male-M5 female |
| VF25-CS-M518MF | Flat suction cup, 25 mm, Conductive silicone, G1/8 male-M5 female |
| VF25-U-M518MF | Flat suction cup, 25 mm, Urethane, G1/8 male-M5 female |
| VF25-A-M518MF | Flat suction cup, 25 mm, Mark free, G1/8 male-M5 female |
| VF25-S-M518MFX | Flat cup, 25 mm, Silicone, G1/8 male-M5 female, For silicone cup only |
| VF25-WS-M518MFX | Flat cup, 25 mm, White silicone, G1/8 male-M5 female, For silicone cup only |
| VF25-WS(FDA)-M518MFX | Flat cup, 25 mm, White silicone (FDA), G1/8 male-M5 female, For silicone cup only |
| Efficiency valve | |
| VF25-N-18F-EV | Flat cup, 25 mm, Nitrile (NBR), G1/8″ female, Efficiency valve |
| VF25-S-18F-EV | Flat cup, 25 mm, Silicone, G1/8″ female, Efficiency valve |
| VF25-WS-18F-EV | Flat cup, 25 mm, White silicone, G1/8″ female, Efficiency valve |
| VF25-WS(FDA)-18F-EV | Flat cup, 25 mm, White silicone (FDA), G1/8″ female, Efficiency valve |
| VF25-HS-18F-EV | Flat cup, 25 mm, High-temp silicone, G1/8″ female, Efficiency valve |
| VF25-CS-18F-EV | Flat cup, 25 mm, Conductive silicone, G1/8″ female, Efficiency valve |
| VF25-U-18F-EV | Flat cup, 25 mm, Urethane, G1/8″ female, Efficiency valve |
| VF25-A-18F-EV | Flat cup, 25 mm, Mark free, G1/8″ female, Efficiency valve |
| VF25-N-M518MF-EV | Flat cup, 25 mm, Nitrile (NBR), G1/8 male-M5 female, Efficiency valve |
| VF25-S-M518MF-EV | Flat cup, 25 mm, Silicone, G1/8 male-M5 female, Efficiency valve |
| VF25-WS-M518MF-EV | Flat cup, 25 mm, White silicone, G1/8 male-M5 female, Efficiency valve |
| VF25-WS(FDA)-M518MF-EV | Flat cup, 25 mm, White silicone (FDA), G1/8 male-M5 female, Efficiency valve |
| VF25-HS-M518MF-EV | Flat cup, 25 mm, High-temp silicone, G1/8 male-M5 female, Efficiency valve |
| VF25-CS-M518MF-EV | Flat cup, 25 mm, Conductive silicone, G1/8 male-M5 female, Efficiency valve |
| VF25-U-M518MF-EV | Flat cup, 25 mm, Urethane, G1/8 male-M5 female, Efficiency valve |
| VF25-A-M518MF-EV | Flat cup, 25 mm, Mark free, G1/8 male-M5 female, Efficiency valve |
| Button Valve | |
| VF25-N-18F-BV | Flat cup, 25 mm, Nitrile (NBR), G1/8″ female, Button valve |
| VF25-S-18F-BV | Flat cup, 25 mm, Silicone, G1/8″ female, Button valve |
| VF25-WS-18F-BV | Flat cup, 25 mm, White silicone, G1/8″ female, Button valve |
| VF25-WS(FDA)-18F-BV | Flat cup, 25 mm, White silicone (FDA), G1/8″ female, Button valve |
| VF25-HS-18F-BV | Flat cup, 25 mm, High-temp silicone, G1/8″ female, Button valve |
| VF25-CS-18F-BV | Flat cup, 25 mm, Conductive silicone, G1/8″ female, Button valve |
| VF25-U-18F-BV | Flat cup, 25 mm, Urethane, G1/8″ female, Button valve |
| VF25-A-18F-BV | Flat cup, 25 mm, Mark free, G1/8″ female, Button valve |
| VF25-N-M518MF-BV | Flat cup, 25 mm, Nitrile (NBR), G1/8 male-M5 female, Button valve |
| VF25-S-M518MF-BV | Flat cup, 25 mm, Silicone, G1/8 male-M5 female, Button valve |
| VF25-WS-M518MF-BV | Flat cup, 25 mm, White silicone, G1/8 male-M5 female, Button valve |
| VF25-WS(FDA)-M518MF-BV | Flat cup, 25 mm, White silicone (FDA), G1/8 male-M5 female, Button valve |
| VF25-HS-M518MF-BV | Flat cup, 25 mm, High-temp silicone, G1/8 male-M5 female, Button valve |
| VF25-CS-M518MF-BV | Flat cup, 25 mm, Conductive silicone, G1/8 male-M5 female, Button valve |
| VF25-U-M518MF-BV | Flat cup, 25 mm, Urethane, G1/8 male-M5 female, Button valve |
| VF25-A-M518MF-BV | Flat cup, 25 mm, Mark free, G1/8 male-M5 female, Button valve |
| Rubber Part | |
| VF25-N | Flat suction cup, 25 mm, Nitrile (NBR) |
| VF25-S | Flat suction cup, 25 mm, Silicone |
| VF25-WS | Flat suction cup, 25 mm, White silicone |
| VF25-WS(FDA) | Flat suction cup, 25 mm, White silicone (FDA) |
| VF25-HS | Flat suction cup, 25 mm, High-temp silicone |
| VF25-CS | Flat suction cup, 25 mm, Conductive silicone |
| VF25-U | Flat suction cup, 25 mm, Urethane |
| VF25-A | Flat suction cup, 25 mm, Mark free |
| Fitting | |
| 350-000-4310 | Fitting, Mesh filter, G1/8 female |
| 350-000-5209 | Fitting, Mesh filter, G1/8 male-M5 female |
| 350-000-3310 | Fitting, G1/8 female |
| 350-000-3209 | Fitting, G1/8 male-M5 female |
| 350-000-3229 | Fitting, G1/8 male-M5 female, For silicone cup only |
| 350-010-3310 | Efficiency valve fitting, G1/8 female |
| 350-010-4209 | Efficiency valve fitting, G1/8 Male-M5 female |
| 350-020-3310 | Button valve fitting, G1/8 female |
| 350-020-4209 | Button valve fitting, G1/8 male-M5 female |
