GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB75B
VMECA - VB75B
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực lượng giữ (↑): 17,04 Kg @ -60 kPa
• Thể tích: 110 cm³
• Đường kính: 78 mm
• Tốt ở những khu vực có bề mặt hơi cong.
• Cốc thổi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi.
Ứng dụng:
• Thẻ
• Veneer tấm
• Vật liệu đóng gói
• Tấm nhựa
• Tấm màng mỏng
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

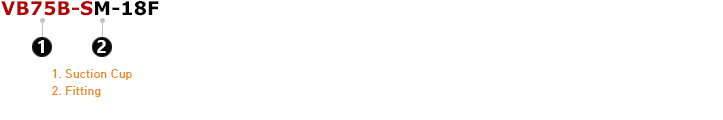

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VB75B-N | Single-bellows w/large cleats cup, 75 mm, Nitrile |
| VB75B-S | Single-bellows w/large cleats cup, 75 mm, Silicone |
| VB75B-WS | Single-bellows w/large cleats cup, 75 mm, White silicone |
| VB75B-WS(FDA) | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA) |
| VB75B-HS | Single-bellows w/large cleats cup, 75 mm, High-temp silicone |
| VB75B-CS | Single-bellows w/large cleats cup, 75 mm, Conductive |
| VB75B-U | Single-bellows w/large cleats cup, 75 mm, Urethane |
| VB75B-A | Single-bellows w/large cleats cup, 75 mm, Mark free |
| VB75B-PU | Single-bellows w/large cleats cup, 75 mm, Polyurethane |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8″ female |
| M-14F | Fitting, Mesh filter, G1/4″ female |
| M-38F | Fitting, Mesh filter, G3/8″ female |
| M-12F | Fitting, Mesh filter, G1/2″ female |
| 18F | Fitting, G1/8″ female |
| 14F | Fitting, G1/4″ female |
| 38F | Fitting, G3/8″ female |
| 12F | Fitting, G1/2″ female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Perpendicular (Kg) | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 78 | 110.00 | 7.65 | 17.04 | 23.06 |
2. Weight
| Part Number | Description | Weight (g) |
| VB75B-N | Single-bellows w/large cleats cup, 75 mm, Nitrile | 73.03 |
| VB75B-S | Single-bellows w/large cleats cup, 75 mm, Silicone | 66.56 |
| VB75B-WS | Single-bellows w/large cleats cup, 75 mm, White silicone | 66.46 |
| VB75B-WS(FDA) | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA) | 66.46 |
| VB75B-HS | Single-bellows w/large cleats cup, 75 mm, High-temp silicone | 66.49 |
| VB75B-CS | Single-bellows w/large cleats cup, 75 mm, Conductive | 66.58 |
| VB75B-U | Single-bellows w/large cleats cup, 75 mm, Urethane | 77.26 |
| VB75B-A | Single-bellows w/large cleats cup, 75 mm, Mark free | 80.81 |
| 350-000-4323 | Fitting, Mesh filter, G1/8″ female | 59.76 |
| 350-000-3823 | Fitting, Mesh filter, G1/4″ female | 57.32 |
| 350-000-3923 | Fitting, Mesh filter, G3/8″ female | 55.48 |
| 350-000-4023 | Fitting, Mesh filter, G1/2″ female | 51.90 |
| 350-000-3323 | Fitting, G1/8″ female | 59.36 |
| 350-000-3423 | Fitting, G1/4″ female | 56.92 |
| 350-010-3523 | Fitting, G3/8″ female | 55.08 |
| 350-010-3623 | Fitting, G1/2″ female | 51.50 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature ℃ |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

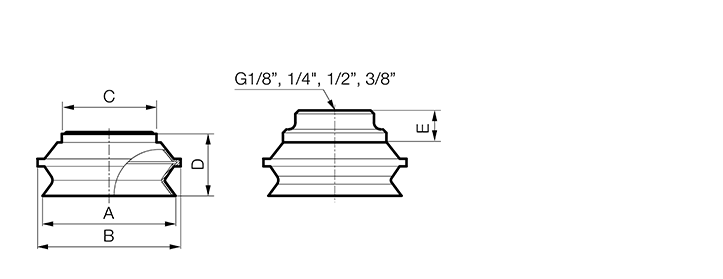

DIMENSIONS:
VB75B
|
|
| Unit: mm |
| Legend | A | B | C | D | E |
| Dimension | 78 | 83 | 55 | 36 | 14 |
ORDER NUMBER:
Spare Parts
| Part Number | Description |
| G1/8″ Female, Mesh Filter | |
| VB75B-NM-18F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G1/8″ female, Mesh filter |
| VB75B-SM-18F | Single-bellows w/large cleats cup, 75 mm, Silicone, G1/8″ female, Mesh filter |
| VB75B-WSM-18F | Single-bellows w/large cleats cup, 75 mm, White silicone, G1/8″ female, Mesh filter |
| VB75B-WS(FDA)M-18F | Single-bellows w/large cleats cup, 75 mm, White sil. (FDA), G1/8″ female, Mesh filter |
| VB75B-HSM-18F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G1/8″ female, Mesh filter |
| VB75B-CSM-18F | Single-bellows w/large cleats cup, 75 mm, Conductive, G1/8″ female, Mesh filter |
| VB75B-UM-18F | Single-bellows w/large cleats cup, 75 mm, Urethane, G1/8″ female, Mesh filter |
| VB75B-AM-18F | Single-bellows w/large cleats cup, 75 mm, Mark free, G1/8″ female, Mesh filter |
| VB75B-PUM-18F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G1/8″ female, Mesh filter |
| G1/4″ Female, Mesh Filter | |
| VB75B-NM-14F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G1/4″ female, Mesh filter |
| VB75B-SM-14F | Single-bellows w/large cleats cup, 75 mm, Silicone, G1/4″ female, Mesh filter |
| VB75B-WSM-14F | Single-bellows w/large cleats cup, 75 mm, White silicone, G1/4″ female, Mesh filter |
| VB75B-WS(FDA)M-14F | Single-bellows w/large cleats cup, 75 mm, White sil. (FDA), G1/4″ female, Mesh filter |
| VB75B-HSM-14F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G1/4″ female, Mesh filter |
| VB75B-CSM-14F | Single-bellows w/large cleats cup, 75 mm, Conductive, G1/4″ female, Mesh filter |
| VB75B-UM-14F | Single-bellows w/large cleats cup, 75 mm, Urethane, G1/4″ female, Mesh filter |
| VB75B-AM-14F | Single-bellows w/large cleats cup, 75 mm, Mark free, G1/4″ female, Mesh filter |
| VB75B-PUM-14F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G1/4″ female, Mesh filter |
| G3/8″ Female, Mesh Filter | |
| VB75B-NM-38F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G3/8″ female, Mesh filter |
| VB75B-SM-38F | Single-bellows w/large cleats cup, 75 mm, Silicone, G3/8″ female, Mesh filter |
| VB75B-WSM-38F | Single-bellows w/large cleats cup, 75 mm, White silicone, G3/8″ female, Mesh filter |
| VB75B-WS(FDA)M-38F | Single-bellows w/large cleats cup, 75 mm, White sil. (FDA), G3/8″ female, Mesh filter |
| VB75B-HSM-38F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G3/8″ female, Mesh filter |
| VB75B-CSM-38F | Single-bellows w/large cleats cup, 75 mm, Conductive, G3/8″ female, Mesh filter |
| VB75B-UM-38F | Single-bellows w/large cleats cup, 75 mm, Urethane, G3/8″ female, Mesh filter |
| VB75B-AM-38F | Single-bellows w/large cleats cup, 75 mm, Mark free, G3/8″ female, Mesh filter |
| VB75B-PUM-38F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G3/8″ female, Mesh filter |
| G1/2″ Female, Mesh Filter | |
| VB75B-NM-12F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G1/4″ female, Mesh filter |
| VB75B-SM-12F | Single-bellows w/large cleats cup, 75 mm, Silicone, G1/4″ female, Mesh filter |
| VB75B-WSM-12F | Single-bellows w/large cleats cup, 75 mm, White silicone, G1/4″ female, Mesh filter |
| VB75B-WS(FDA)M-12F | Single-bellows w/large cleats cup, 75 mm, White sil. (FDA), G1/4″ female, Mesh filter |
| VB75B-HSM-12F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G1/4″ female, Mesh filter |
| VB75B-CSM-12F | Single-bellows w/large cleats cup, 75 mm, Conductive, G1/4″ female, Mesh filter |
| VB75B-UM-12F | Single-bellows w/large cleats cup, 75 mm, Urethane, G1/4″ female, Mesh filter |
| VB75B-AM-12F | Single-bellows w/large cleats cup, 75 mm, Mark free, G1/4″ female, Mesh filter |
| VB75B-PUM-12F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G1/4″ female, Mesh filter |
| G1/8″ Female | |
| VB75B-N-18F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G1/8″ female |
| VB75B-S-18F | Single-bellows w/large cleats cup, 75 mm, Silicone, G1/8″ female |
| VB75B-WS-18F | Single-bellows w/large cleats cup, 75 mm, White silicone, G1/8″ female |
| VB75B-WS(FDA)-18F | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA), G1/8″ female |
| VB75B-HS-18F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G1/8″ female |
| VB75B-CS-18F | Single-bellows w/large cleats cup, 75 mm, Conductive, G1/8″ female |
| VB75B-U-18F | Single-bellows w/large cleats cup, 75 mm, Urethane, G1/8″ female |
| VB75B-A-18F | Single-bellows w/large cleats cup, 75 mm, Mark free, G1/8″ female |
| VB75B-PU-18F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G1/8″ female |
| G1/4″ Female | |
| VB75B-N-14F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G1/4″ female |
| VB75B-S-14F | Single-bellows w/large cleats cup, 75 mm, Silicone, G1/4″ female |
| VB75B-WS-14F | Single-bellows w/large cleats cup, 75 mm, White silicone, G1/4″ female |
| VB75B-WS(FDA)-14F | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA), G1/4″ female |
| VB75B-HS-14F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G1/4″ female |
| VB75B-CS-14F | Single-bellows w/large cleats cup, 75 mm, Conductive, G1/4″ female |
| VB75B-U-14F | Single-bellows w/large cleats cup, 75 mm, Urethane, G1/4″ female |
| VB75B-A-14F | Single-bellows w/large cleats cup, 75 mm, Mark free, G1/4″ female |
| VB75B-PU-14F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G1/4″ female |
| G3/8″ Female | |
| VB75B-N-38F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G3/8″ female |
| VB75B-S-38F | Single-bellows w/large cleats cup, 75 mm, Silicone, G3/8″ female |
| VB75B-WS-38F | Single-bellows w/large cleats cup, 75 mm, White silicone, G3/8″ female |
| VB75B-WS(FDA)-38F | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA), G3/8″ female |
| VB75B-HS-38F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G3/8″ female |
| VB75B-CS-38F | Single-bellows w/large cleats cup, 75 mm, Conductive, G3/8″ female |
| VB75B-U-38F | Single-bellows w/large cleats cup, 75 mm, Urethane, G3/8″ female |
| VB75B-A-38F | Single-bellows w/large cleats cup, 75 mm, Mark free, G3/8″ female |
| VB75B-PU-38F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G3/8″ female |
| G1/2″ Female | |
| VB75B-N-12F | Single-bellows w/large cleats cup, 75 mm, Nitrile, G1/4″ female |
| VB75B-S-12F | Single-bellows w/large cleats cup, 75 mm, Silicone, G1/4″ female |
| VB75B-WS-12F | Single-bellows w/large cleats cup, 75 mm, White silicone, G1/4″ female |
| VB75B-WS(FDA)-12F | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA), G1/4″ female |
| VB75B-HS-12F | Single-bellows w/large cleats cup, 75 mm, High-temp silicone, G1/4″ female |
| VB75B-CS-12F | Single-bellows w/large cleats cup, 75 mm, Conductive, G1/4″ female |
| VB75B-U-12F | Single-bellows w/large cleats cup, 75 mm, Urethane, G1/4″ female |
| VB75B-A-12F | Single-bellows w/large cleats cup, 75 mm, Mark free, G1/4″ female |
| VB75B-PU-12F | Single-bellows w/large cleats cup, 75 mm, Polyurethane, G1/4″ female |
| Rubber Part | |
| VB75B-N | Single-bellows w/large cleats cup, 75 mm, Nitrile |
| VB75B-S | Single-bellows w/large cleats cup, 75 mm, Silicone |
| VB75B-WS | Single-bellows w/large cleats cup, 75 mm, White silicone |
| VB75B-WS(FDA) | Single-bellows w/large cleats cup, 75 mm, White silicone (FDA) |
| VB75B-HS | Single-bellows w/large cleats cup, 75 mm, High-temp silicone |
| VB75B-CS | Single-bellows w/large cleats cup, 75 mm, Conductive |
| VB75B-U | Single-bellows w/large cleats cup, 75 mm, Urethane |
| VB75B-A | Single-bellows w/large cleats cup, 75 mm, Mark free |
| Fitting | |
| 350-000-4323 | Fitting, Mesh filter, G1/8″ female |
| 350-000-3823 | Fitting, Mesh filter, G1/4″ female |
| 350-000-3923 | Fitting, Mesh filter, G3/8″ female |
| 350-000-4023 | Fitting, Mesh filter, G1/2″ female |
| 350-000-3323 | Fitting, G1/8″ female |
| 350-000-3423 | Fitting, G1/4″ female |
| 350-010-3523 | Fitting, G3/8″ female |
| 350-010-3623 | Fitting, G1/2″ female |
