GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB110B

Mã sản phẩm : VMECA - VB110B

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực lượng giữ: (↑): 35,0 Kg @ -60 kPa • Thể tích: 310 cm³ • Đường kính: 115 mm • Tốt ở những khu vực có bề mặt hơi cong. • Cốc thổi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi. Ứng dụng: • Thẻ • Veneer tấm • Vật liệu đóng gói • Tấm nhựa • Tấm màng mỏng

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

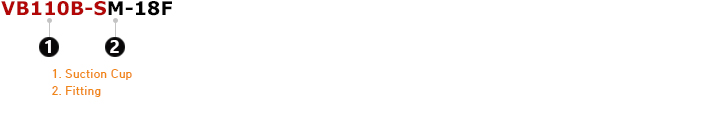

BUILD AND ORDER:

1. Suction Cup

Symbol	Description
VB110B-N	Single-bellows w/large cleats cup, 110 mm, Nitrile
VB110B-S	Single-bellows w/large cleats cup, 110 mm, Silicone
VB110B-WS	Single-bellows w/large cleats cup, 110 mm, White silicone
VB110B-WS(FDA)	Single-bellows w/large cleats cup, 110 mm, White silicone (FDA)
VB110B-HS	Single-bellows w/large cleats cup, 110 mm, High-temp silicone
VB110B-CS	Single-bellows w/large cleats cup, 110 mm, Conductive
VB110B-U	Single-bellows w/large cleats cup, 110 mm, Urethane
VB110B-A	Single-bellows w/large cleats cup, 110 mm, Mark free

2. Fitting

Symbol	Description
Blank	No fitting
M-12F	Fitting, Mesh filter, G1/2″ female
12F	Fitting, G1/2″ female

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa
115	310.00	13.97	35.00	47.04

2. Weight

Part Number	Description	Weight (g)
VB110B-N	Single-bellows w/large cleats cup, 110 mm, Nitrile	180.68
VB110B-S	Single-bellows w/large cleats cup, 110 mm, Silicone	172.66
VB110B-WS	Single-bellows w/large cleats cup, 110 mm, White silicone	174.87
VB110B-WS(FDA)	Single-bellows w/large cleats cup, 110 mm, White silicone (FDA)	174.87
VB110B-HS	Single-bellows w/large cleats cup, 110 mm, High-temp silicone	117.76
VB110B-CS	Single-bellows w/large cleats cup, 110 mm, Conductive	117.71
VB110B-U	Single-bellows w/large cleats cup, 110 mm, Urethane	180.66
VB110B-A	Single-bellows w/large cleats cup, 110 mm, Mark free	130.22
350-000-4014	Fitting, Mesh filter, G1/2″ female	104.50
350-000-3614	Fitting, G1/2″ female	103.70

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
NBR	60	Black	-20 ~ 110
Silicone	55	Red	-70 ~ 200
White Silicone	55	Translucent White	-70 ~ 200
White Silicone (FDA)	55	Translucent White	-70 ~ 200
High Temp. Silicone	50	Blue	-70 ~ 280
Conductive Material	70	Smoky Black	-45 ~ 90
Urethane	60	Dark Green	0 ~ 100
Mark Free	75	Smoky Black	-10 ~ 100

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
NBR	Excellent	Excellent	Fair	Good	Fair
Silicone	Good	Poor	Excellent	Good	Poor
White Silicone	Good	Poor	Excellent	Good	Poor
High Temp. Silicone	Good	Poor	Excellent	Good	Poor
Conductive Silicone	Good	Poor	Excellent	Good	Poor
Urethane	Excellent	Excellent	Excellent	Fair	Poor
Mark Free	Good	Excellent	Excellent	Good	Excellent

DIMENSIONS:

VB110B

Rubber Part, 12F

Unit: mm

Legend	A	B	C	D	E
Dimension	115	124	85	51.4	15

ORDER NUMBER:

Spare Parts

Part Number	Description
G1/2″ Female, Mesh Filter
VB110B-NM-12F	Single-bellows w/large cleats cup, 110 mm, Nitrile, G1/4″ female, Mesh filter
VB110B-SM-12F	Single-bellows w/large cleats cup, 110 mm, Silicone, G1/4″ female, Mesh filter
VB110B-WSM-12F	Single-bellows w/large cleats cup, 110 mm, White sil, G1/4″ female, Mesh filter
VB110B-WS(FDA)M-12F	Single-bellows w/large cleats cup, 110 mm, White sil (FDA), G1/4″ female, Mesh filter
VB110B-HSM-12F	Single-bellows w/large cleats cup, 110 mm, High-temp sil, G1/4″ female, Mesh filter
VB110B-CSM-12F	Single-bellows w/large cleats cup, 110 mm, Conductive, G1/4″ female, Mesh filter
VB110B-UM-12F	Single-bellows w/large cleats cup, 110 mm, Urethane, G1/4″ female, Mesh filter
VB110B-AM-12F	Single-bellows w/large cleats cup, 110 mm, Mark free, G1/4″ female, Mesh filter
G1/2″ Female
VB110B-N-12F	Single-bellows w/large cleats cup, 110 mm, Nitrile, G1/4″ female
VB110B-S-12F	Single-bellows w/large cleats cup, 110 mm, Silicone, G1/4″ female
VB110B-WS-12F	Single-bellows w/large cleats cup, 110 mm, White sil, G1/4″ female
VB110B-WS(FDA)-12F	Single-bellows w/large cleats cup, 110 mm, White sil (FDA), G1/4″ female
VB110B-HS-12F	Single-bellows w/large cleats cup, 110 mm, High-temp sil, G1/4″ female
VB110B-CS-12F	Single-bellows w/large cleats cup, 110 mm, Conductive, G1/4″ female
VB110B-U-12F	Single-bellows w/large cleats cup, 110 mm, Urethane, G1/4″ female
VB110B-A-12F	Single-bellows w/large cleats cup, 110 mm, Mark free, G1/4″ female
Rubber Part
VB110B-N	Single-bellows suction cup, 110 mm, Nitrile
VB110B-S	Single-bellows suction cup, 110 mm, Silicone
VB110B-WS	Single-bellows suction cup, 110 mm, White sil
VB110B-WS(FDA)	Single-bellows suction cup, 110 mm, White sil (FDA)
VB110B-HS	Single-bellows suction cup, 110 mm, High-temp sil
VB110B-CS	Single-bellows suction cup, 110 mm, Conductive
VB110B-U	Single-bellows suction cup, 110 mm, Urethane
VB110B-A	Single-bellows suction cup, 110 mm, Mark free
Fitting
350-000-4014	Fitting, Mesh filter, G1/2″ female
350-000-3614	Fitting, G1/2″ female
