GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB15

Mã sản phẩm : VMECA - VB15

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 0,60 Kg @ -60 kPa • Thể tích: 1,10 cm³ • Đường kính: 15,5 mm • Tốt ở những khu vực có bề mặt hơi cong. • Cốc thổi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi. Ứng dụng: • Thẻ • Veneer tấm • Vật liệu đóng gói • Tấm nhựa • Tấm màng mỏng

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

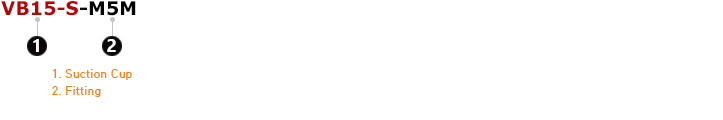

BUILD AND ORDER:

1. Suction Cup

Symbol	Description
VB15-N	Single-bellows suction cup, 15 mm, Nitrile
VB15-S	Single-bellows suction cup, 15 mm, Silicone
VB15-WS	Single-bellows suction cup, 15 mm, White silicone
VB15-WS(FDA)	Single-bellows suction cup, 15 mm, White silicone (FDA)
VB15-HS	Single-bellows suction cup, 15 mm, High-temp silicone
VB15-CS	Single-bellows suction cup, 15 mm, Conductive
VB15-U	Single-bellows suction cup, 15 mm, Urethane
VB15-A	Single-bellows suction cup, 15 mm, Mark free
VB15-PU	Single-bellows suction cup, 15 mm, Polyurethane

2. Fitting

Symbol	Description
Blank	No fitting
M5M	Fitting, M5 male
M5M-EV	Efficiency valve fitting, M5 male

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa
15.5	1.10	0.29	0.60	0.90

2. Weight

Part Number	Description	Weight (g)
VB15-N	Single-bellows suction cup, 15 mm, Nitrile	1.42
VB15-S	Single-bellows suction cup, 15 mm, Silicone	1.23
VB15-WS	Single-bellows suction cup, 15 mm, White silicone	1.27
VB15-WS(FDA)	Single-bellows suction cup, 15 mm, White silicone (FDA)	1.27
VB15-HS	Single-bellows suction cup, 15 mm, High-temp silicone	1.29
VB15-CS	Single-bellows suction cup, 15 mm, Conductive	1.39
VB15-U	Single-bellows suction cup, 15 mm, Urethane	1.36
VB15-A	Single-bellows suction cup, 15 mm, Mark free	1.65
VB15-PU	Single-bellows suction cup, 15 mm, Polyurethane	1.24
350-000-3102	Fitting, M5 male	2.52
350-010-3102	Efficiency valve fitting, M5 male	2.63

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
NBR	60	Black	-20 ~ 110
Silicone	55	Red	-70 ~ 200
White Silicone	55	Translucent White	-70 ~ 200
White Silicone (FDA)	55	Translucent White	-70 ~ 200
High Temp. Silicone	50	Blue	-70 ~ 280
Conductive Material	70	Smoky Black	-45 ~ 90
Urethane	60	Dark Green	0 ~ 100
Mark Free	75	Smoky Black	-10 ~ 100

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
NBR	Excellent	Excellent	Fair	Good	Fair
Silicone	Good	Poor	Excellent	Good	Poor
White Silicone	Good	Poor	Excellent	Good	Poor
High Temp. Silicone	Good	Poor	Excellent	Good	Poor
Conductive Silicone	Good	Poor	Excellent	Good	Poor
Urethane	Excellent	Excellent	Excellent	Fair	Poor
Mark Free	Good	Excellent	Excellent	Good	Excellent

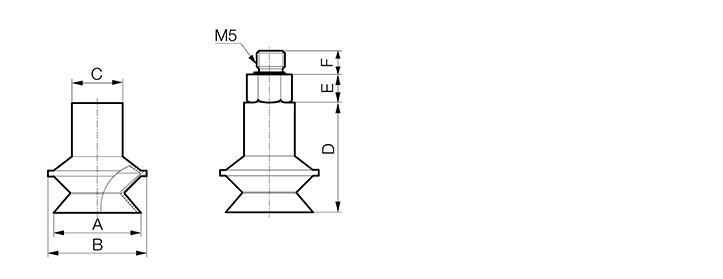

DIMENSIONS:

VB15

Rubber Part, M5M

Unit: mm

Legend	A	B	C	D	E	F
Dimension	15.5	17.5	9	19.5	4	4.2

ORDER NUMBER:

Part Numbers

Part Number	Description
M5 Male
VB15-N-M5M	Single-bellows suction cup, 15 mm, Nitrile, M5 male
VB15-S-M5M	Single-bellows suction cup, 15 mm, Silicone, M5 male
VB15-WS-M5M	Single-bellows suction cup, 15 mm, White silicone, M5 male
VB15-WS(FDA)-M5M	Single-bellows suction cup, 15 mm, White silicone (FDA), M5 male
VB15-HS-M5M	Single-bellows suction cup, 15 mm, High-temp silicone, M5 male
VB15-CS-M5M	Single-bellows suction cup, 15 mm, Conductive, M5 male
VB15-U-M5M	Single-bellows suction cup, 15 mm, Urethane, M5 male
VB15-A-M5M	Single-bellows suction cup, 15 mm, Mark free, M5 male,
VB15-PU-M5M	Single-bellows suction cup, 15 mm, Polyurethane, M5 male
M5 Male, Efficiency Valve
VB15-N-M5M-EV	Single-bellows suction cup, 15 mm, Nitrile, M5 male, Efficiency valve
VB15-S-M5M-EV	Single-bellows suction cup, 15 mm, Silicone, M5 male, Efficiency valve
VB15-WS-M5M-EV	Single-bellows suction cup, 15 mm, White silicone, M5 male, Efficiency valve
VB15-WS(FDA)-M5M-EV	Single-bellows suction cup, 15 mm, White silicone (FDA), M5 male, Efficiency valve
VB15-HS-M5M-EV	Single-bellows suction cup, 15 mm, High-temp silicone, M5 male, Efficiency valve
VB15-CS-M5M-EV	Single-bellows suction cup, 15 mm, Conductive, M5 male, Efficiency valve
VB15-U-M5M-EV	Single-bellows suction cup, 15 mm, Urethane, M5 male, Efficiency valve
VB15-A-M5M-EV	Single-bellows suction cup, 15 mm, Mark free, M5 male, Efficiency valve
VB15-PU-M5M-EV	Single-bellows suction cup, 15 mm, Polyurethane, Efficiency valve
Rubber Part
VB15-N	Single-bellows suction cup, 15 mm, Nitrile
VB15-S	Single-bellows suction cup, 15 mm, Silicone
VB15-WS	Single-bellows suction cup, 15 mm, White silicone
VB15-WS(FDA)	Single-bellows suction cup, 15 mm, White silicone (FDA)
VB15-HS	Single-bellows suction cup, 15 mm, High-temp silicone
VB15-CS	Single-bellows suction cup, 15 mm, Conductive
VB15-U	Single-bellows suction cup, 15 mm, Urethane
VB15-A	Single-bellows suction cup, 15 mm, Mark free
VB15-PU	Single-bellows suction cup, 15 mm, Polyurethane
Fitting
350-000-3102	Fitting, M5 male
350-010-3102	Efficiency valve fitting, M5 male
