GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB50
VMECA - VB50
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 6,63 Kg @ -60 kPa
• Thể tích: 32 cm³
• Đường kính: 53 mm
• Tốt ở những khu vực có bề mặt hơi cong.
• Cốc thổi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi.
Ứng dụng:
• Thẻ
• Veneer tấm
• Vật liệu đóng gói
• Tấm nhựa
• Tấm màng mỏng
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

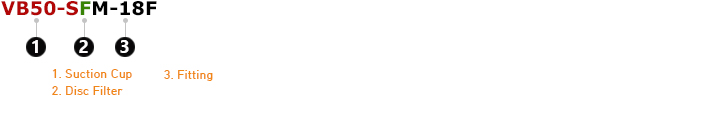

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VB50-N | Single-bellows suction cup, 50 mm, Nitrile |
| VB50-S | Single-bellows suction cup, 50 mm, Silicone |
| VB50-WS | Single-bellows suction cup, 50 mm, White silicone |
| VB50-WS(FDA) | Single-bellows suction cup, 50 mm, White silicone (FDA) |
| VB50-HS | Single-bellows suction cup, 50 mm, High-temp silicone |
| VB50-CS | Single-bellows suction cup, 50 mm, Conductive |
| VB50-U | Single-bellows suction cup, 50 mm, Urethane |
| VB50-A | Single-bellows suction cup, 50 mm, Mark free |
| VB50-PU | Single-bellows suction cup, 50 mm, Polyurethane |
2. Disc Filter
| Symbol | Description |
| Blank | No fitting |
| F | Disc filter |
3. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-14M | Fitting, Mesh filter, G1/4 male |
| M-38M | Fitting, Mesh filter, G3/8 male |
| 18F | Fitting, G1/8 female |
| 14M | Fitting, G1/4 male |
| 38M | Fitting, G3/8 male |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| 14M-EV | Efficiency valve fitting, G1/4 male |
| 38M-EV | Efficiency valve fitting, G3/8 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 53 | 32 | 3.36 | 6.63 | 8.36 |
2. Weight
| Part Number | Description | Weight (g) |
| VB50-N | Single-bellows suction cup, 50 mm, Nitrile | 21.76 |
| VB50-S | Single-bellows suction cup, 50 mm, Silicone | 20.31 |
| VB50-WS | Single-bellows suction cup, 50 mm, White silicone | 20.31 |
| VB50-WS(FDA) | Single-bellows suction cup, 50 mm, White silicone (FDA) | 20.31 |
| VB50-HS | Single-bellows suction cup, 50 mm, High-temp silicone | 20.31 |
| VB50-CS | Single-bellows suction cup, 50 mm, Conductive | 20.38 |
| VB50-U | Single-bellows suction cup, 50 mm, Urethane | 21.76 |
| VB50-A | Single-bellows suction cup, 50 mm, Mark free | 26.08 |
| VB50-PU | Single-bellows suction cup, 50 mm, Polyurethane | 22.36 |
| VTFE-B50 | Disc filter, Polyethylene | 1.38 |
| 350-000-4312 | Fitting, Mesh filter, G1/8 female | 14.58 |
| 350-000-3805 | Fitting, Mesh filter, G1/4 male | 14.42 |
| 350-000-3905 | Fitting, Mesh filter, G3/8 male | 17.75 |
| 350-000-3312 | Fitting, G1/8 female | 14.47 |
| 350-000-3405 | Fitting, G1/4 male | 18.14 |
| 350-000-3505 | Fitting, G3/8 male | 14.18 |
| 350-010-3312 | Efficiency valve fitting, G1/8 female | 15.81 |
| 350-010-3405 | Efficiency valve fitting, G1/4 male | 14.38 |
| 350-010-3505 | Efficiency valve fitting, G3/8 male | 17.53 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Smoky Black | -10 ~ 100 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

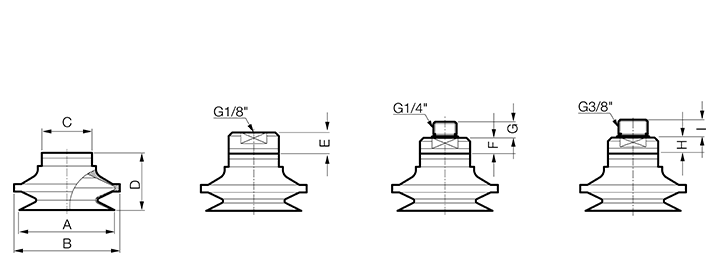

DIMENSIONS:
VB50
|
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I |
| Dimension | 53 | 58 | 28 | 32 | 12 | 9 | 9 | 9 | 10 |
ORDER NUMBER:
Part Numbers
| Part Number | Description |
| G1/8″ Female, Mesh Filter | |
| VB50-NM-18F | Single-bellows cup, 50 mm, Nitrile, G1/8″ female, Mesh filter |
| VB50-SM-18F | Single-bellows cup, 50 mm, Silicone, G1/8″ female, Mesh filter |
| VB50-WSM-18F | Single-bellows cup, 50 mm, White silicone, G1/8″ female, Mesh filter |
| VB50-WS(FDA)M-18F | Single-bellows cup, 50 mm, White silicone (FDA), G1/8″ female, Mesh filter |
| VB50-HSM-18F | Single-bellows cup, 50 mm, High-temp silicone, G1/8″ female, Mesh filter |
| VB50-CSM-18F | Single-bellows cup, 50 mm, Conductive, G1/8″ female, Mesh filter |
| VB50-UM-18F | Single-bellows cup, 50 mm, Urethane, G1/8″ female, Mesh filter |
| VB50-AM-18F | Single-bellows cup, 50 mm, Mark free, G1/8″ female, Mesh filter |
| VB50-PUM-18F | Single-bellows cup, 50 mm, Polyurethane, G1/8″ female, Mesh filter |
| G1/4″ Male, Mesh Filter | |
| VB50-NM-14M | Single-bellows cup, 50 mm, Nitrile, G1/4″ male, Mesh filter |
| VB50-SM-14M | Single-bellows cup, 50 mm, Silicone, G1/4″ male, Mesh filter |
| VB50-WSM-14M | Single-bellows cup, 50 mm, White silicone, G1/4″ male, Mesh filter |
| VB50-WS(FDA)M-14M | Single-bellows cup, 50 mm, White silicone (FDA), G1/4″ male, Mesh filter |
| VB50-HSM-14M | Single-bellows cup, 50 mm, High-temp silicone, G1/4″ male, Mesh filter |
| VB50-CSM-14M | Single-bellows cup, 50 mm, Conductive, G1/4″ male, Mesh filter |
| VB50-UM-14M | Single-bellows cup, 50 mm, Urethane, G1/4″ male, Mesh filter |
| VB50-AM-14M | Single-bellows cup, 50 mm, Mark free, G1/4″ male, Mesh filter |
| VB50-PUM-14M | Single-bellows cup, 50 mm, Polyurethane, G1/4″ male, Mesh filter |
| G3/8″ Male, Mesh Filter | |
| VB50-NM-38M | Single-bellows cup, 50 mm, Nitrile, G3/8″ male, Mesh filter |
| VB50-SM-38M | Single-bellows cup, 50 mm, Silicone, G3/8″ male, Mesh filter |
| VB50-WSM-38M | Single-bellows cup, 50 mm, White silicone, G3/8″ male, Mesh filter |
| VB50-WS(FDA)M-38M | Single-bellows cup, 50 mm, White silicone (FDA), G3/8″ male, Mesh filter |
| VB50-HSM-38M | Single-bellows cup, 50 mm, High-temp silicone, G3/8″ male, Mesh filter |
| VB50-CSM-38M | Single-bellows cup, 50 mm, Conductive, G3/8″ male, Mesh filter |
| VB50-UM-38M | Single-bellows cup, 50 mm, Urethane, G3/8″ male, Mesh filter |
| VB50-AM-38M | Single-bellows cup, 50 mm, Mark free, G3/8″ male, Mesh filter |
| VB50-PUM-38M | Single-bellows cup, 50 mm, Polyurethane, G3/8″ male, Mesh filter |
| G1/8″ Female | |
| VB50-N-18F | Single-bellows cup, 50 mm, Nitrile, G1/8″ female |
| VB50-S-18F | Single-bellows cup, 50 mm, Silicone, G1/8″ female |
| VB50-WS-18F | Single-bellows cup, 50 mm, White silicone, G1/8″ female |
| VB50-WS(FDA)-18F | Single-bellows cup, 50 mm, White silicone (FDA), G1/8″ female |
| VB50-HS-18F | Single-bellows cup, 50 mm, High-temp silicone, G1/8″ female |
| VB50-CS-18F | Single-bellows cup, 50 mm, Conductive, G1/8″ female |
| VB50-U-18F | Single-bellows cup, 50 mm, Urethane, G1/8″ female |
| VB50-A-18F | Single-bellows cup, 50 mm, Mark free, G1/8″ female |
| VB50-PU-18F | Single-bellows cup, 50 mm, Polyurethane, G1/8″ female |
| G1/4″ Male | |
| VB50-N-14M | Single-bellows cup, 50 mm, Nitrile, G1/4″ male |
| VB50-S-14M | Single-bellows cup, 50 mm, Silicone, G1/4″ male |
| VB50-WS-14M | Single-bellows cup, 50 mm, White silicone, G1/4″ male |
| VB50-WS(FDA)-14M | Single-bellows cup, 50 mm, White silicone (FDA), G1/4″ male |
| VB50-HS-14M | Single-bellows cup, 50 mm, High-temp silicone, G1/4″ male |
| VB50-CS-14M | Single-bellows cup, 50 mm, Conductive, G1/4″ male |
| VB50-U-14M | Single-bellows cup, 50 mm, Urethane, G1/4″ male |
| VB50-A-14M | Single-bellows cup, 50 mm, Mark free, G1/4″ male |
| VB50-PU-14M | Single-bellows cup, 50 mm, Polyurethane, G1/4″ male |
| G3/8″ Male | |
| VB50-N-38M | Single-bellows cup, 50 mm, Nitrile, G3/8″” male |
| VB50-S-38M | Single-bellows cup, 50 mm, Silicone, G3/8″” male |
| VB50-WS-38M | Single-bellows cup, 50 mm, White silicone, G3/8″” male |
| VB50-WS(FDA)-38M | Single-bellows cup, 50 mm, White silicone (FDA), G3/8″” male |
| VB50-HS-38M | Single-bellows cup, 50 mm, High-temp silicone, G3/8″” male |
| VB50-CS-38M | Single-bellows cup, 50 mm, Conductive, G3/8″” male |
| VB50-U-38M | Single-bellows cup, 50 mm, Urethane, G3/8″” male |
| VB50-A-38M | Single-bellows cup, 50 mm, Mark free, G3/8″” male |
| VB50-PU-38M | Single-bellows cup, 50 mm, Polyurethane, G3/8″” male |
| G1/8″ Female, Efficiency Valve | |
| VB50-N-18F-EV | Single-bellows cup, 50 mm, Nitrile, G1/8″ female, Efficiency valve |
| VB50-S-18F-EV | Single-bellows cup, 50 mm, Silicone, G1/8″ female, Efficiency valve |
| VB50-WS-18F-EV | Single-bellows cup, 50 mm, White silicone, G1/8″ female, Efficiency valve |
| VB50-WS(FDA)-18F-EV | Single-bellows cup, 50 mm, White silicone (FDA), G1/8″ female, Eff. valve |
| VB50-HS-18F-EV | Single-bellows cup, 50 mm, High-temp silicone, G1/8″ female, Eff. valve |
| VB50-CS-18F-EV | Single-bellows cup, 50 mm, Conductive, G1/8″ female, Efficiency valve |
| VB50-U-18F-EV | Single-bellows cup, 50 mm, Urethane, G1/8″ female, Efficiency valve |
| VB50-A-18F-EV | Single-bellows cup, 50 mm, Mark free, G1/8″ female, Efficiency valve |
| VB50-PU-18F-EV | Single-bellows cup, 50 mm, Polyurethane, Efficiency valve |
| G1/4″ Male, Efficiency Valve | |
| VB50-N-14M-EV | Single-bellows cup, 50 mm, Nitrile, G1/4″ male, Efficiency valve |
| VB50-S-14M-EV | Single-bellows cup, 50 mm, Silicone, G1/4″ male, Efficiency valve |
| VB50-WS-14M-EV | Single-bellows cup, 50 mm, White silicone, G1/4″ male, Efficiency valve |
| VB50-WS(FDA)-14M-EV | Single-bellows cup, 50 mm, White silicone (FDA), G1/4″ male, Eff. valve |
| VB50-HS-14M-EV | Single-bellows cup, 50 mm, High-temp silicone, G1/4″ male, Eff. valve |
| VB50-CS-14M-EV | Single-bellows cup, 50 mm, Conductive, G1/4″ male, Efficiency valve |
| VB50-U-14M-EV | Single-bellows cup, 50 mm, Urethane, G1/4″ male, Efficiency valve |
| VB50-A-14M-EV | Single-bellows cup, 50 mm, Mark free, G1/4″ male, Efficiency valve |
| VB50-PU-14M-EV | Single-bellows cup, 50 mm, Polyurethane, G1/4″ male, Efficiency valve |
| G3/8″ Male, Efficiency Valve | |
| VB50-N-38M-EV | Single-bellows cup, 50 mm, Nitrile, G3/8″ male, Efficiency valve |
| VB50-S-38M-EV | Single-bellows cup, 50 mm, Silicone, G3/8″ male, Efficiency valve |
| VB50-WS-38M-EV | Single-bellows cup, 50 mm, White silicone, G3/8″ male, Efficiency valve |
| VB50-WS(FDA)-38M-EV | Single-bellows cup, 50 mm, White silicone (FDA), G3/8″ male, Eff. valve |
| VB50-HS-38M-EV | Single-bellows cup, 50 mm, High-temp silicone, G3/8″ male, Eff. valve |
| VB50-CS-38M-EV | Single-bellows cup, 50 mm, Conductive, G3/8″ male, Efficiency valve |
| VB50-U-38M-EV | Single-bellows cup, 50 mm, Urethane, G3/8″ male, Efficiency valve |
| VB50-A-38M-EV | Single-bellows cup, 50 mm, Mark free, G3/8″ male, Efficiency valve |
| VB50-PU-38M-EV | Single-bellows cup, 50 mm, Polyurethane, G3/8″ male, Efficiency valve |
| G1/8″ Female, Mesh & Disc Filter | |
| VB50-NFM-18F | Single-bellows, 50 mm, Nitrile, G1/8″ female, Mesh & Disc filter |
| VB50-SFM-18F | Single-bellows, 50 mm, Silicone, G1/8″ female, Mesh & Disc filter |
| VB50-WSFM-18F | Single-bellows, 50 mm, White silicone, G1/8″ female, Mesh & Disc filter |
| VB50-WS(FDA)FM-18F | Single-bellows, 50 mm, White silicone (FDA), G1/8″ female, Mesh & Disc filter |
| VB50-HSFM-18F | Single-bellows, 50 mm, High-temp silicone, G1/8″ female, Mesh & Disc filter |
| VB50-CSFM-18F | Single-bellows, 50 mm, Conductive, G1/8″ female, Mesh & Disc filter |
| VB50-UFM-18F | Single-bellows, 50 mm, Urethane, G1/8″ female, Mesh & Disc filter |
| VB50-AFM-18F | Single-bellows, 50 mm, Mark free, G1/8″ female, Mesh & Disc filter |
| VB50-PUFM-18F | Single-bellows, 50 mm, Polyurethane, G1/8″ female, Mesh & Disc filter |
| G1/4″ Male, Mesh & Disc Filter | |
| VB50-NFM-14M | Single-bellows, 50 mm, Nitrile, G1/4″ male, Mesh & Disc filter |
| VB50-SFM-14M | Single-bellows, 50 mm, Silicone, G1/4″ male, Mesh & Disc filter |
| VB50-WSFM-14M | Single-bellows, 50 mm, White silicone, G1/4″ male, Mesh & Disc filter |
| VB50-WS(FDA)FM-14M | Single-bellows, 50 mm, White silicone (FDA), G1/4″ male, Mesh & Disc filter |
| VB50-HSFM-14M | Single-bellows, 50 mm, High-temp silicone, G1/4″ male, Mesh & Disc filter |
| VB50-CSFM-14M | Single-bellows, 50 mm, Conductive, G1/4″ male, Mesh & Disc filter |
| VB50-UFM-14M | Single-bellows, 50 mm, Urethane, G1/4″ male, Mesh & Disc filter |
| VB50-AFM-14M | Single-bellows, 50 mm, Mark free, G1/4″ male, Mesh & Disc filter |
| VB50-PUFM-14M | Single-bellows, 50 mm, Polyurethane, G1/4″ male, Mesh & Disc filter |
| G3/8″ Male, Mesh & Disc Filter | |
| VB50-NFM-38M | Single-bellows, 50 mm, Nitrile, G3/8″ male, Mesh & Disc filter |
| VB50-SFM-38M | Single-bellows, 50 mm, Silicone, G3/8″ male, Mesh & Disc filter |
| VB50-WSFM-38M | Single-bellows, 50 mm, White silicone, G3/8″ male, Mesh & Disc filter |
| VB50-WS(FDA)FM-38M | Single-bellows, 50 mm, White silicone (FDA), G3/8″ male, Mesh & Disc filter |
| VB50-HSFM-38M | Single-bellows, 50 mm, High-temp silicone, G3/8″ male, Mesh & Disc filter |
| VB50-CSFM-38M | Single-bellows, 50 mm, Conductive, G3/8″ male, Mesh & Disc filter |
| VB50-UFM-38M | Single-bellows, 50 mm, Urethane, G3/8″ male, Mesh & Disc filter |
| VB50-AFM-38M | Single-bellows, 50 mm, Mark free, G3/8″ male, Mesh & Disc filter |
| VB50-PUFM-38M | Single-bellows, 50 mm, Polyurethane, G3/8″ male, Mesh & Disc filter |
| G1/8″ Female, Disc Filter | |
| VB50-NF-18F | Single-bellows, 50 mm, Nitrile, G1/8″ female, Disc filter |
| VB50-SF-18F | Single-bellows, 50 mm, Silicone, G1/8″ female, Disc filter |
| VB50-WSF-18F | Single-bellows, 50 mm, White silicone, G1/8″ female, Disc filter |
| VB50-WS(FDA)F-18F | Single-bellows, 50 mm, White silicone (FDA), G1/8″ female, Disc filter |
| VB50-HSF-18F | Single-bellows, 50 mm, High-temp silicone, G1/8″ female, Disc filter |
| VB50-CSF-18F | Single-bellows, 50 mm, Conductive, G1/8″ female, Disc filter |
| VB50-UF-18F | Single-bellows, 50 mm, Urethane, G1/8″ female, Disc filter |
| VB50-AF-18F | Single-bellows, 50 mm, Mark free, G1/8″ female, Disc filter |
| VB50-PUF-18F | Single-bellows, 50 mm, Polyurethane, G1/8″ female, Disc filter |
| G1/4″ Male, Disc Filter | |
| VB50-NF-14M | Single-bellows, 50 mm, Nitrile, G1/4″ male, Disc filter |
| VB50-SF-14M | Single-bellows, 50 mm, Silicone, G1/4″ male, Disc filter |
| VB50-WSF-14M | Single-bellows, 50 mm, White silicone, G1/4″ male, Disc filter |
| VB50-WS(FDA)F-14M | Single-bellows, 50 mm, White silicone (FDA), G1/4″ male, Disc filter |
| VB50-HSF-14M | Single-bellows, 50 mm, High-temp silicone, G1/4″ male, Disc filter |
| VB50-CSF-14M | Single-bellows, 50 mm, Conductive, G1/4″ male, Disc filter |
| VB50-UF-14M | Single-bellows, 50 mm, Urethane, G1/4″ male, Disc filter |
| VB50-AF-14M | Single-bellows, 50 mm, Mark free, G1/4″ male, Disc filter |
| VB50-PUF-14M | Single-bellows, 50 mm, Polyurethane, G1/4″ male, Disc filter |
| G3/8″ Male, Disc Filter | |
| VB50-NF-38M | Single-bellows, 50 mm, Nitrile, G3/8″ male, Disc filter |
| VB50-SF-38M | Single-bellows, 50 mm, Silicone, G3/8″ male, Disc filter |
| VB50-WSF-38M | Single-bellows, 50 mm, White silicone, G3/8″ male, Disc filter |
| VB50-WS(FDA)F-38M | Single-bellows, 50 mm, White silicone (FDA), G3/8″ male, Disc filter |
| VB50-HSF-38M | Single-bellows, 50 mm, High-temp silicone, G3/8″ male, Disc filter |
| VB50-CSF-38M | Single-bellows, 50 mm, Conductive, G3/8″ male, Disc filter |
| VB50-UF-38M | Single-bellows, 50 mm, Urethane, G3/8″ male, Disc filter |
| VB50-AF-38M | Single-bellows, 50 mm, Mark free, G3/8″ male, Disc filter |
| VB50-PUF-38M | Single-bellows, 50 mm, Polyurethane, G3/8″ male, Disc filter |
| G1/8″ Female, Efficiency Valve, Disc Filter | |
| VB50-NF-18F-EV | Single-bellows, 50 mm, Nitrile, G1/8″ female, Disc filter, Eff. valve |
| VB50-SF-18F-EV | Single-bellows, 50 mm, Silicone, G1/8″ female, Disc filter, Eff. valve |
| VB50-WSF-18F-EV | Single-bellows, 50 mm, White silicone, G1/8″ female, Disc filter, Eff. valve |
| VB50-WS(FDA)F-18F-EV | Single-bellows, 50 mm, White silicone (FDA), G1/8″ female, Disc filter, Eff. valve |
| VB50-HSF-18F-EV | Single-bellows, 50 mm, High-temp silicone, G1/8″ female, Disc filter, Eff. valve |
| VB50-CSF-18F-EV | Single-bellows, 50 mm, Conductive, G1/8″ female, Disc filter, Eff. valve |
| VB50-UF-18F-EV | Single-bellows, 50 mm, Urethane, G1/8″ female, Disc filter, Eff. valve |
| VB50-AF-18F-EV | Single-bellows, 50 mm, Mark free, G1/8″ female, Disc filter, Eff. valve |
| VB50-PUF-18F-EV | Single-bellows, 50 mm, Polyurethane, Eff. valve, Disc filter |
| G1/4″ Male, Efficiency Valve, Disc Filter | |
| VB50-NF-14M-EV | Single-bellows, 50 mm, Nitrile, G1/4″ male, Eff. valve, Disc filter |
| VB50-SF-14M-EV | Single-bellows, 50 mm, Silicone, G1/4″ male, Eff. valve, Disc filter |
| VB50-WSF-14M-EV | Single-bellows, 50 mm, White silicone, G1/4″ male, Eff. valve, Disc filter |
| VB50-WS(FDA)F-14M-EV | Single-bellows, 50 mm, White silicone (FDA), G1/4″ male, Eff. valve, Disc filter |
| VB50-HSF-14M-EV | Single-bellows, 50 mm, High-temp silicone, G1/4″ male, Eff. valve, Disc filter |
| VB50-CSF-14M-EV | Single-bellows, 50 mm, Conductive, G1/4″ male, Eff. valve, Disc filter |
| VB50-UF-14M-EV | Single-bellows, 50 mm, Urethane, G1/4″ male, Eff. valve, Disc filter |
| VB50-AF-14M-EV | Single-bellows, 50 mm, Mark free, G1/4″ male, Eff. valve, Disc filter |
| VB50-PUF-14M-EV | Single-bellows, 50 mm, Polyurethane, G1/4″ male, Eff. valve, Disc filter |
| G3/8″ Male, Efficiency Valve, Disc Filter | |
| VB50-NF-38M-EV | Single-bellows, 50 mm, Nitrile, G3/8″ male, Eff. valve, Disc filter |
| VB50-SF-38M-EV | Single-bellows, 50 mm, Silicone, G3/8″ male, Eff. valve, Disc filter |
| VB50-WSF-38M-EV | Single-bellows, 50 mm, White silicone, G3/8″ male, Eff. valve, Disc filter |
| VB50-WS(FDA)F-38M-EV | Single-bellows, 50 mm, White silicone (FDA), G3/8″ male, Eff. valve, Disc filter |
| VB50-HSF-38M-EV | Single-bellows, 50 mm, High-temp silicone, G3/8″ male, Eff. valve, Disc filter |
| VB50-CSF-38M-EV | Single-bellows, 50 mm, Conductive, G3/8″ male, Eff. valve, Disc filter |
| VB50-UF-38M-EV | Single-bellows, 50 mm, Urethane, G3/8″ male, Eff. valve, Disc filter |
| VB50-AF-38M-EV | Single-bellows, 50 mm, Mark free, G3/8″ male, Eff. valve, Disc filter |
| VB50-PUF-38M-EV | Single-bellows, 50 mm, Polyurethane, G3/8″ male, Eff. valve, Disc filter |
| Disc Filter | |
| VTFE-B50 | Disc filter, Polyethylene |
| Rubber Part | |
| VB50-N | Single-bellows cup, 50 mm, Nitrile |
| VB50-S | Single-bellows cup, 50 mm, Silicone |
| VB50-WS | Single-bellows cup, 50 mm, White silicone |
| VB50-WS(FDA) | Single-bellows cup, 50 mm, White silicone (FDA) |
| VB50-HS | Single-bellows cup, 50 mm, High-temp silicone |
| VB50-CS | Single-bellows cup, 50 mm, Conductive |
| VB50-U | Single-bellows cup, 50 mm, Urethane |
| VB50-A | Single-bellows cup, 50 mm, Mark free |
| VB50-PU | Single-bellows cup, 50 mm, Polyurethane |
| Fitting | |
| 350-000-4312 | Fitting, Mesh filter, G1/8 female |
| 350-000-3805 | Fitting, Mesh filter, G1/4 male |
| 350-000-3905 | Fitting, Mesh filter, G3/8 male |
| 350-000-3312 | Fitting, G1/8 female |
| 350-000-3405 | Fitting, G1/4 male |
| 350-000-3505 | Fitting, G3/8 male |
| 350-010-3312 | Efficiency valve fitting, G1/8 female |
| 350-010-3405 | Efficiency valve fitting, G1/4 male |
| 350-010-3505 | Efficiency valve fitting, G3/8 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
Sản phẩm cùng loại
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB150
0985.288.164
257 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB110B
0985.288.164
199 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB110
0985.288.164
246 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB75B
0985.288.164
216 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB75
0985.288.164
209 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB40
0985.288.164
258 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB30
0985.288.164
221 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB20
0985.288.164
293 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB17
0985.288.164
201 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB15
0985.288.164
216 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB12
0985.288.164
250 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB10
0985.288.164
299 lượt
