GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB110
VMECA - VB110
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực giữ (↑): 35,00 Kg @ -60 kPa
• Thể tích: 310 cm³
• Đường kính: 115 mm
• Tốt ở những khu vực có bề mặt hơi cong.
• Cốc thổi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi.
Ứng dụng:
• Thẻ
• Veneer tấm
• Vật liệu đóng gói
• Tấm nhựa
• Tấm màng mỏng
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

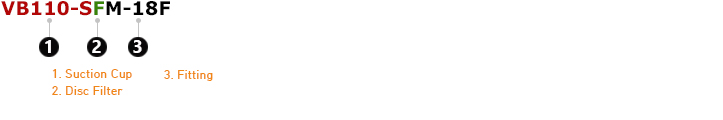

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VB110-N | Single-bellows suction cup, 110 mm, Nitrile |
| VB110-S | Single-bellows suction cup, 110 mm, Silicone |
| VB110-WS | Single-bellows suction cup, 110 mm, White silicone |
| VB110-WS(FDA) | Single-bellows suction cup, 110 mm, White silicone (FDA) |
| VB110-HS | Single-bellows suction cup, 110 mm, High-temp silicone |
| VB110-CS | Single-bellows suction cup, 110 mm, Conductive |
| VB110-U | Single-bellows suction cup, 110 mm, Urethane |
| VB110-A | Single-bellows suction cup, 110 mm, Mark free |
2. Disc Filter
| Symbol | Description |
| Blank | No fitting |
| F | Disc filter |
3. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-12F | Fitting, Mesh filter, G1/2″ female |
| 12F | Fitting, G1/2″ female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 115 | 310.00 | 13.97 | 35.00 | 47.04 |
2. Weight
| Part Number | Description | Weight (g) |
| VB110-N | Single-bellows suction cup, 110 mm, Nitrile | 186.15 |
| VB110-S | Single-bellows suction cup, 110 mm, Silicone | 120.50 |
| VB110-WS | Single-bellows suction cup, 110 mm, White silicone | 121.12 |
| VB110-WS(FDA) | Single-bellows suction cup, 110 mm, White silicone (FDA) | 121.12 |
| VB110-HS | Single-bellows suction cup, 110 mm, High-temp silicone | 121.33 |
| VB110-CS | Single-bellows suction cup, 110 mm, Conductive | 121.28 |
| VB110-U | Single-bellows suction cup, 110 mm, Urethane | 186.13 |
| VB110-A | Single-bellows suction cup, 110 mm, Mark free | 134.17 |
| VTFE-B110 | Disc filter, Polyethylene | 10.15 |
| 350-000-4014 | Fitting, Mesh filter, G1/2″ female | 104.50 |
| 350-000-3614 | Fitting, G1/2″ female | 103.70 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Smoky Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

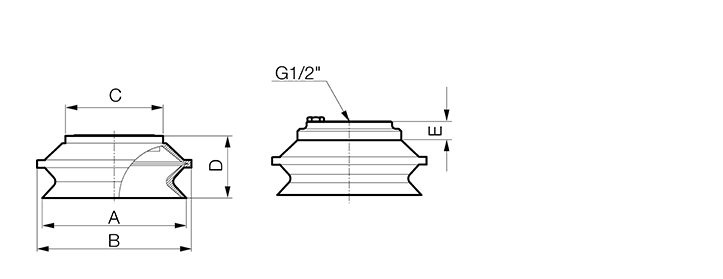

DIMENSIONS:
VB110
|
|
| Unit: mm |
| Legend | A | B | C | D | E |
| Dimension | 115 | 124 | 85 | 51.4 | 15 |
ORDER NUMBER:
Spare Parts
| Part Number | Description |
| G1/2″ Female, Mesh Filter | |
| VB110-NM-12F | Single-bellows cup, 110 mm, Nitrile, G1/4″ female, Mesh filter |
| VB110-SM-12F | Single-bellows cup, 110 mm, Silicone, G1/4″ female, Mesh filter |
| VB110-WSM-12F | Single-bellows cup, 110 mm, White silicone, G1/4″ female, Mesh filter |
| VB110-WS(FDA)M-12F | Single-bellows cup, 110 mm, White silicone (FDA), G1/4″ female, Mesh filter |
| VB110-HSM-12F | Single-bellows cup, 110 mm, High-temp silicone, G1/4″ female, Mesh filter |
| VB110-CSM-12F | Single-bellows cup, 110 mm, Conductive, G1/4″ female, Mesh filter |
| VB110-UM-12F | Single-bellows cup, 110 mm, Urethane, G1/4″ female, Mesh filter |
| VB110-AM-12F | Single-bellows cup, 110 mm, Mark free, G1/4″ female, Mesh filter |
| VB110-PUM-12F | Single-bellows cup, 110 mm, Polyurethane, G1/4″ female, Mesh filter |
| G1/2″ Female | |
| VB110-N-12F | Single-bellows cup, 110 mm, Nitrile, G1/4″ female |
| VB110-S-12F | Single-bellows cup, 110 mm, Silicone, G1/4″ female |
| VB110-WS-12F | Single-bellows cup, 110 mm, White silicone, G1/4″ female |
| VB110-WS(FDA)-12F | Single-bellows cup, 110 mm, White silicone (FDA), G1/4″ female |
| VB110-HS-12F | Single-bellows cup, 110 mm, High-temp silicone, G1/4″ female |
| VB110-CS-12F | Single-bellows cup, 110 mm, Conductive, G1/4″ female |
| VB110-U-12F | Single-bellows cup, 110 mm, Urethane, G1/4″ female |
| VB110-A-12F | Single-bellows cup, 110 mm, Mark free, G1/4″ female |
| VB110-PU-12F | Single-bellows cup, 110 mm, Polyurethane, G1/4″ female |
| G1/2″ Female, Mesh & Disc Filter | |
| VB110-NFM-12F | Single-bellows cup, 110 mm, Nitrile, G1/4″ female, Mesh & disc filter |
| VB110-SFM-12F | Single-bellows cup, 110 mm, Silicone, G1/4″ female, Mesh & disc filter |
| VB110-WSFM-12F | Single-bellows cup, 110 mm, White silicone, G1/4″ female, Mesh & disc filter |
| VB110-WS(FDA)FM-12F | Single-bellows cup, 110 mm, White silicone (FDA), G1/4″ female, Mesh & disc filter |
| VB110-HSFM-12F | Single-bellows cup, 110 mm, High-temp silicone, G1/4″ female, Mesh & disc filter |
| VB110-CSFM-12F | Single-bellows cup, 110 mm, Conductive, G1/4″ female, Mesh & disc filter |
| VB110-UFM-12F | Single-bellows cup, 110 mm, Urethane, G1/4″ female, Mesh & disc filter |
| VB110-AFM-12F | Single-bellows cup, 110 mm, Mark free, G1/4″ female, Mesh & disc filter |
| VB110-PUFM-12F | Single-bellows cup, 110 mm, Polyurethane, G1/4″ female, Mesh & disc filter |
| G1/2″ Female, Disc Filter | |
| VB110-NF-12F | Single-bellows cup, 110 mm, Nitrile, G1/4″ female, Disc filter |
| VB110-SF-12F | Single-bellows cup, 110 mm, Silicone, G1/4″ female, Disc filter |
| VB110-WSF-12F | Single-bellows cup, 110 mm, White silicone, G1/4″ female, Disc filter |
| VB110-WS(FDA)F-12F | Single-bellows cup, 110 mm, White silicone (FDA), G1/4″ female, Disc filter |
| VB110-HSF-12F | Single-bellows cup, 110 mm, High-temp silicone, G1/4″ female, Disc filter |
| VB110-CSF-12F | Single-bellows cup, 110 mm, Conductive, G1/4″ female, Disc filter |
| VB110-UF-12F | Single-bellows cup, 110 mm, Urethane, G1/4″ female, Disc filter |
| VB110-AF-12F | Single-bellows cup, 110 mm, Mark free, G1/4″ female, Disc filter |
| VB110-PUF-12F | Single-bellows cup, 110 mm, Polyurethane, G1/4″ female, Disc filter |
| Rubber Part | |
| VB110-N | Single-bellows suction cup, 110 mm, Nitrile |
| VB110-S | Single-bellows suction cup, 110 mm, Silicone |
| VB110-WS | Single-bellows suction cup, 110 mm, White silicone |
| VB110-WS(FDA) | Single-bellows suction cup, 110 mm, White silicone (FDA) |
| VB110-HS | Single-bellows suction cup, 110 mm, High-temp silicone |
| VB110-CS | Single-bellows suction cup, 110 mm, Conductive |
| VB110-U | Single-bellows suction cup, 110 mm, Urethane |
| VB110-A | Single-bellows suction cup, 110 mm, Mark free |
| Disc Filter | |
| VTFE-B110 | Disc filter, Polyethylene |
| Fitting | |
| 350-000-4014 | Fitting, Mesh filter, G1/2″ female |
| 350-000-3614 | Fitting, G1/2″ female |
