GIÁC HÚT CHÂN KHÔNG VMECA SERIES VB150

(0 đánh giá)

VMECA - VB150

VMECA - KOREA

Theo tiêu chuẩn nhà sản xuất

• Lực giữ (↑): 70,0 Kg @ -60 kPa • Thể tích: 650 cm³ • Đường kính: 155 mm • Tốt ở những khu vực có bề mặt hơi cong. • Cốc thổi rất tốt trong việc bù cho một mức độ khác biệt về mức độ và độ cong của phôi. Ứng dụng: • Thẻ • Veneer tấm • Vật liệu đóng gói • Tấm nhựa • Tấm màng mỏng

HOTLINE : 0985.288.164

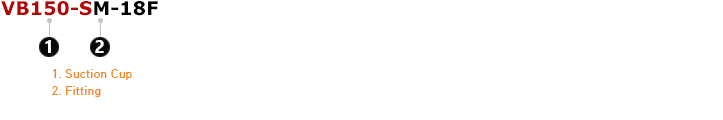

BUILD AND ORDER:



1. Suction Cup

Symbol Description
VB150-N Single-bellows suction cup, 150 mm, Nitrile
VB150-S Single-bellows suction cup, 150 mm, Silicone
VB150-WS Single-bellows suction cup, 150 mm, White silicone
VB150-WS(FDA) Single-bellows suction cup, 150 mm, White silicone (FDA)
VB150-HS Single-bellows suction cup, 150 mm, High-temp silicone
VB150-CS Single-bellows suction cup, 150 mm, Conductive
VB150-U Single-bellows suction cup, 150 mm, Urethane
VB150-A Single-bellows suction cup, 150 mm, Mark free

2. Fitting

Symbol Description
Blank No fitting
M-12F Fitting, Mesh filter, G1/2″ female
12F Fitting, G1/2″ female

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter Volume Lifting Force (↑), Kg
(mm) (cm³) -20 kPa -60 kPa -90 kPa
155 650.00 30.00 70.00 90.10

2. Weight

Part Number Description Weight (g)
VB150-N Single-bellows suction cup, 150 mm, Nitrile 460.0
VB150-S Single-bellows suction cup, 150 mm, Silicone 420.0
VB150-WS Single-bellows suction cup, 150 mm, White silicone 422.0
VB150-WS(FDA) Single-bellows suction cup, 150 mm, White silicone (FDA) 422.0
VB150-HS Single-bellows suction cup, 150 mm, High-temp silicone 443.0
VB150-CS Single-bellows suction cup, 150 mm, Conductive 440.0
VB150-U Single-bellows suction cup, 150 mm, Urethane 460.0
VB150-A Single-bellows suction cup, 150 mm, Mark free 460.0
350-000-4015 Fitting, Mesh filter, G1/2″ female 199.7
350-000-3615 Fitting, G1/2″ female 198.9

3. Material Specifications

Material Hardness Shore (°) Color Temperature (℃)
NBR 60 Black -20 ~ 110
Silicone 55 Red -70 ~ 200
White Silicone 55 Translucent White -70 ~ 200
White Silicone (FDA) 55 Translucent White -70 ~ 200
High Temp. Silicone 50 Blue -70 ~ 280
Conductive Material 70 Smoky Black -45 ~ 90
Urethane 60 Dark Green 0 ~ 100
Mark Free 75 Smoky Black -10 ~ 100

4. Material Resistance

Description Wear Resistance Oil Weather/Ozone Alcohol Acid
NBR Excellent Excellent Fair Good Fair
Silicone Good Poor Excellent Good Poor
White Silicone Good Poor Excellent Good Poor
High Temp. Silicone Good Poor Excellent Good Poor
Conductive Silicone Good Poor Excellent Good Poor
Urethane Excellent Excellent Excellent Fair Poor
Mark Free Good Excellent Excellent Good Excellent

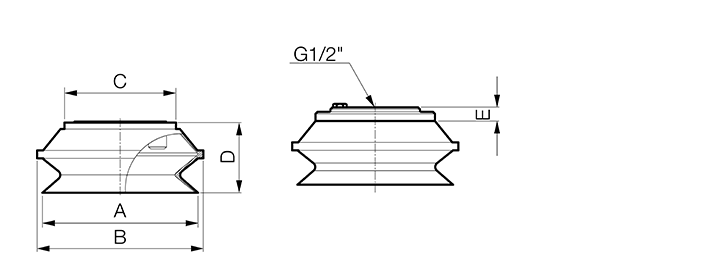

DIMENSIONS:

VB150

G1/2″ Female Fitting and Rubber Part


Unit: mm
Legend A B C D E
Dimension 155 166 120 78 14



ORDER NUMBER:

Spare Parts

Part Number Description
G1/2″ Female, Mesh Filter
VB150-NM-12F Single-bellows cup, 150 mm, Nitrile, G1/4″ female, Mesh filter
VB150-SM-12F Single-bellows cup, 150 mm, Silicone, G1/4″ female, Mesh filter
VB150-WSM-12F Single-bellows cup, 150 mm, White silicone, G1/4″ female, Mesh filter
VB150-WS(FDA)M-12F Single-bellows cup, 150 mm, White silicone (FDA), G1/4″ female, Mesh filter
VB150-HSM-12F Single-bellows cup, 150 mm, High-temp silicone, G1/4″ female, Mesh filter
VB150-CSM-12F Single-bellows cup, 150 mm, Conductive, G1/4″ female, Mesh filter
VB150-UM-12F Single-bellows cup, 150 mm, Urethane, G1/4″ female, Mesh filter
VB150-AM-12F Single-bellows cup, 150 mm, Mark free, G1/4″ female, Mesh filter
G1/2″ Female
VB150-N-12F Single-bellows cup, 150 mm, Nitrile, G1/4″ female
VB150-S-12F Single-bellows cup, 150 mm, Silicone, G1/4″ female
VB150-WS-12F Single-bellows cup, 150 mm, White silicone, G1/4″ female
VB150-WS(FDA)-12F Single-bellows cup, 150 mm, White silicone (FDA), G1/4″ female
VB150-HS-12F Single-bellows cup, 150 mm, High-temp silicone, G1/4″ female
VB150-CS-12F Single-bellows cup, 150 mm, Conductive, G1/4″ female
VB150-U-12F Single-bellows cup, 150 mm, Urethane, G1/4″ female
VB150-A-12F Single-bellows cup, 150 mm, Mark free, G1/4″ female
Rubber Part
VB150-N Single-bellows suction cup, 150 mm, Nitrile
VB150-S Single-bellows suction cup, 150 mm, Silicone
VB150-WS Single-bellows suction cup, 150 mm, White silicone
VB150-WS(FDA) Single-bellows suction cup, 150 mm, White silicone (FDA)
VB150-HS Single-bellows suction cup, 150 mm, High-temp silicone
VB150-CS Single-bellows suction cup, 150 mm, Conductive
VB150-U Single-bellows suction cup, 150 mm, Urethane
VB150-A Single-bellows suction cup, 150 mm, Mark free
Fitting
350-000-4015 Fitting, Mesh filter, G1/2″ female
350-000-3615 Fitting, G1/2″ female
