GIÁC HÚT CHÂN KHÔNG VMECA SERIES VDF80
VMECA - VDF80
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

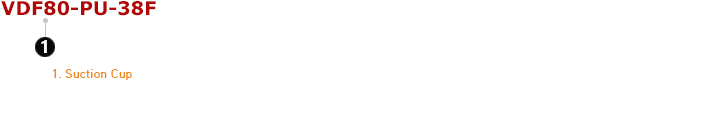

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VDF80-PU-18F | Deep-flat suction cup, 80 mm, Polyurethane, G1/8 female |
| VDF80-PU-14F | Deep-flat suction cup, 80 mm, Polyurethane, G1/4 female |
| VDF80-PU-14M | Deep-flat suction cup, 80 mm, Polyurethane, G1/4 male |
| VDF80-PU-38F | Deep-flat suction cup, 80 mm, Polyurethane, G3/8 female |
| VDF80-PU-38M | Deep-flat suction cup, 80 mm, Polyurethane, G3/8 male |
| VDF80-PU-12F | Deep-flat suction cup, 80 mm, Polyurethane, G1/2 female |
| VDF80-PU-M10M | Deep-flat suction cup, 80 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 83 | 50.5 | 8.60 | 21.2 | 29.3 | 7.2 | 18.5 | 27.0 |
2. Weight
| Part Number | Description | Weight (g) |
| VDF80-PU-18F | Deep-flat suction cup, 80 mm, Polyurethane, G1/8 female | 48.6 |
| VDF80-PU-14F | Deep-flat suction cup, 80 mm, Polyurethane, G1/4 female | 47.9 |
| VDF80-PU-14M | Deep-flat suction cup, 80 mm, Polyurethane, G1/4 male | 53.9 |
| VDF80-PU-38F | Deep-flat suction cup, 80 mm, Polyurethane, G3/8 female | 45.7 |
| VDF80-PU-38M | Deep-flat suction cup, 80 mm, Polyurethane, G3/8 male | 53.4 |
| VDF80-PU-12F | Deep-flat suction cup, 80 mm, Polyurethane, G1/2 female | 42.5 |
| VDF80-PU-M10M | Deep-flat suction cup, 80 mm, Polyurethane, M10 male | 52.1 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

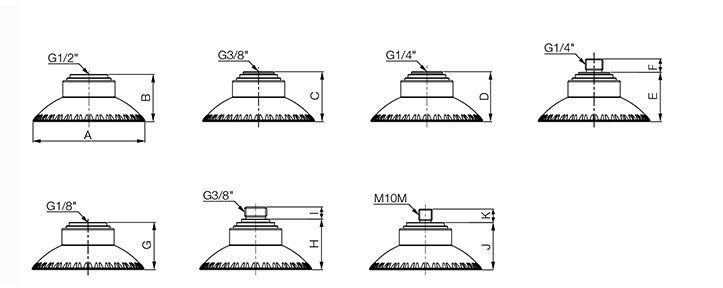

DIMENSIONS:
VDF80
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J | K |
| Dimension | 83 | 35.1 | 37.1 | 37.1 | 36.7 | 10 | 35.1 | 37.6 | 9 | 35.1 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VDF80-PU-18F | Deep-flat suction cup, 80 mm, Polyurethane, G1/8 female |
| VDF80-PU-14F | Deep-flat suction cup, 80 mm, Polyurethane, G1/4 female |
| VDF80-PU-14M | Deep-flat suction cup, 80 mm, Polyurethane, G1/4 male |
| VDF80-PU-38F | Deep-flat suction cup, 80 mm, Polyurethane, G3/8 female |
| VDF80-PU-38M | Deep-flat suction cup, 80 mm, Polyurethane, G3/8 male |
| VDF80-PU-12F | Deep-flat suction cup, 80 mm, Polyurethane, G1/2 female |
| VDF80-PU-M10M | Deep-flat suction cup, 80 mm, Polyurethane, M10 male |
