GIÁC HÚT CHÂN KHÔNG VMECA SERIES VDF40
VMECA - VDF40
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

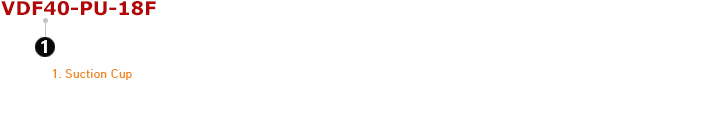

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VDF40-PU-18F | Deep-flat suction cup, 40 mm, Polyurethane, G1/8 female |
| VDF40-PU-14F | Deep-flat suction cup, 40 mm, Polyurethane, G1/4 female |
| VDF40-PU-14M | Deep-flat suction cup, 40 mm, Polyurethane, G1/4 male |
| VDF40-PU-38F | Deep-flat suction cup, 40 mm, Polyurethane, G3/8 female |
| VDF40-PU-38M | Deep-flat suction cup, 40 mm, Polyurethane, G3/8 male |
| VDF40-PU-M10M | Deep-flat suction cup, 40 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 42.5 | 7.0 | 2.70 | 6.20 | 8.30 | 2.40 | 4.70 | 7.10 |
2. Weight
| Part Number | Description | Weight (g) |
| VDF40-PU-18F | Deep-flat suction cup, 40 mm, Polyurethane, G1/8 female | 18.0 |
| VDF40-PU-14F | Deep-flat suction cup, 40 mm, Polyurethane, G1/4 female | 14.9 |
| VDF40-PU-14M | Deep-flat suction cup, 40 mm, Polyurethane, G1/4 male | 21.9 |
| VDF40-PU-38F | Deep-flat suction cup, 40 mm, Polyurethane, G3/8 female | 26.0 |
| VDF40-PU-38M | Deep-flat suction cup, 40 mm, Polyurethane, G3/8 male | 24.4 |
| VDF40-PU-M10M | Deep-flat suction cup, 40 mm, Polyurethane, M10 male | 18.5 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

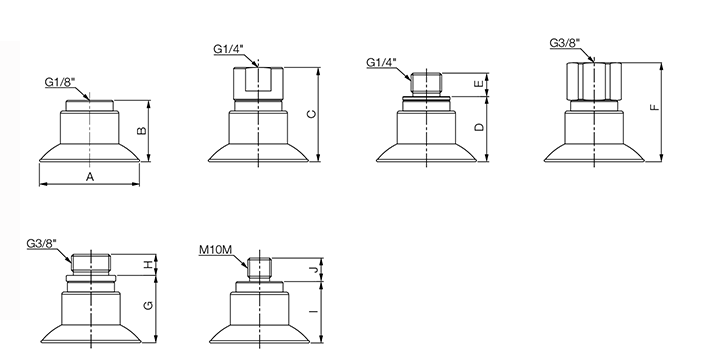

DIMENSIONS:
VDF40
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J |
| Dimension | 42.5 | 26.1 | 40.1 | 27.7 | 10 | 42.1 | 28.6 | 9 | 26.1 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VDF40-PU-18F | Deep-flat suction cup, 40 mm, Polyurethane, G1/8 female |
| VDF40-PU-14F | Deep-flat suction cup, 40 mm, Polyurethane, G1/4 female |
| VDF40-PU-14M | Deep-flat suction cup, 40 mm, Polyurethane, G1/4 male |
| VDF40-PU-38F | Deep-flat suction cup, 40 mm, Polyurethane, G3/8 female |
| VDF40-PU-38M | Deep-flat suction cup, 40 mm, Polyurethane, G3/8 male |
| VDF40-PU-M10M | Deep-flat suction cup, 40 mm, Polyurethane, M10 male |
