GIÁC HÚT CHÂN KHÔNG VMECA SERIES VDF25
VMECA - VDF25
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

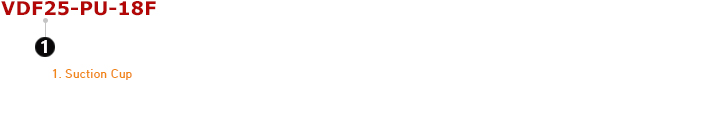

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VDF25-PU-18F | Deep-flat suction cup, 25 mm, Polyurethane, G1/8 female |
| VDF25-PU-14F | Deep-flat suction cup, 25 mm, Polyurethane, G1/4 female |
| VDF25-PU-14M | Deep-flat suction cup, 25 mm, Polyurethane, G1/4 male |
| VDF25-PU-38F | Deep-flat suction cup, 25 mm, Polyurethane, G3/8 female |
| VDF25-PU-38M | Deep-flat suction cup, 25 mm, Polyurethane, G3/8 male |
| VDF25-PU-M10M | Deep-flat suction cup, 25 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 26 | 1.50 | 1.40 | 3.00 | 4.10 | 0.70 | 1.90 | 2.90 |
2. Weight
| Part Number | Description | Weight (g) |
| VDF25-PU-18F | Deep-flat suction cup, 25 mm, Polyurethane, G1/8 female | 15.1 |
| VDF25-PU-14F | Deep-flat suction cup, 25 mm, Polyurethane, G1/4 female | 14.3 |
| VDF25-PU-14M | Deep-flat suction cup, 25 mm, Polyurethane, G1/4 male | 19.1 |
| VDF25-PU-38F | Deep-flat suction cup, 25 mm, Polyurethane, G3/8 female | 23.1 |
| VDF25-PU-38M | Deep-flat suction cup, 25 mm, Polyurethane, G3/8 male | 21.6 |
| VDF25-PU-M10M | Deep-flat suction cup, 25 mm, Polyurethane, M10 male | 17.0 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

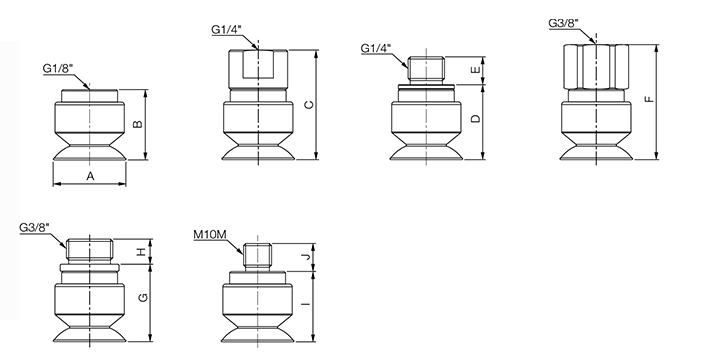

DIMENSIONS:
VDF25
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J |
| Dimension | 26 | 25.2 | 39.2 | 26.8 | 10 | 41.2 | 27.7 | 9 | 25.2 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VDF25-PU-18F | Deep-flat suction cup, 25 mm, Polyurethane, G1/8 female |
| VDF25-PU-14F | Deep-flat suction cup, 25 mm, Polyurethane, G1/4 female |
| VDF25-PU-14M | Deep-flat suction cup, 25 mm, Polyurethane, G1/4 male |
| VDF25-PU-38F | Deep-flat suction cup, 25 mm, Polyurethane, G3/8 female |
| VDF25-PU-38M | Deep-flat suction cup, 25 mm, Polyurethane, G3/8 male |
| VDF25-PU-M10M | Deep-flat suction cup, 25 mm, Polyurethane, M10 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
