GIÁC HÚT CHÂN KHÔNG VMECA SERIES VDF60
VMECA - VDF60
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

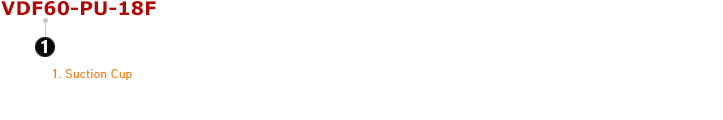

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VDF60-PU-18F | Deep-flat suction cup, 60 mm, Polyurethane, G1/8 female |
| VDF60-PU-14F | Deep-flat suction cup, 60 mm, Polyurethane, G1/4 female |
| VDF60-PU-14M | Deep-flat suction cup, 60 mm, Polyurethane, G1/4 male |
| VDF60-PU-38F | Deep-flat suction cup, 60 mm, Polyurethane, G3/8 female |
| VDF60-PU-38M | Deep-flat suction cup, 60 mm, Polyurethane, G3/8 male |
| VDF60-PU-12F | Deep-flat suction cup, 60 mm, Polyurethane, G1/2 female |
| VDF60-PU-M10M | Deep-flat suction cup, 60 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 63 | 24.0 | 5.60 | 13.70 | 19.0 | 4.30 | 13.80 | 24.50 |
2. Weight
| Part Number | Description | Weight (g) |
| VDF60-PU-18F | Deep-flat suction cup, 60 mm, Polyurethane, G1/8 female | 55.4 |
| VDF60-PU-14F | Deep-flat suction cup, 60 mm, Polyurethane, G1/4 female | 39.5 |
| VDF60-PU-14M | Deep-flat suction cup, 60 mm, Polyurethane, G1/4 male | 59.4 |
| VDF60-PU-38F | Deep-flat suction cup, 60 mm, Polyurethane, G3/8 female | 52.2 |
| VDF60-PU-38M | Deep-flat suction cup, 60 mm, Polyurethane, G3/8 male | 45.0 |
| VDF60-PU-12F | Deep-flat suction cup, 60 mm, Polyurethane, G1/2 female | 34.1 |
| VDF60-PU-M10M | Deep-flat suction cup, 60 mm, Polyurethane, M10 male | 44.3 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

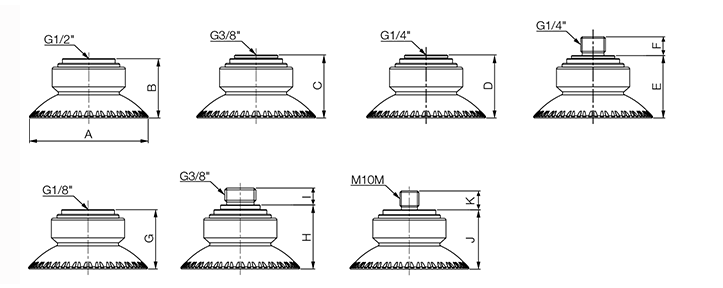

DIMENSIONS:
VDF60
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J | K |
| Dimension | 63 | 31.5 | 33.5 | 33.5 | 33.1 | 10 | 31.5 | 34 | 9 | 31.5 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VDF60-PU-18F | Deep-flat suction cup, 60 mm, Polyurethane, G1/8 female |
| VDF60-PU-14F | Deep-flat suction cup, 60 mm, Polyurethane, G1/4 female |
| VDF60-PU-14M | Deep-flat suction cup, 60 mm, Polyurethane, G1/4 male |
| VDF60-PU-38F | Deep-flat suction cup, 60 mm, Polyurethane, G3/8 female |
| VDF60-PU-38M | Deep-flat suction cup, 60 mm, Polyurethane, G3/8 male |
| VDF60-PU-12F | Deep-flat suction cup, 60 mm, Polyurethane, G1/2 female |
| VDF60-PU-M10M | Deep-flat suction cup, 60 mm, Polyurethane, M10 male |
