GIÁC HÚT CHÂN KHÔNG VMECA SERIES VDF50
VMECA - VDF50
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

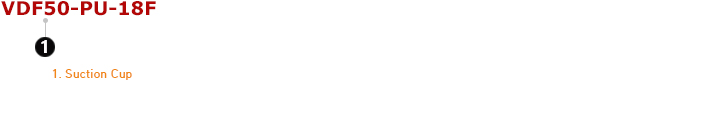

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VDF50-PU-18F | Deep-flat suction cup, 50 mm, Polyurethane, G1/8 female |
| VDF50-PU-14F | Deep-flat suction cup, 50 mm, Polyurethane, G1/4 female |
| VDF50-PU-14M | Deep-flat suction cup, 50 mm, Polyurethane, G1/4 male |
| VDF50-PU-38F | Deep-flat suction cup, 50 mm, Polyurethane, G3/8 female |
| VDF50-PU-38M | Deep-flat suction cup, 50 mm, Polyurethane, G3/8 male |
| VDF50-PU-M10M | Deep-flat suction cup, 50 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 53 | 14.0 | 4.10 | 10.10 | 14.0 | 3.50 | 9.20 | 18.50 |
2. Weight
| Part Number | Description | Weight (g) |
| VDF50-PU-18F | Deep-flat suction cup, 50 mm, Polyurethane, G1/8 female | 40.2 |
| VDF50-PU-14F | Deep-flat suction cup, 50 mm, Polyurethane, G1/4 female | 49.3 |
| VDF50-PU-14M | Deep-flat suction cup, 50 mm, Polyurethane, G1/4 male | 44.2 |
| VDF50-PU-38F | Deep-flat suction cup, 50 mm, Polyurethane, G3/8 female | 38.2 |
| VDF50-PU-38M | Deep-flat suction cup, 50 mm, Polyurethane, G3/8 male | 46.7 |
| VDF50-PU-M10M | Deep-flat suction cup, 50 mm, Polyurethane, M10 male | 40.9 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

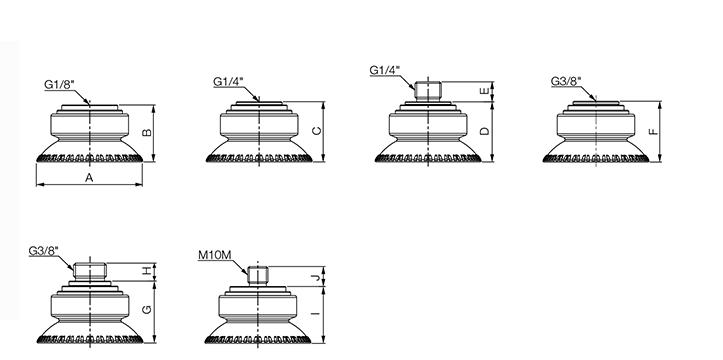

DIMENSIONS:
VDF50
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J |
| Dimension | 53 | 28.5 | 30.2 | 30.1 | 10 | 30.5 | 31 | 9 | 25.8 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VDF50-PU-18F | Deep-flat suction cup, 50 mm, Polyurethane, G1/8 female |
| VDF50-PU-14F | Deep-flat suction cup, 50 mm, Polyurethane, G1/4 female |
| VDF50-PU-14M | Deep-flat suction cup, 50 mm, Polyurethane, G1/4 male |
| VDF50-PU-38F | Deep-flat suction cup, 50 mm, Polyurethane, G3/8 female |
| VDF50-PU-38M | Deep-flat suction cup, 50 mm, Polyurethane, G3/8 male |
| VDF50-PU-M10M | Deep-flat suction cup, 50 mm, Polyurethane, M10 male |
