GIÁC HÚT CHÂN KHÔNG VMECA SERIES VDF100
VMECA - VDF100
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

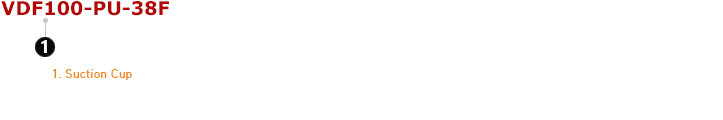

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VDF100-PU-18F | Deep-flat suction cup, 100 mm, Polyurethane, G1/8 female |
| VDF100-PU-14F | Deep-flat suction cup, 100 mm, Polyurethane, G1/4 female |
| VDF100-PU-14M | Deep-flat suction cup, 100 mm, Polyurethane, G1/4 male |
| VDF100-PU-38F | Deep-flat suction cup, 100 mm, Polyurethane, G3/8 female |
| VDF100-PU-38M | Deep-flat suction cup, 100 mm, Polyurethane, G3/8 male |
| VDF100-PU-12F | Deep-flat suction cup, 100 mm, Polyurethane, G1/2 female |
| VDF100-PU-M10M | Deep-flat suction cup, 100 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 103.7 | 94.0 | 12.6 | 30.8 | 41.7 | 12.3 | 28.2 | 39.6 |
2. Weight
| Part Number | Description | Weight (g) |
| VDF100-PU-18F | Deep-flat suction cup, 100 mm, Polyurethane, G1/8 female | 59.4 |
| VDF100-PU-14F | Deep-flat suction cup, 100 mm, Polyurethane, G1/4 female | 57.1 |
| VDF100-PU-14M | Deep-flat suction cup, 100 mm, Polyurethane, G1/4 male | 64.2 |
| VDF100-PU-38F | Deep-flat suction cup, 100 mm, Polyurethane, G3/8 female | 56.5 |
| VDF100-PU-38M | Deep-flat suction cup, 100 mm, Polyurethane, G3/8 male | 64.2 |
| VDF100-PU-12F | Deep-flat suction cup, 100 mm, Polyurethane, G1/2 female | 53.3 |
| VDF100-PU-M10M | Deep-flat suction cup, 100 mm, Polyurethane, M10 male | 63.2 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

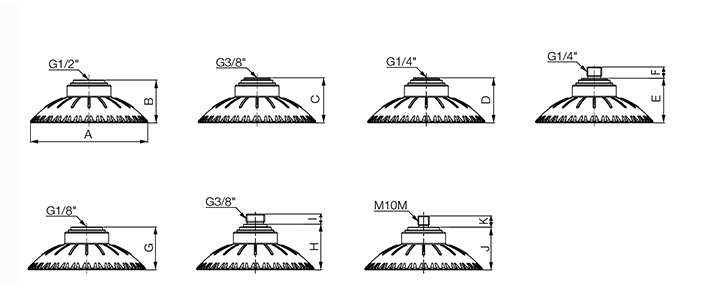

DIMENSIONS:
VDF100
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J | K |
| Dimension | 103.7 | 37.8 | 39.8 | 39.8 | 39.4 | 10 | 37.8 | 40.3 | 9 | 37.8 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VDF100-PU-18F | Deep-flat suction cup, 100 mm, Polyurethane, G1/8 female |
| VDF100-PU-14F | Deep-flat suction cup, 100 mm, Polyurethane, G1/4 female |
| VDF100-PU-14M | Deep-flat suction cup, 100 mm, Polyurethane, G1/4 male |
| VDF100-PU-38F | Deep-flat suction cup, 100 mm, Polyurethane, G3/8 female |
| VDF100-PU-38M | Deep-flat suction cup, 100 mm, Polyurethane, G3/8 male |
| VDF100-PU-12F | Deep-flat suction cup, 100 mm, Polyurethane, G1/2 female |
| VDF100-PU-M10M | Deep-flat suction cup, 100 mm, Polyurethane, M10 male |
