GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU80

Mã sản phẩm : VMECA - VU80

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 19,80 Kg @ -60 kPa • Lực nâng (→): 12,70 Kg @ -60 kPa • Thể tích: 32,00 cm³ • Đường kính: 80 mm • Cốc hút VU có lực nâng tốt có thể đạt được trên các bề mặt phẳng và đối phó với độ cong nhỏ. Kích thước nhỏ có sẵn cho phép cốc hút để xử lý ngay cả các thành phần nhỏ nhất. Ứng dụng: • Linh kiện nhỏ • Chip bán dẫn • Hộp carton • Ứng dụng in ấn

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

BUILD AND ORDER:

1. Suction Cup

Part Number	Description
VU80-N-18F	Universal suction cup, 80 mm, Nitrile (NBR), G1/8 female
VU80-S-18F	Universal suction cup, 80 mm, Silicone, G1/8 female
VU80-WS-18F	Universal suction cup, 80 mm, White silicone, G1/8 female
VU80-WS-18F(FDA)	Universal suction cup, 80 mm, White silicone (FDA), G1/8 female
VU80-HS-18F	Universal suction cup, 80 mm, High-temp silicone, G1/8 female
VU80-CS-18F	Universal suction cup, 80 mm, Conductive silicone, G1/8 female
VU80-U-18F	Universal suction cup, 80 mm, Urethane, G1/8 female
VU80-A-18F	Universal suction cup, 80 mm, Mark free, G1/8 female
VU80-N	Universal suction cup, 80 mm, Nitrile (NBR)
VU80-S	Universal suction cup, 80 mm, Silicone
VU80-WS	Universal suction cup, 80 mm, White silicone
VU80-WS(FDA)	Universal suction cup, 80 mm, White silicone (FDA)
VU80-HS	Universal suction cup, 80 mm, High -temp silicone
VU80-CS	Universal suction cup, 80 mm, Conductive silicone
VU80-U	Universal suction cup, 80 mm, Urethane
VU80-A	Universal suction cup, 80 mm, Mark free

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg			Life Force (→), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa	-20 kPa	-60 kPa	-90 kPa
80	32.00	7.77	19.80	25.21	4.53	12.70	16.94

2. Weight

Part Number	Description	Weight (g)
VU80-N-18F	Universal suction cup, 80 mm, Nitrile (NBR), G1/8 female	35.65
VU80-S-18F	Universal suction cup, 80 mm, Silicone, G1/8 female	30.84
VU80-WS-18F	Universal suction cup, 80 mm, White silicone, G1/8 female	30.83
VU80-WS-18F(FDA)	Universal suction cup, 80 mm, White silicone (FDA), G1/8 female	30.83
VU80-HS-18F	Universal suction cup, 80 mm, High-temp silicone, G1/8 female	31.39
VU80-CS-18F	Universal suction cup, 80 mm, Conductive silicone, G1/8 female	34.1
VU80-U-18F	Universal suction cup, 80 mm, Urethane, G1/8 female	32.98
VU80-A-18F	Universal suction cup, 80 mm, Mark free, G1/8 female	29.3
VU80-N	Universal suction cup, 80 mm, Nitrile (NBR)	33.77
VU80-S	Universal suction cup, 80 mm, Silicone	29.99
VU80-WS	Universal suction cup, 80 mm, White silicone	28.26
VU80-WS(FDA)	Universal suction cup, 80 mm, White silicone (FDA)	28.26
VU80-HS	Universal suction cup, 80 mm, High -temp silicone	29.73
VU80-CS	Universal suction cup, 80 mm, Conductive silicone	32.3
VU80-U	Universal suction cup, 80 mm, Urethane	30.46
VU80-A	Universal suction cup, 80 mm, Mark free	29.3

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
NBR	60	Black	-20 ~ 110
Silicone	55	Red	-70 ~ 200
White Silicone	55	Translucent White	-70 ~ 200
White Silicone (FDA)	55	Translucent White	-70 ~ 200
High Temp. Silicone	50	Blue	-70 ~ 280
Conductive Material	70	Smoky Black	-45 ~ 90
Urethane	60	Dark Green	0 ~ 100
Mark Free	75	Black	-10 ~ 100

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
NBR	Excellent	Excellent	Fair	Good	Fair
Silicone	Good	Poor	Excellent	Good	Poor
White Silicone	Good	Poor	Excellent	Good	Poor
High Temp. Silicone	Good	Poor	Excellent	Good	Poor
Conductive Silicone	Good	Poor	Excellent	Good	Poor
Urethane	Excellent	Excellent	Excellent	Fair	Poor
Mark Free	Good	Excellent	Excellent	Good	Excellent

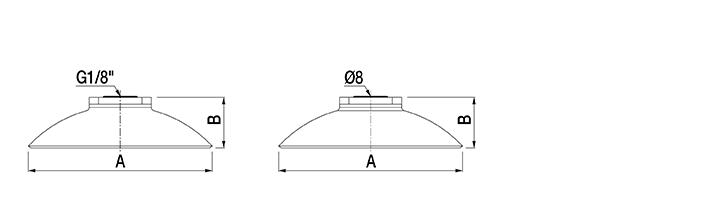

DIMENSIONS:

VU80

Rubber Part

Unit: mm

Legend	A	B
Dimension	80	22

ORDER NUMBER:

Order Numbers

Part Number	Description
VU80-N-18F	Universal suction cup, 80 mm, Nitrile (NBR), G1/8 female
VU80-S-18F	Universal suction cup, 80 mm, Silicone, G1/8 female
VU80-WS-18F	Universal suction cup, 80 mm, White silicone, G1/8 female
VU80-WS-18F(FDA)	Universal suction cup, 80 mm, White silicone (FDA), G1/8 female
VU80-HS-18F	Universal suction cup, 80 mm, High-temp silicone, G1/8 female
VU80-CS-18F	Universal suction cup, 80 mm, Conductive silicone, G1/8 female
VU80-U-18F	Universal suction cup, 80 mm, Urethane, G1/8 female
VU80-A-18F	Universal suction cup, 80 mm, Mark free, G1/8 female
VU80-N	Universal suction cup, 80 mm, Nitrile (NBR)
VU80-S	Universal suction cup, 80 mm, Silicone
VU80-WS	Universal suction cup, 80 mm, White silicone
VU80-WS(FDA)	Universal suction cup, 80 mm, White silicone (FDA)
VU80-HS	Universal suction cup, 80 mm, High -temp silicone
VU80-CS	Universal suction cup, 80 mm, Conductive silicone
VU80-U	Universal suction cup, 80 mm, Urethane
VU80-A	Universal suction cup, 80 mm, Mark free
