GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU40
VMECA - VU40
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 3,97 Kg @ -60 kPa
• Lực nâng (→): 2,24 Kg @ -60 kPa
• Thể tích: 5,50 cm³
• Đường kính: 42 mm
• Cốc hút VU có lực nâng tốt có thể đạt được trên các bề mặt phẳng và đối phó với độ cong nhỏ. Kích thước nhỏ có sẵn cho phép cốc hút để xử lý ngay cả các thành phần nhỏ nhất.
Ứng dụng:
• Linh kiện nhỏ
• Chip bán dẫn
• Hộp carton
• Ứng dụng in ấn
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

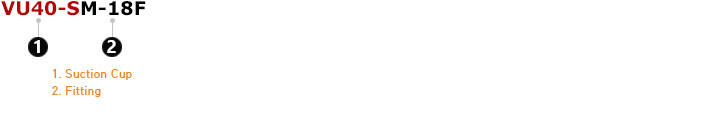

BUILD AND ORDER:
1. Suction cup
| Symbol | Description |
| VU40-N | Universal suction cup, 40 mm, Nitrile (NBR) |
| VU40-S | Universal suction cup, 40 mm, Silicone |
| VU40-WS | Universal suction cup, 40 mm, White silicone |
| VU40-WS(FDA) | Universal suction cup, 40 mm, White silicone (FDA) |
| VU40-HS | Universal suction cup, 40 mm, High-temp silicone |
| VU40-CS | Universal suction cup, 40 mm, Conductive silicone |
| VU40-U | Universal suction cup, 40 mm, Urethane |
| VU40-A | Universal suction cup, 40 mm, Mark free |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-18M | Fitting, Mesh filter, G1/8 male |
| M-14M | Fitting, Mesh filter, G1/4 male |
| 18F | Fitting, G1/8 female |
| 18FX | Fitting, G1/8 female, For silicone cup only |
| 18M | Fitting, G1/8 male |
| 14M | Fitting, G1/4 male |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| 18M-EV | Efficiency valve fitting, G1/8 male |
| 14M-EV | Efficiency valve fitting, G1/4 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 42 | 5.50 | 2.04 | 3.97 | 5.00 | 1.42 | 2.24 | 2.80 |
2. Weight
| Part Number | Description | Weight (g) |
| VU40-N | Universal suction cup, 40 mm, Nitrile (NBR) | 4.77 |
| VU40-S | Universal suction cup, 40 mm, Silicone | 4.51 |
| VU40-WS | Universal suction cup, 40 mm, White silicone | 4.51 |
| VU40-WS(FDA) | Universal suction cup, 40 mm, White silicone (FDA) | 4.51 |
| VU40-HS | Universal suction cup, 40 mm, High-temp silicone | 4.51 |
| VU40-CS | Universal suction cup, 40 mm, Conductive silicone | 4.57 |
| VU40-U | Universal suction cup, 40 mm, Urethane | 4.78 |
| VU40-A | Universal suction cup, 40 mm, Mark Free | 5.85 |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female | 5.72 |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male | 5.07 |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male | 5.88 |
| 350-000-3311 | Fitting, G1/8 female | 5.62 |
| 350-000-3321 | Fitting, G1/8 female, For silicone material cup | 8.46 |
| 350-000-2304 | Fitting, G1/8 male | 4.93 |
| 350-000-3404 | Fitting, G1/4 male | 5.79 |
| 350-010-3311 | Efficiency valve fitting, G1/8 female | 5.86 |
| 350-010-2304 | Efficiency valve fitting, G1/8 male | 5.21 |
| 350-010-3404 | Efficiency valve fitting, G1/4 male | 6.02 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

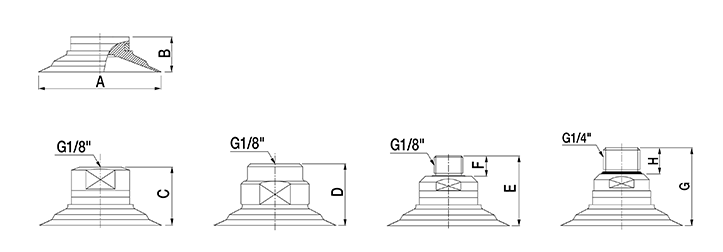

DIMENSIONS:
VU40
|
|
 |
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H |
| Dimension | 42 | 12 | 20 | 21.2 | 24 | 7 | 26.8 | 9 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VU40-NM-18F | Universal cup, 40 mm, Nitrile (NBR), G1/8″ female, Mesh filter |
| VU40-SM-18F | Universal cup, 40 mm, Silicone, G1/8″ female, Mesh filter |
| VU40-WSM-18F | Universal cup, 40 mm, White silicone, G1/8″ female, Mesh filter |
| VU40-WS(FDA)M-18F | Universal cup, 40 mm, White silicone (FDA), G1/8″ female, Mesh filter |
| VU40-HSM-18F | Universal cup, 40 mm, High-temp silicone, G1/8″ female, Mesh filter |
| VU40-CSM-18F | Universal cup, 40 mm, Conductive silicone, G1/8″ female, Mesh filter |
| VU40-UM-18F | Universal cup, 40 mm, Urethane, G1/8″ female, Mesh filter |
| VU40-AM-18F | Universal cup, 40 mm, Mark Free, G1/8″ female, Mesh filter |
| VU40-NM-18M | Universal cup, 40 mm, Nitrile (NBR), G1/8″ male, Mesh filter |
| VU40-SM-18M | Universal cup, 40 mm, Silicone, G1/8″ male, Mesh filter |
| VU40-WSM-18M | Universal cup, 40 mm, White silicone, G1/8″ male, Mesh filter |
| VU40-WS(FDA)M-18M | Universal cup, 40 mm, White silicone (FDA), G1/8″ male, Mesh filter |
| VU40-HSM-18M | Universal cup, 40 mm, High-temp silicone, G1/8″ male, Mesh filter |
| VU40-CSM-18M | Universal cup, 40 mm, Conductive silicone, G1/8″ male, Mesh filter |
| VU40-UM-18M | Universal cup, 40 mm, Urethane, G1/8″ male, Mesh filter |
| VU40-AM-18M | Universal cup, 40 mm, Mark Free, G1/8″ male, Mesh filter |
| VU40-NM-14M | Universal cup, 40 mm, Nitrile (NBR), G1/4″ male, Mesh filter |
| VU40-SM-14M | Universal cup, 40 mm, Silicone, G1/4″ male, Mesh filter |
| VU40-WSM-14M | Universal cup, 40 mm, White silicone, G1/4″ male, Mesh filter |
| VU40-WS(FDA)M-14M | Universal cup, 40 mm, White silicone (FDA), G1/4″ male, Mesh filter |
| VU40-HSM-14M | Universal cup, 40 mm, High-temp silicone, G1/4″ male, Mesh filter |
| VU40-CSM-14M | Universal cup, 40 mm, Conductive silicone, G1/4″ male, Mesh filter |
| VU40-UM-14M | Universal cup, 40 mm, Urethane, G1/4″ male, Mesh filter |
| VU40-AM-14M | Universal cup, 40 mm, Mark Free, G1/4″ male, Mesh filter |
| No Mesh Filter | |
| VU40-N-18F | Universal cup, 40 mm, Nitrile (NBR), G1/8″ female |
| VU40-S-18F | Universal cup, 40 mm, Silicone, G1/8″ female |
| VU40-WS-18F | Universal cup, 40 mm, White silicone, G1/8″ female |
| VU40-WS(FDA)-18F | Universal cup, 40 mm, White silicone (FDA), G1/8″ female |
| VU40-HS-18F | Universal cup, 40 mm, High-temp silicone, G1/8″ female |
| VU40-CS-18F | Universal cup, 40 mm, Conductive silicone, G1/8″ female |
| VU40-U-18F | Universal cup, 40 mm, Urethane, G1/8″ female |
| VU40-A-18F | Universal cup, 40 mm, Mark Free, G1/8″ female |
| VU40-S-18FX | Universal cup, 40 mm, Silicone, G1/8″ female, For silicone cup |
| VU40-WS-18FX | Universal cup, 40 mm, White silicone, G1/8″ female, For silicone cup |
| VU40-WS(FDA)-18FX | Universal cup, 40 mm, White silicone (FDA), G1/8″ female, For silicone cup |
| VU40-HS-18FX | Universal cup, 40 mm, High-temp silicone, G1/8″ female, For silicone cup |
| VU40-N-18M | Universal cup, 40 mm, Nitrile (NBR), G1/8″ male |
| VU40-S-18M | Universal cup, 40 mm, Silicone, G1/8″ male |
| VU40-WS-18M | Universal cup, 40 mm, White silicone, G1/8″ male |
| VU40-WS(FDA)-18M | Universal cup, 40 mm, White silicone (FDA), G1/8″ male |
| VU40-HS-18M | Universal cup, 40 mm, High-temp silicone, G1/8″ male |
| VU40-CS-18M | Universal cup, 40 mm, Conductive silicone, G1/8″ male |
| VU40-U-18M | Universal cup, 40 mm, Urethane, G1/8″ male |
| VU40-A-18M | Universal cup, 40 mm, Mark Free, G1/8″ male |
| VU40-N-14M | Universal cup, 40 mm, Nitrile (NBR), G1/4″ male |
| VU40-S-14M | Universal cup, 40 mm, Silicone, G1/4″ male |
| VU40-WS-14M | Universal cup, 40 mm, White silicone, G1/4″ male |
| VU40-WS(FDA)-14M | Universal cup, 40 mm, White silicone (FDA), G1/4″ male |
| VU40-HS-14M | Universal cup, 40 mm, High-temp silicone, G1/4″ male |
| VU40-CS-14M | Universal cup, 40 mm, Conductive silicone, G1/4″ male |
| VU40-U-14M | Universal cup, 40 mm, Urethane, G1/4″ male |
| VU40-A-14M | Universal cup, 40 mm, Mark Free, G1/4″ male |
| Efficiency Valve Fitting | |
| VU40-N-18F-EV | Universal cup, 40 mm, Nitrile (NBR), G1/8″ female, Efficiency valve |
| VU40-S-18F-EV | Universal cup, 40 mm, Silicone, G1/8″ female, Efficiency valve |
| VU40-WS-18F-EV | Universal cup, 40 mm, White silicone, G1/8″ female, Efficiency valve |
| VU40-WS(FDA)-18F-EV | Universal cup, 40 mm, White silicone (FDA), G1/8″ female, Efficiency valve |
| VU40-HS-18F-EV | Universal cup, 40 mm, High-temp silicone, G1/8″ female, Efficiency valve |
| VU40-CS-18F-EV | Universal cup, 40 mm, Conductive silicone, G1/8″ female, Efficiency valve |
| VU40-U-18F-EV | Universal cup, 40 mm, Urethane, G1/8″ female, Efficiency valve |
| VU40-A-18F-EV | Universal cup, 40 mm, Mark Free, G1/8″ female, Efficiency valve |
| VU40-N-18M-EV | Universal cup, 40 mm, Nitrile (NBR), G1/8″ male, Efficiency valve |
| VU40-S-18M-EV | Universal cup, 40 mm, Silicone, G1/8″ male, Efficiency valve |
| VU40-WS-18M-EV | Universal cup, 40 mm, White silicone, G1/8″ male, Efficiency valve |
| VU40-WS(FDA)-18M-EV | Universal cup, 40 mm, White silicone (FDA), G1/8″ male, Efficiency valve |
| VU40-HS-18M-EV | Universal cup, 40 mm, High-temp silicone, G1/8″ male, Efficiency valve |
| VU40-CS-18M-EV | Universal cup, 40 mm, Conductive silicone, G1/8″ male, Efficiency valve |
| VU40-U-18M-EV | Universal cup, 40 mm, Urethane, G1/8″ male, Efficiency valve |
| VU40-A-18M-EV | Universal cup, 40 mm, Mark Free, G1/8″ male, Efficiency valve |
| VU40-N-14M-EV | Universal cup, 40 mm, Nitrile (NBR), G1/4″ male, Efficiency valve |
| VU40-S-14M-EV | Universal cup, 40 mm, Silicone, G1/4″ male, Efficiency valve |
| VU40-WS-14M-EV | Universal cup, 40 mm, White silicone, G1/4″ male, Efficiency valve |
| VU40-WS(FDA)-14M-EV | Universal cup, 40 mm, White silicone (FDA), G1/4″ male, Efficiency valve |
| VU40-HS-14M-EV | Universal cup, 40 mm, High-temp silicone, G1/4″ male, Efficiency valve |
| VU40-CS-14M-EV | Universal cup, 40 mm, Conductive silicone, G1/4″ male, Efficiency valve |
| VU40-U-14M-EV | Universal cup, 40 mm, Urethane, G1/4″ male, Efficiency valve |
| VU40-A-14M-EV | Universal cup, 40 mm, Mark Free, G1/4″ male, Efficiency valve |
| Rubber Part | |
| VU40-N | Universal suction cup, 40 mm, Nitrile (NBR) |
| VU40-S | Universal suction cup, 40 mm, Silicone |
| VU40-WS | Universal suction cup, 40 mm, White silicone |
| VU40-WS(FDA) | Universal suction cup, 40 mm, White silicone (FDA) |
| VU40-HS | Universal suction cup, 40 mm, High-temp silicone |
| VU40-CS | Universal suction cup, 40 mm, Conductive silicone |
| VU40-U | Universal suction cup, 40 mm, Urethane |
| VU40-A | Universal suction cup, 40 mm, Mark Free |
| Fitting | |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male |
| 350-000-3311 | Fitting, G1/8 female |
| 350-000-3321 | Fitting, G1/8 female, For silicone material cup |
| 350-000-2304 | Fitting, G1/8 male |
| 350-000-3404 | Fitting, G1/4 male |
| 350-010-3311 | Efficiency valve fitting, G1/8 female |
| 350-010-2304 | Efficiency valve fitting, G1/8 male |
| 350-010-3404 | Efficiency valve fitting, G1/4 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
Sản phẩm cùng loại
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU80
0985.288.164
227 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU50
0985.288.164
244 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU30X
0985.288.164
224 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU30
0985.288.164
234 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU25
0985.288.164
230 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU20
0985.288.164
211 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU15
0985.288.164
288 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU10
0985.288.164
212 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU8
0985.288.164
230 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU6
0985.288.164
238 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU4X
0985.288.164
225 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU4
0985.288.164
203 lượt
