GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU6

Mã sản phẩm : VMECA - VU6

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 0,17 Kg @ -60 kPa • Lực nâng (→): 0,15 Kg @ -60 kPa • Thể tích: 0,05 cm³ • Đường kính: 7 mm • Cốc hút VU có lực nâng tốt có thể đạt được trên các bề mặt phẳng và đối phó với độ cong nhỏ. Kích thước nhỏ có sẵn cho phép cốc hút để xử lý ngay cả các thành phần nhỏ nhất. Ứng dụng: • Linh kiện nhỏ • Chip bán dẫn • Hộp carton • Ứng dụng in ấn

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

Chi tiết

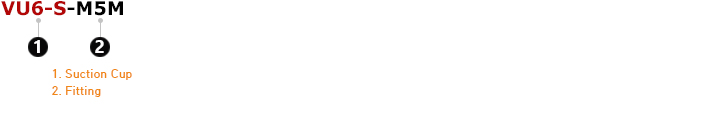

BUILD AND ORDER:

1. Suction cup

Symbol	Description
VU6-N	Universal suction cup, 6 mm, Nitrile (NBR)
VU6-S	Universal suction cup, 6 mm, Silicone
VU6-WS	Universal suction cup, 6 mm, White silicone
VU6-WS(FDA)	Universal suction cup, 6 mm, White silicone (FDA)
VU6-HS	Universal suction cup, 6 mm, High-temp silicone
VU6-CS	Universal suction cup, 6 mm, Conductive silicone
VU6-U	Universal suction cup, 6 mm, Urethane
VU6-A	Universal suction cup, 6 mm, Mark Free

2. Fitting

Symbol	Description
Blank	No fitting
M5M	Fitting, M5 male

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Diameter	Volume	Lifting Force (↑), Kg			Life Force (→), Kg
(mm)	(cm³)	-20 kPa	-60 kPa	-90 kPa	-20 kPa	-60 kPa	-90 kPa
7	0.05	0.05	0.17	0.25	0.03	0.15	0.20

2. Weight

Part Number	Description	Weight (g)
VU6-N	Universal suction cup, 6 mm, Nitrile (NBR)	0.13
VU6-S	Universal suction cup, 6 mm, Silicone	0.12
VU6-WS	Universal suction cup, 6 mm, White silicone	0.11
VU6-WS(FDA)	Universal suction cup, 6 mm, White silicone (FDA)	0.11
VU6-HS	Universal suction cup, 6 mm, High-temp silicone	0.11
VU6-CS	Universal suction cup, 6 mm, Conductive silicone	0.12
VU6-U	Universal suction cup, 6 mm, Urethane	0.13
VU6-A	Universal suction cup, 6 mm, Mark Free	0.14
350-000-3101	Fitting, M5 male	1.84

3. Material Specifications

Material	Hardness Shore (°)	Color	Temperature (℃)
NBR	60	Black	-20 ~ 110
Silicone	55	Red	-70 ~ 200
White Silicone	55	Translucent White	-70 ~ 200
White Silicone (FDA)	55	Translucent White	-70 ~ 200
High Temp. Silicone	50	Blue	-70 ~ 280
Conductive Material	70	Smoky Black	-45 ~ 90
Urethane	60	Dark Green	0 ~ 100
Mark Free	75	Black	-10 ~ 100

4. Material Resistance

Description	Wear Resistance	Oil	Weather/Ozone	Alcohol	Acid
NBR	Excellent	Excellent	Fair	Good	Fair
Silicone	Good	Poor	Excellent	Good	Poor
White Silicone	Good	Poor	Excellent	Good	Poor
High Temp. Silicone	Good	Poor	Excellent	Good	Poor
Conductive Silicone	Good	Poor	Excellent	Good	Poor
Urethane	Excellent	Excellent	Excellent	Fair	Poor
Mark Free	Good	Excellent	Excellent	Good	Excellent

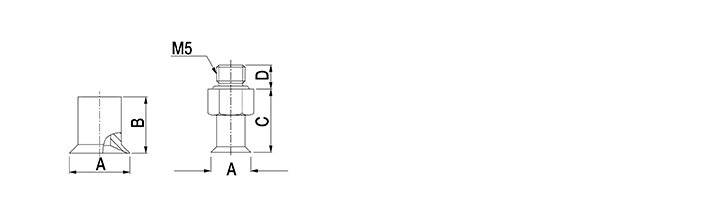

DIMENSIONS:

VU6

M5M

Unit: mm

Legend	A	B	C	D
Dimension	7	6.5	11.1	4.2

ORDER NUMBER:

Order Numbers

Part number	Description
With Fitting
VU6-N-M5M	Universal suction cup, 6 mm, Nitrile (NBR), M5 male
VU6-S-M5M	Universal suction cup, 6 mm, Silicone, M5 male
VU6-WS-M5M	Universal suction cup, 6 mm, White silicone, M5 male
VU6-WS(FDA)-M5M	Universal suction cup, 6 mm, White silicone (FDA), M5 male
VU6-HS-M5M	Universal suction cup, 6 mm, High-temp silicone, M5 male
VU6-CS-M5M	Universal suction cup, 6 mm, Conductive silicone, M5 male
VU6-U-M5M	Universal suction cup, 6 mm, Urethane, M5 male
VU6-A-M5M	Universal suction cup, 6 mm, Mark free, M5 male
Rubber Part
VU6-N	Universal suction cup, 6 mm, Nitrile (NBR)
VU6-S	Universal suction cup, 6 mm, Silicone
VU6-WS	Universal suction cup, 6 mm, White silicone
VU6-WS(FDA)	Universal suction cup, 6 mm, White silicone (FDA)
VU6-HS	Universal suction cup, 6 mm, High-temp silicone
VU6-CS	Universal suction cup, 6 mm, Conductive silicone
VU6-U	Universal suction cup, 6 mm, Urethane
VU6-A	Universal suction cup, 6 mm, Mark free
Fitting
350-000-3101	Fitting, M5 male
