GIÁC HÚT CHÂN KHÔNG VMECA SERIES VU25
VMECA - VU25
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 1,98 Kg @ -60 kPa
• Lực nâng (→): 0,95 Kg @ -60 kPa
• Thể tích: 1,50 cm³
• Đường kính: 27 mm
• Cốc hút VU có lực nâng tốt có thể đạt được trên các bề mặt phẳng và đối phó với độ cong nhỏ. Kích thước nhỏ có sẵn cho phép cốc hút để xử lý ngay cả các thành phần nhỏ nhất.
Ứng dụng:
• Linh kiện nhỏ
• Chip bán dẫn
• Hộp carton
• Ứng dụng in ấn
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

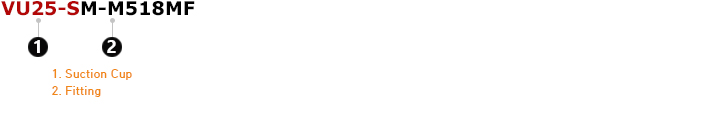

BUILD AND ORDER:
1. Suction cup
| Symbol | Description |
| VU25-N | Universal suction cup, 25 mm, Nitrile (NBR) |
| VU25-S | Universal suction cup, 25 mm, Silicone |
| VU25-WS | Universal suction cup, 25 mm, White silicone |
| VU25-WS(FDA) | Universal suction cup, 25 mm, White silicone (FDA) |
| VU25-HS | Universal suction cup, 25 mm, High-temp silicone |
| VU25-CS | Universal suction cup, 25 mm, Conductive silicone |
| VU25-U | Universal suction cup, 25 mm, Urethane |
| VU25-A | Universal suction cup, 25 mm, Mark Free |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-M518MF | Fitting, Mesh filter, G1/8 male – M5 female |
| 18F | Fitting, G1/8 female |
| M518MF | Fitting, G1/8 male – M5 female |
| M518MFX | Fitting, G1/8 male – M5 female, For silicone cup only |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| M518MF-EV | Efficiency valve fitting, G1/8 male – M5 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 27 | 1.50 | 0.91 | 1.98 | 2.50 | 0.70 | 0.95 | 1.05 |
2. Weight
| Part Number | Description | Weight (g) |
| VU25-N | Universal suction cup, 25 mm, Nitrile (NBR) | 1.45 |
| VU25-S | Universal suction cup, 25 mm, Silicone | 1.45 |
| VU25-WS | Universal suction cup, 25 mm, White silicone | 1.45 |
| VU25-WS(FDA) | Universal suction cup, 25 mm, White silicone (FDA) | 1.45 |
| VU25-HS | Universal suction cup, 25 mm, High-temp silicone | 1.45 |
| VU25-CS | Universal suction cup, 25 mm, Conductive silicone | 1.48 |
| VU25-U | Universal suction cup, 25 mm, Urethane | 1.46 |
| VU25-A | Universal suction cup, 25 mm, Mark Free | 1.77 |
| 350-000-4310 | Fitting, Mesh filter, G1/8 female | 3.30 |
| 350-000-5209 | Fitting, Mesh filter, G1/8 male – M5 female | 1.92 |
| 350-000-3310 | Fitting, G1/8 female | 3.23 |
| 350-000-3209 | Fitting, G1/8 male – M5 female | 1.82 |
| 350-000-3229 | Fitting, G1/8 male – M5 female, For silicone cup only | 3.71 |
| 350-010-3310 | Efficiency valve fitting, G1/8 female | 3.43 |
| 350-010-4209 | Efficiency valve fitting, G1/8 male – M5 female | 1.94 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

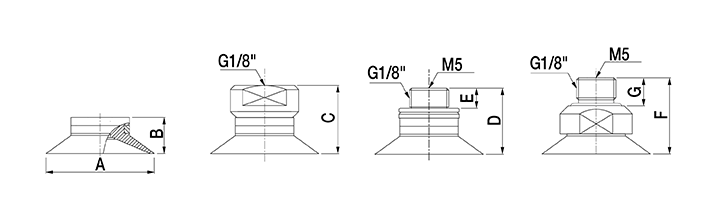

DIMENSIONS:
VU25
|
|
 |
| Unit: mm |
| Legend | A | B | C | D | E | F | G |
| Dimension | 27 | 9 | 17 | 16.5 | 6 | 19 | 7 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VU25-NM-18F | Universal cup, 25 mm, Nitrile (NBR), G1/8″ female, Mesh filter |
| VU25-SM-18F | Universal cup, 25 mm, Silicone, G1/8″ female, Mesh filter |
| VU25-WSM-18F | Universal cup, 25 mm, White silicone, G1/8″ female, Mesh filter |
| VU25-WS(FDA)M-18F | Universal cup, 25 mm, White silicone (FDA), G1/8″ female, Mesh filter |
| VU25-HSM-18F | Universal cup, 25 mm, High-temp silicone, G1/8″ female, Mesh filter |
| VU25-CSM-18F | Universal cup, 25 mm, Conductive silicone, G1/8″ female, Mesh filter |
| VU25-UM-18F | Universal cup, 25 mm, Urethane, G1/8″ female, Mesh filter |
| VU25-AM-18F | Universal cup, 25 mm, Mark free, G1/8″ female, Mesh filter |
| VU25-NM-M518MF | Universal cup, 25 mm, Nitrile (NBR), G1/8″ male-M5 female, Mesh filter |
| VU25-SM-M518MF | Universal cup, 25 mm, Silicone, G1/8″ male-M5 female, Mesh filter |
| VU25-WSM-M518MF | Universal cup, 25 mm, White silicone, G1/8″ male-M5 female, Mesh filter |
| VU25-WS(FDA)M-M518MF | Universal cup, 25 mm, White silicone (FDA), G1/8″ male-M5 female, Mesh filter |
| VU25-HSM-M518MF | Universal cup, 25 mm, High-temp silicone, G1/8″ male-M5 female, Mesh filter |
| VU25-CSM-M518MF | Universal cup, 25 mm, Conductive silicone, G1/8″ male-M5 female, Mesh filter |
| VU25-UM-M518MF | Universal cup, 25 mm, Urethane, G1/8″ male-M5 female, Mesh filter |
| VU25-AM-M518MF | Universal cup, 25 mm, Mark free, G1/8″ male-M5 female, Mesh filter |
| No Mesh Filter | |
| VU25-N-18F | Universal cup, 25 mm, Nitrile (NBR), G1/8″ female |
| VU25-S-18F | Universal cup, 25 mm, Silicone, G1/8″ female |
| VU25-WS-18F | Universal cup, 25 mm, White silicone, G1/8″ female |
| VU25-WS(FDA)-18F | Universal cup, 25 mm, White silicone (FDA), G1/8″ female |
| VU25-HS-18F | Universal cup, 25 mm, High-temp silicone, G1/8″ female |
| VU25-CS-18F | Universal cup, 25 mm, Conductive silicone, G1/8″ female |
| VU25-U-18F | Universal cup, 25 mm, Urethane, G1/8″ female |
| VU25-A-18F | Universal cup, 25 mm, Mark free, G1/8″ female |
| VU25-N-M518MF | Universal cup, 25 mm, Nitrile (NBR), G1/8″ male-M5 female |
| VU25-S-M518MF | Universal cup, 25 mm, Silicone, G1/8″ male-M5 female |
| VU25-WS-M518MF | Universal cup, 25 mm, White silicone, G1/8″ male-M5 female |
| VU25-WS(FDA)-M518MF | Universal cup, 25 mm, White silicone (FDA), G1/8″ male-M5 female |
| VU25-HS-M518MF | Universal cup, 25 mm, High-temp silicone, G1/8″ male-M5 female |
| VU25-CS-M518MF | Universal cup, 25 mm, Conductive silicone, G1/8″ male-M5 female |
| VU25-U-M518MF | Universal cup, 25 mm, Urethane, G1/8″ male-M5 female |
| VU25-A-M518MF | Universal cup, 25 mm, Mark free, G1/8″ male-M5 female |
| VU25-S-M518MFX | Universal cup, 25 mm, Silicone, G1/8″ male-M5 female, For silicone cup only |
| VU25-WS-M518MFX | Universal cup, 25 mm, White sil, G1/8″ male-M5 female, For silicone cup only |
| VU25-WS(FDA)-M518MFX | Universal cup, 25 mm, White sili(FDA), G1/8″ male-M5 female, For silicone cup only |
| VU25-HS-M518MFX | Universal cup, 25 mm, High-temp sil, G1/8″ male-M5 female, For silicone cup only |
| Efficiency Valve Fitting | |
| VU25-N-18F-EV | Universal cup, 25 mm, Nitrile (NBR), G1/8″ female, Efficiency valve |
| VU25-S-18F-EV | Universal cup, 25 mm, Silicone, G1/8″ female, Efficiency valve |
| VU25-WS-18F-EV | Universal cup, 25 mm, White silicone, G1/8″ female, Efficiency valve |
| VU25-WS(FDA)-18F-EV | Universal cup, 25 mm, White silicone (FDA), G1/8″ female, Efficiency valve |
| VU25-HS-18F-EV | Universal cup, 25 mm, High-temp silicone, G1/8″ female, Efficiency valve |
| VU25-CS-18F-EV | Universal cup, 25 mm, Conductive silicone, G1/8″ female, Efficiency valve |
| VU25-U-18F-EV | Universal cup, 25 mm, Urethane, G1/8″ female, Efficiency valve |
| VU25-A-18F-EV | Universal cup, 25 mm, Mark free, G1/8″ female, Efficiency valve |
| VU25-N-M518MF-EV | Universal cup, 25 mm, Nitrile (NBR), G1/8″ male-M5 female, Efficiency valve |
| VU25-S-M518MF-EV | Universal cup, 25 mm, Silicone, G1/8″ male-M5 female, Efficiency valve |
| VU25-WS-M518MF-EV | Universal cup, 25 mm, White silicone, G1/8″ male-M5 female, Efficiency valve |
| VU25-WS(FDA)-M518MF-EV | Universal cup, 25 mm, White silicone (FDA), G1/8″ male-M5 female, Efficiency valve |
| VU25-HS-M518MF-EV | Universal cup, 25 mm, High-temp silicone, G1/8″ male-M5 female, Efficiency valve |
| VU25-CS-M518MF-EV | Universal cup, 25 mm, Conductive silicone, G1/8″ male-M5 female, Efficiency valve |
| VU25-U-M518MF-EV | Universal cup, 25 mm, Urethane, G1/8″ male-M5 female, Efficiency valve |
| VU25-A-M518MF-EV | Universal cup, 25 mm, Mark free, G1/8″ male-M5 female, Efficiency valve |
| Rubber Part | |
| VU25-N | Universal suction cup, 25 mm, Nitrile (NBR) |
| VU25-S | Universal suction cup, 25 mm, Silicone |
| VU25-WS | Universal suction cup, 25 mm, White silicone |
| VU25-WS(FDA) | Universal suction cup, 25 mm, White silicone (FDA) |
| VU25-HS | Universal suction cup, 25 mm, High-temp silicone |
| VU25-CS | Universal suction cup, 25 mm, Conductive silicone |
| VU25-U | Universal suction cup, 25 mm, Urethane |
| VU25-A | Universal suction cup, 25 mm, Mark free |
| Fitting | |
| 350-000-4310 | Fitting, Mesh filter, G1/8 female |
| 350-000-5209 | Fitting, Mesh filter, G1/8 male – M5 female |
| 350-000-3310 | Fitting, G1/8 female |
| 350-000-3209 | Fitting, G1/8 male – M5 female |
| 350-000-3229 | Fitting, G1/8 male – M5 female, For silicone cup only |
| 350-010-3310 | Efficiency valve fitting, G1/8 female |
| 350-010-4209 | Efficiency valve fitting, G1/8 male – M5 female |
