BỘ KẸP CHÂN KHÔNG VMECA SERIES GM130
VMECA - GM130
VMECA - KOREA
V-Grip: Bọt Pad
Mức chân không tối đa: -75 kPa
Tốc độ dòng chảy tối đa: 2.896 Nl / phút
Tiêu thụ không khí: 832 Nl / phút
Chiều rộng: 130 mm
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

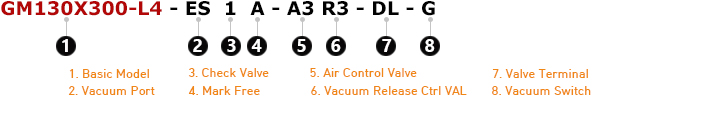

► SƠ ĐỒ CHỌN MÃ KẸP CHÂN KHÔNG VMECA SERIES GM130:
1. Basic Model
| Code | Description |
| GM130X220-LC2 | Vacuum gripper, V-grip GM series, 2-midi cartridge, Foam pad, 130 x 220 mm |
| GM130X220-LC3 | Vacuum gripper, V-grip GM series, 3-midi cartridge, Foam pad, 130 x 220 mm |
| GM130X220-LC4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 220 mm |
| GM130X300-L2 | Vacuum gripper, V-grip GM series, 2-midi cartridge, Foam pad, 130 x 300 mm |
| GM130X300-L3 | Vacuum gripper, V-grip GM series, 3-midi cartridge, Foam pad, 130 x 300 mm |
| GM130X300-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 300 mm |
| GM130X400-L2 | Vacuum gripper, V-grip GM series, 2-midi cartridge, Foam pad, 130 x 400 mm |
| GM130X400-L3 | Vacuum gripper, V-grip GM series, 3-midi cartridge, Foam pad, 130 x 400 mm |
| GM130X400-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 400 mm |
| GM130X500-L2 | Vacuum gripper, V-grip GM series, 2-midi cartridge, Foam pad, 130 x 500 mm |
| GM130X500-L3 | Vacuum gripper, V-grip GM series, 3-midi cartridge, Foam pad, 130 x 500 mm |
| GM130X500-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 500 mm |
| GM130X600-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 600 mm |
| GM130X600-L6 | Vacuum gripper, V-grip GM series, 6-midi cartridge, Foam pad, 130 x 600 mm |
| GM130X600-L8 | Vacuum gripper, V-grip GM series, 8-midi cartridge, Foam pad, 130 x 600 mm |
| GM130X800-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 800 mm |
| GM130X800-L6 | Vacuum gripper, V-grip GM series, 6-midi cartridge, Foam pad, 130 x 800 mm |
| GM130X800-L8 | Vacuum gripper, V-grip GM series, 8-midi cartridge, Foam pad, 130 x 800 mm |
| GM130X1000-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 1014 mm |
| GM130X1000-L6 | Vacuum gripper, V-grip GM series, 6-midi cartridge, Foam pad, 130 x 1014 mm |
| GM130X1000-L8 | Vacuum gripper, V-grip GM series, 8-midi cartridge, Foam pad, 130 x 1014 mm |
| GM130X1200-L4 | Vacuum gripper, V-grip GM series, 4-midi cartridge, Foam pad, 130 x 1200 mm |
| GM130X1200-L6 | Vacuum gripper, V-grip GM series, 6-midi cartridge, Foam pad, 130 x 1200 mm |
| GM130X1200-L8 | Vacuum gripper, V-grip GM series, 8-midi cartridge, Foam pad, 130 x 1200 mm |
2. Vacuum Port
| Code | Description |
| EL | Oval shape suction hole |
| ES | Round shape suction hole |
3. Check Valve
| Code | Description |
| 1 | For non-leakage applications |
| 2 | For leakage rate 1~10% applications |
4. Mark Free
| Code | Description |
| Blank | No mark free option |
| A | Mark Free |
5. Air Control Valve
| Code | Description |
| Blank | No air control valve |
| A1 | Air control valve, AC 110V |
| A2 | Air control valve, AC 220V |
| A3 | Air control valve, DC 24V |
6. Vacuum Release Control Valve
| Code | Description |
| Blank | No vacuum release control valve |
| R1 | Vacuum release control valve, AC 110V |
| R2 | Vacuum release control valve, AC 220V |
| R3 | Vacuum release control valve, DC 24V |
7. Valve Terminal
| Code | Description |
| Blank | No air & vacuum release control valves |
| DN | Solenoid terminal, DIN type, No lead wire |
| DL | Solenoid terminal, DIN type, No lead wire, Lamp |
| CL | Solenoid terminal, Connector type, 30 cm lead wire |
| ☛ Option “CL” is available only with DC 24V. |
8. Vacuum Switch
| Code | Description |
| Blank | No vacuum switch |
| S2 | Digital switch, No analog supply, M8-4-pin, NPN |
| S2P | Digital switch, No analog supply, M8-4-pin, PNP |
| SG2 | Digital switch, No analog supply, 2 m lead wire, NPN |
| SG2P | Digital switch, No analog supply, 2 m lead wire, PNP |
| SG3 | Digital switch, Analog supply, 2 m lead wire, NPN |
| SG3P | Digital switch, Analog supply, 2 m lead wire, PNP |
► Phụ tùng:
1. Air Control Valve
| Part Number | Description |
| VMS14-3-1 | 2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type |
| VMS14-3-2 | 2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type, Lamp |
| VMS14-3-3 | 2/2-way sol valve, G1/4″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp |
| VMS14-2-1 | 2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type |
| VMS14-2-2 | 2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type, Lamp |
| VMS14-1-1 | 2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type |
| VMS14-1-2 | 2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type, Lamp |
| MS18-3-1 | 2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type |
| MS18-3-2 | 2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type, Lamp |
| MS18-3-3 | 2/2-way sol valve, G1/8″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp |
| MS18-2-1 | 2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type |
| MS18-2-2 | 2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type, Lamp |
| MS18-1-1 | 2/2-way sol valve, G1/8″ Inlet, AC 110V, DIN type |
2. Vacuum Switch & Gauge
| Part Number | Description |
| VTG-18+N | Vacuum Gauge, Dial Type, Mounting Nut |
| VP20V-01-F1-C | Digital switch, No analog supply, M8-4-pin connector, NPN (S2) |
| VP20V-03-F1-C | Digital switch, No analog supply, M8-4-pin connector, PNP (S2P) |
| VP20V-01-F1 | Digital switch, No analog supply, 2 m lead wire, NPN (SG2) |
| VP20V-03-F1 | Digital switch, No analog supply, 2 m lead wire, PNP (SG2P) |
| VP20V-01-F1-A | Digital switch, Analog supply, 2 m lead wire, NPN (SG3) |
| VP20V-03-F1-A | Digital switch, Analog supply, 2 m lead wire, PNP (SG3P) |
3. Vacuum Cartridge
| Part Number | Description |
| VC303 | Midi vacuum cartridge, 3-stage |
4. Other Parts
| Part Number | Description |
| Sponge Foam | Call |
