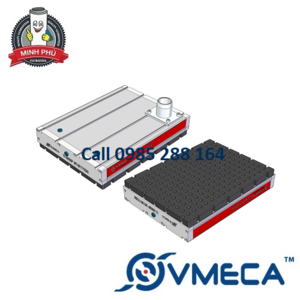

BỘ KẸP CHÂN KHÔNG VMECA SERIES GF300

Mã sản phẩm : VMECA - GF300

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

V-Grip: Bọt Pad Yêu cầu một máy bơm chân không bên ngoài riêng biệt Chiều rộng: 304 mm

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

► SƠ ĐỒ CHỌN MÃ KẸP CHÂN KHÔNG VMECA SERIES GF130:

1. Basic Model

Code	Description
GF300X300	Vacuum gripper, V-grip GF series, External vac pump, Foam pad, 300x300mm
GF300X400	Vacuum gripper, V-grip GF series, External vac pump, Foam pad, 300x400mm
GF300X600	Vacuum gripper, V-grip GF series, External vac pump, Foam pad, 300x600mm
GF300X800	Vacuum gripper, V-grip GF series, External vac pump, Foam pad, 300x800mm
GF300X1000	Vacuum gripper, V-grip GF series, External vac pump, Foam pad, 300x1000mm
GF300X1200	Vacuum gripper, V-grip GF series, External vac pump, Foam pad, 300x1200mm

2. Vacuum Port

Code	Description
ES	Standard, Fixed Nozzle Size, Narrow Spacing
AW	Adjustable Nozzle Size, Wide Spacing

3. Vacuum Release Control Valve

Code	Description
Blank	No vacuum release control valve
R1	Vacuum release control valve, AC 110V
R2	Vacuum release control valve, AC 220V
R3	Vacuum release control valve, DC 24V

4. Valve Terminal

Code	Description
Blank	No air & vacuum release control valves
DN	Solenoid terminal, DIN type, No lead wire
DL	Solenoid terminal, DIN type, No lead wire, Lamp
CL	Solenoid terminal, Connector type, 30 cm lead wire
	☛ Option “CL” is available only with DC 24V.

5. Vacuum Switch

Code	Description
Blank	No vacuum switch
S2	Digital switch, No analog supply, M8-4-pin, NPN
S2P	Digital switch, No analog supply, M8-4-pin, PNP
SG2	Digital switch, No analog supply, 2 m lead wire, NPN
SG2P	Digital switch, No analog supply, 2 m lead wire, PNP
SG3	Digital switch, Analog supply, 2 m lead wire, NPN
SG3P	Digital switch, Analog supply, 2 m lead wire, PNP

► Phụ tùng:

1. Air Control Valve

Part Number	Description
MS18-3-1	2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type
MS18-3-2	2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type, Lamp
MS18-3-3	2/2-way sol valve, G1/8″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp
MS18-2-1	2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type
MS18-2-2	2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type, Lamp
MS18-1-1	2/2-way sol valve, G1/8″ Inlet, AC 110V, DIN type

2. Vacuum Switch & Gauge

Part Number	Description
VTG-18+N	Vacuum Gauge, Dial Type, Mounting Nut
VP20V-01-F1-C	Digital switch, No analog supply, M8-4-pin connector, NPN (S2)
VP20V-03-F1-C	Digital switch, No analog supply, M8-4-pin connector, PNP (S2P)
VP20V-01-F1	Digital switch, No analog supply, 2 m lead wire, NPN (SG2)
VP20V-03-F1	Digital switch, No analog supply, 2 m lead wire, PNP (SG2P)
VP20V-01-F1-A	Digital switch, Analog supply, 2 m lead wire, NPN (SG3)
VP20V-03-F1-A	Digital switch, Analog supply, 2 m lead wire, PNP (SG3P)
