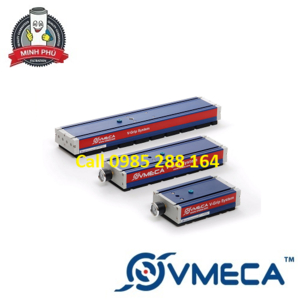

BỘ KẸP CHÂN KHÔNG VMECA SERIES G130
VMECA - G130
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164
► SƠ ĐỒ CHỌN MÃ KẸP CHÂN KHÔNG VMECA SERIES G130:
1. Basic Model
Symbol | Description |
G130X220-L2 | Vacuum gripper, V-grip G series, 2-midi cartridge, Foam pad, 130x220mm |
G130X220-L3 | Vacuum gripper, V-grip G series, 3-midi cartridge, Foam pad, 130x220mm |
G130X220-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x220mm |
G130X300-L2 | Vacuum gripper, V-grip G series, 2-midi cartridge, Foam pad, 130x300mm |
G130X300-L3 | Vacuum gripper, V-grip G series, 3-midi cartridge, Foam pad, 130x300mm |
G130X300-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x300mm |
G130X400-L2 | Vacuum gripper, V-grip G series, 2-midi cartridge, Foam pad, 130x400mm |
G130X400-L3 | Vacuum gripper, V-grip G series, 3-midi cartridge, Foam pad, 130x400mm |
G130X400-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x400mm |
G130X500-L2 | Vacuum gripper, V-grip G series, 2-midi cartridge, Foam pad, 130x500mm |
G130X500-L3 | Vacuum gripper, V-grip G series, 3-midi cartridge, Foam pad, 130x500mm |
G130X500-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x500mm |
G130X600-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x600mm |
G130X600-L6 | Vacuum gripper, V-grip G series, 6-midi cartridge, Foam pad, 130x600mm |
G130X600-L8 | Vacuum gripper, V-grip G series, 8-midi cartridge, Foam pad, 130x600mm |
G130X700-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x700mm |
G130X700-L6 | Vacuum gripper, V-grip G series, 6-midi cartridge, Foam pad, 130x700mm |
G130X700-L8 | Vacuum gripper, V-grip G series, 8-midi cartridge, Foam pad, 130x700mm |
G130X800-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x800mm |
G130X800-L6 | Vacuum gripper, V-grip G series, 6-midi cartridge, Foam pad, 130x800mm |
G130X800-L8 | Vacuum gripper, V-grip G series, 8-midi cartridge, Foam pad, 130x800mm |
G130X900-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x900mm |
G130X900-L6 | Vacuum gripper, V-grip G series, 6-midi cartridge, Foam pad, 130x900mm |
G130X900-L8 | Vacuum gripper, V-grip G series, 8-midi cartridge, Foam pad, 130x900mm |
G130X1014-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x1014mm |
G130X1014-L6 | Vacuum gripper, V-grip G series, 6-midi cartridge, Foam pad, 130x1014mm |
G130X1014-L8 | Vacuum gripper, V-grip G series, 8-midi cartridge, Foam pad, 130x1014mm |
G130X1200-L4 | Vacuum gripper, V-grip G series, 4-midi cartridge, Foam pad, 130x1200mm |
G130X1200-L6 | Vacuum gripper, V-grip G series, 6-midi cartridge, Foam pad, 130x1200mm |
G130X1200-L8 | Vacuum gripper, V-grip G series, 8-midi cartridge, Foam pad, 130x1200mm |
2. Vacuum Port
Symbol | Description |
ES1 | Standard, Fixed 1mm Nozzle Size, Narrow Spacing |
ES2 | Standard, Fixed 2mm Nozzle Size, Narrow Spacing |
AW | Adjustable Nozzle Size, Wide Spacing |
3. Air Control Valve
Symbol | Description |
Blank | No air control valve |
A1 | Air control valve, AC 110V |
A2 | Air control valve, AC 220V |
A3 | Air control valve, DC 24V |
4. Vacuum Release Control Valve
Symbol | Description |
Blank | No vacuum release control valve |
R1 | Vacuum release control valve, AC 110V |
R2 | Vacuum release control valve, AC 220V |
R3 | Vacuum release control valve, DC 24V |
5. Valve Terminal
Symbol | Description |
Blank | No air & vacuum release control valves |
DN | Solenoid terminal, DIN type, No lead wire |
DL | Solenoid terminal, DIN type, No lead wire, Lamp |
CL | Solenoid terminal, Connector type, 30 cm lead wire |
☛ Option “CL” is available only with DC 24V. |
6. Vacuum Switch
Symbol | Description |
Blank | No vacuum switch |
S2 | Digital switch, No analog supply, M8-4-pin, NPN |
S2P | Digital switch, No analog supply, M8-4-pin, PNP |
SG2 | Digital switch, No analog supply, 2 m lead wire, NPN |
SG2P | Digital switch, No analog supply, 2 m lead wire, PNP |
SG3 | Digital switch, Analog supply, 2 m lead wire, NPN |
SG3P | Digital switch, Analog supply, 2 m lead wire, PNP |
► Phụ tùng:
1. Air Control Valve
Part Number | Description |
VMS14-3-1 | 2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type |
VMS14-3-2 | 2/2-way sol valve, G1/4″ Inlet, DC 24V, DIN type, Lamp |
VMS14-3-3 | 2/2-way sol valve, G1/4″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp |
VMS14-2-1 | 2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type |
VMS14-2-2 | 2/2-way sol valve, G1/4″ Inlet, AC 220V, DIN type, Lamp |
VMS14-1-1 | 2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type |
VMS14-1-2 | 2/2-way sol valve, G1/4″ Inlet, AC 110V, DIN type, Lamp |
MS18-3-1 | 2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type |
MS18-3-2 | 2/2-way sol valve, G1/8″ Inlet, DC 24V, DIN type, Lamp |
MS18-3-3 | 2/2-way sol valve, G1/8″ Inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp |
MS18-2-1 | 2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type |
MS18-2-2 | 2/2-way sol valve, G1/8″ Inlet, AC 220V, DIN type, Lamp |
MS18-1-1 | 2/2-way sol valve, G1/8″ Inlet, AC 110V, DIN type |
2. Vacuum Switch & Gauge
Part Number | Description |
VTG-18+N | Vacuum Gauge, Dial Type, Mounting Nut |
VP20V-01-F1-C | Digital switch, No analog supply, M8-4-pin connector, NPN (S2) |
VP20V-03-F1-C | Digital switch, No analog supply, M8-4-pin connector, PNP (S2P) |
VP20V-01-F1 | Digital switch, No analog supply, 2 m lead wire, NPN (SG2) |
VP20V-03-F1 | Digital switch, No analog supply, 2 m lead wire, PNP (SG2P) |
VP20V-01-F1-A | Digital switch, Analog supply, 2 m lead wire, NPN (SG3) |
VP20V-03-F1-A | Digital switch, Analog supply, 2 m lead wire, PNP (SG3P) |
3. Vacuum Cartridge
Part Number | Description |
VC303 | Midi vacuum cartridge, 3-stage |
4. Other Parts
Part Number | Description |
Sponge Foam | Call |
