CẢM BIẾN ÁP SUẤT VP32 -VMECA KOREA
VP32 - VMECA
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164
Cảm biến áp suất chân không là một loại cảm biến áp suất có chức năng ở đầu chân không của áp suất. Mục đích chính của cảm biến áp suất chân không là theo dõi trạng thái chân không và mở hoặc đóng kết nối khi có sự thay đổi về mức độ chân không.

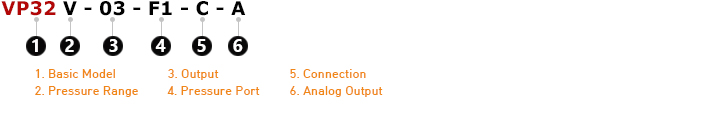

1. Basic Model
| Symbol | Description |
| VP32 | Digital vacuum switch, VP32 series |
2. Pressure Range
| Symbol | Description |
| P | Positive pressure, 0 ~ 100 kPa |
| V | Negative pressure, -101.3 ~ 0 kPa |
| C | Compound pressure, 0 ~ 1000 kPa |
3. Output
| Symbol | Description |
| 010 | 2-NPN output |
| 030 | 2-PNP output |
4. Pressure Port
| Symbol | Description |
| F1 | PT 1/8 male, M5 female connector |
5. Connection
| Symbol | Description |
| Blank | 2 m lead-wire |
| C | M8-4pin male |
6. Analog Output
| Symbol | Description |
| Blank | No analog output |
| A | 1~5V analog output: Only for wire type |
General Specifications
| Model | V32P | V32V | V32C | |
| Pressure range | 0 ~ 1,000 kPa | -101.3 ~ 10 kPa | -101 ~ 101 kPa | |
| Withstand pressure | 1,500 kPa | 500 kPa | 500 kPa | |
| Fluid | Filtered air, Non-corrosive, Non-flammable gas | |||
| Set pressure resolution | kPa | – | 0.1 | 0.1 |
| MPa | 0.001 | – | – | |
| Kgf/cm² | 0.01 | 0.001 | 0.001 | |
| bar | 0.01 | 0.001 | 0.001 | |
| psi | 0.1 | 0.01 | 0.01 | |
| inHg | – | 0.1 | 0.1 | |
| mmHg | – | 1 | 1 | |
| Power supply voltage | 12 to 24V DC±10%, Ripple (P-P) 10% or less | |||
| Current consumption | ≤40mA (With no load) | |||
| Switch output | Output type | 2-NPN or 2-PNP open collector | ||
| Max. load current | 125 mA | |||
| Max. supply voltage | 30V DC @ NPN output, 24V DC @ PNP output | |||
| Residual voltage | ≤1.5V | |||
| Response time | ≤2.5 ms (Chattering-proof function: 25, 100, 250, 500, 1000, 1500 ms selections) | |||
| Output short prot. | Yes | |||
| Analog output | Voltage output | 1 ~ 5 V (±2.5%) | ||
| Voltage impedance | About 1 Ω | |||
| Linearity | ±1% F.S. | |||
| Display | LED Display | 4 digit, 7 segment (red) | ||
| Switch ON indicator | Out-1 red/ Out-2 green | |||
| Updates time | About 0.2 s | |||
| Indicator accuracy | ±2% F.S. ±1 digit (ambient temperature: 25±3℃) | |||
| Repeatability (Switch output) | ±0.2% F.S. ±1 digit | |||
| Environment | Enclosure | IP40 | ||
| Operation temp. | 0 ~ 50℃ | |||
| Storage ambient temp. | -10 ~ 60℃ (No condensation or freezing) | |||
| Ambient voltage | 35 ~ 85% RH (No condensation) | |||
| Withstand voltage | 1000V AC in -1min (between case and lead wire) | |||
| Insulation resistance | 500 MΩ (at 500V DC, between case and lead wire) | |||
| Vibration | Total amplitude 1.5mm or 10G, 10~55 Hz scan for 1-min, 2-hour each direction of X, Y, and Z | |||
| Shock | 980 m/s² (10G), 3-time each in direction of X, Y, and Z | |||
| Temperature characteristic | ±2% F.S. of detected pressure (25℃) at temp. range of 0 ~ 50℃ | |||
| Port size | M5 | |||
| Lead wire | 26 AWG, UL AWM 20276, 1000 mm | |||
| Weight | 80 g (with 2-meter lead wire) | |||
| VP32: NPN output |
 |
| VP32: NPN output with Analog output |
 |
| VP32: PNP output |
 |
| VP32: PNP output with Analog output |
 |
Dimensions

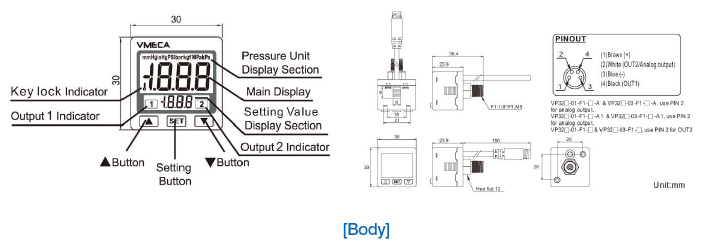

| VP32: Body |

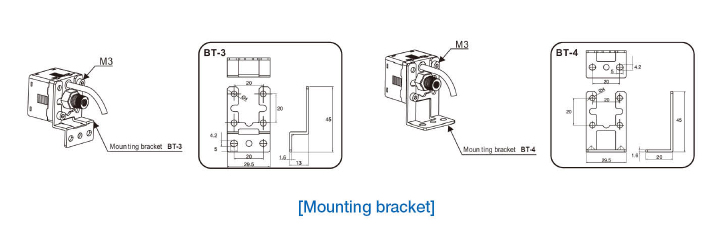

| VP32: Mounting bracket |

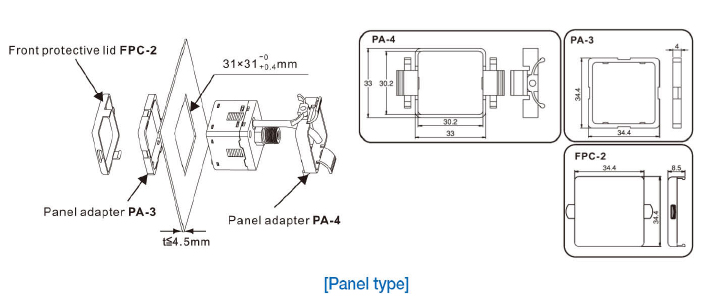

| VP32: Panel Type |
VP32 series switches
| Part Number | Description |
| VP32C-01-F1 | Vacuum switch, 2-color LED-display, NPN 2-output, No analog supply, 2m lead-wire |
| VP32C-01-F1-C | Vacuum switch, 2-color LED-display, NPN 2-output, No analog supply, M8 4-pin male |
| VP32C-01-F1-A | Vacuum switch, 2-color LED-display, NPN 2-output, Analog supply, 2m lead-wire |
| VP32C-03-F1 | Vacuum switch, 2-color LED-display, PNP 2-output, No analog supply, 2m lead-wire |
| VP32C-03-F1-C | Vacuum switch, 2-color LED-display, PNP 2-output, No analog supply, M8 4-pin male |
| VP32C-03-F1-A | Vacuum switch, 2-color LED-display, PNP 2-output, Analog supply, 2m lead-wire |
| VP32V-01-F1 | Vacuum switch, 2-color LED-display, NPN 2-output, No analog supply, 2m lead-wire |
| VP32V-01-F1-C | Vacuum switch, 2-color LED-display, NPN 2-output, No analog supply, M8 4-pin male |
| VP32V-01-F1-A | Vacuum switch, 2-color LED-display, NPN 2-output, Analog supply, 2m lead-wire |
| VP32V-03-F1 | Vacuum switch, 2-color LED-display, PNP 2-output, No analog supply, 2m lead-wire |
| VP32V-03-F1-C | Vacuum switch, 2-color LED-display, PNP 2-output, No analog supply, M8 4-pin male |
| VP32V-03-F1-A | Vacuum switch, 2-color LED-display, PNP 2-output, Analog supply, 2m lead-wire |
| VP32P-01-F1 | Vacuum switch, 2-color LED-display, NPN 2-output, No analog supply, 2m lead-wire |
| VP32P-01-F1-C | Vacuum switch, 2-color LED-display, NPN 2-output, No analog supply, M8 4-pin male |
| VP32P-01-F1-A | Vacuum switch, 2-color LED-display, NPN 2-output, Analog supply, 2m lead-wire |
| VP32P-03-F1 | Vacuum switch, 2-color LED-display, PNP 2-output, No analog supply, 2m lead-wire |
| VP32P-03-F1-C | Vacuum switch, 2-color LED-display, PNP 2-output, No analog supply, M8 4-pin male |
| VP32P-03-F1-A | Vacuum switch, 2-color LED-display, PNP 2-output, Analog supply, 2m lead-wire |
| VCM8-4-2 | M8-female connector, 4-Pin & 2m lead-wire |
| Bracket D | Mounting bracket kit, for direct installtion, BT-1 & BT-2 |
| Bracket E | Mounting bracket kit, for panel installation, FPC-1, PA-1, & PA-2 |
