GIÁC HÚT CHÂN KHÔNG VMECA SERIES VD90F
VMECA - VD90F
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

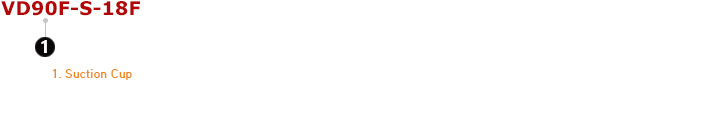

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VD90F-PU-18F | Deep-curved suction cup, 90 mm, Polyurethane, G1/8 female |
| VD90F-PU-14F | Deep-curved suction cup, 90 mm, Polyurethane, G1/4 female |
| VD90F-PU-38F | Deep-curved suction cup, 90 mm, Polyurethane, G3/8 female |
| VD90F-PU-12F | Deep-curved suction cup, 90 mm, Polyurethane, G1/2 female |
| VD90F-PU-H19 | Deep-curved suction cup, 90 mm, Polyurethane, 19Ø hole |
| VD90F-PU-M10M | Deep-curved suction cup, 90 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Lift Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 89.5 | 56.0 | 9.25 | 24.36 | 32.17 | 7.97 | 14.42 | 18.15 |
2. Weight
| Part Number | Description | Weight (g) |
| VD90F-PU-18F | Deep-curved suction cup, 90 mm, Polyurethane, G1/8 female | 65.5 |
| VD90F-PU-14F | Deep-curved suction cup, 90 mm, Polyurethane, G1/4 female | 63.1 |
| VD90F-PU-38F | Deep-curved suction cup, 90 mm, Polyurethane, G3/8 female | 60.1 |
| VD90F-PU-12F | Deep-curved suction cup, 90 mm, Polyurethane, G1/2 female | 59.9 |
| VD90F-PU-H19 | Deep-curved suction cup, 90 mm, Polyurethane, 19Ø hole | 49.2 |
| VD90F-PU-M10M | Deep-curved suction cup, 90 mm, Polyurethane, M10 male | 57.7 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

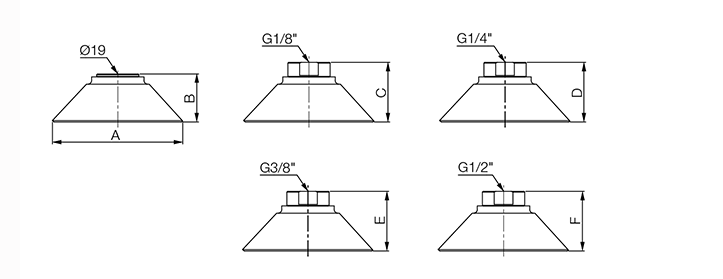

DIMENSIONS:
VD90F
|
| Unit: mm |
| Legend | A | B | C | D | E | F |
| Dimension | 89.5 | 33 | 41 | 41 | 41 | 41 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VD90F-PU-18F | Deep-curved suction cup, 90 mm, Polyurethane, G1/8 female |
| VD90F-PU-14F | Deep-curved suction cup, 90 mm, Polyurethane, G1/4 female |
| VD90F-PU-38F | Deep-curved suction cup, 90 mm, Polyurethane, G3/8 female |
| VD90F-PU-12F | Deep-curved suction cup, 90 mm, Polyurethane, G1/2 female |
| VD90F-PU-H19 | Deep-curved suction cup, 90 mm, Polyurethane, 19Ø hole |
| VD90F-PU-M10M | Deep-curved suction cup, 90 mm, Polyurethane, M10 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
