GIÁC HÚT CHÂN KHÔNG VMECA SERIES VD85X
VMECA - VD85X
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

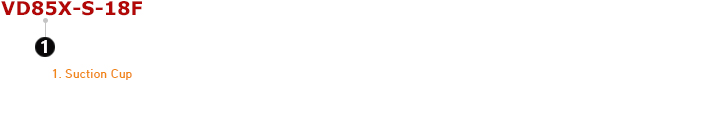

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VD85X-N-18F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/8 female |
| VD85X-S-18F | Deep-curved suction cup, 85 mm, Silicone, G1/8 female |
| VD85X-WS-18F | Deep-curved suction cup, 85 mm, White silicone, G1/8 female |
| VD85X-WS-18F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/8 female |
| VD85X-HS-18F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/8 female |
| VD85X-CS-18F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/8 female |
| VD85X-U-18F | Deep-curved suction cup, 85 mm, Urethane, G1/8 female |
| VD85X-A-18F | Deep-curved suction cup, 85 mm, Mark free, G1/8 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Lift Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 88 | 68.00 | 10.00 | 28.00 | 39.00 | 6.00 | 16.80 | 23.40 |
2. Weight
| Part Number | Description | Weight (g) |
| VD85X-N-18F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/8 female | 85.25 |
| VD85X-S-18F | Deep-curved suction cup, 85 mm, Silicone, G1/8 female | 83.31 |
| VD85X-WS-18F | Deep-curved suction cup, 85 mm, White silicone, G1/8 female | 82.81 |
| VD85X-WS-18F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/8 female | 82.81 |
| VD85X-HS-18F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/8 female | 88.15 |
| VD85X-CS-18F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/8 female | 84.42 |
| VD85X-U-18F | Deep-curved suction cup, 85 mm, Urethane, G1/8 female | 88.32 |
| VD85X-A-18F | Deep-curved suction cup, 85 mm, Mark free, G1/8 female | 92.1 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

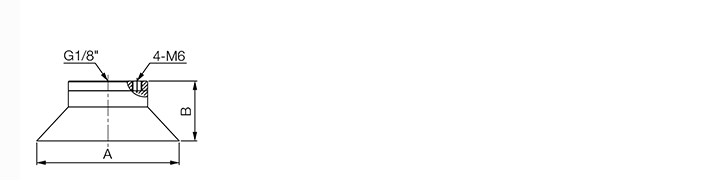

DIMENSIONS:
VD85X
|
| Unit: mm |
| Legend | A | B |
| Dimension | 88 | 37 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VD85X-N-18F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/8 female |
| VD85X-S-18F | Deep-curved suction cup, 85 mm, Silicone, G1/8 female |
| VD85X-WS-18F | Deep-curved suction cup, 85 mm, White silicone, G1/8 female |
| VD85X-WS-18F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/8 female |
| VD85X-HS-18F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/8 female |
| VD85X-CS-18F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/8 female |
| VD85X-U-18F | Deep-curved suction cup, 85 mm, Urethane, G1/8 female |
| VD85X-A-18F | Deep-curved suction cup, 85 mm, Mark free, G1/8 female |
