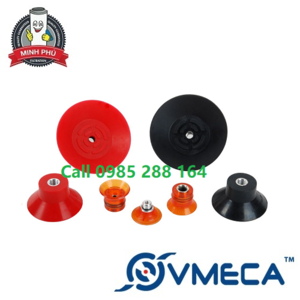

GIÁC HÚT CHÂN KHÔNG VMECA SERIES VD85
VMECA - VD85
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 28,00 Kg @ -60 kPa
• Lực nâng (→): 16,8 Kg @ -60 kPa
• Thể tích: 60,0 cm³
• Đường kính: 85 mmm
• Cốc hút VD được sử dụng lý tưởng cho các vật thể tròn. Với hình dạng của cốc hút, nó có thể kẹp và chuyển sản phẩm một cách mạnh mẽ và hiệu quả.
Ứng dụng:
• Nhưng tâm kim loại
• Veneer tấm
• Ván ép
• Hộp carton
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

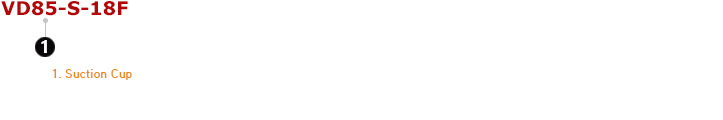

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VD85-N-18F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/8 female |
| VD85-S-18F | Deep-curved suction cup, 85 mm, Silicone, G1/8 female |
| VD85-WS-18F | Deep-curved suction cup, 85 mm, White silicone, G1/8 female |
| VD85-WS-18F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/8 female |
| VD85-HS-18F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/8 female |
| VD85-CS-18F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/8 female |
| VD85-U-18F | Deep-curved suction cup, 85 mm, Urethane, G1/8 female |
| VD85-A-18F | Deep-curved suction cup, 85 mm, Mark free, G1/8 female |
| VD85-N-12F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/2 female |
| VD85-S-12F | Deep-curved suction cup, 85 mm, Silicone, G1/2 female |
| VD85-WS-12F | Deep-curved suction cup, 85 mm, White silicone, G1/2 female |
| VD85-WS-12F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/2 female |
| VD85-HS-12F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/2 female |
| VD85-CS-12F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/2 female |
| VD85-U-12F | Deep-curved suction cup, 85 mm, Urethane, G1/2 female |
| VD85-A-12F | Deep-curved suction cup, 85 mm, Mark free, G1/2 female |
| VD85-N-M8M | Deep-curved suction cup, 85 mm, Nitrile (NBR), M8 male |
| VD85-S-M8M | Deep-curved suction cup, 85 mm, Silicone, M8 male |
| VD85-WS-M8M | Deep-curved suction cup, 85 mm, White silicone, M8 male |
| VD85-WS-M8M(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), M8 male |
| VD85-HS-M8M | Deep-curved suction cup, 85 mm, High-temp silicone, M8 male |
| VD85-CS-M8M | Deep-curved suction cup, 85 mm, Conductive silicone, M8 male |
| VD85-U-M8M | Deep-curved suction cup, 85 mm, Urethane, M8 male |
| VD85-A-M8M | Deep-curved suction cup, 85 mm, Mark free, M8 male |
| VD85-N-M10M | Deep-curved suction cup, 85 mm, Nitrile (NBR), M10 male |
| VD85-S-M10M | Deep-curved suction cup, 85 mm, Silicone, M10 male |
| VD85-WS-M10M | Deep-curved suction cup, 85 mm, White silicone, M10 male |
| VD85-WS-M10M(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), M10 male |
| VD85-HS-M10M | Deep-curved suction cup, 85 mm, High-temp silicone, M10 male |
| VD85-CS-M10M | Deep-curved suction cup, 85 mm, Conductive silicone, M10 male |
| VD85-U-M10M | Deep-curved suction cup, 85 mm, Urethane, M10 male |
| VD85-A-M10M | Deep-curved suction cup, 85 mm, Mark free, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Lift Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 85 | 60.0 | 10.0 | 28.0 | 39.0 | 6.0 | 16.8 | 23.4 |
2. Weight
| Part Number | Description | Weight (g) |
| VD85-N-18F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/8 female | 65.0 |
| VD85-S-18F | Deep-curved suction cup, 85 mm, Silicone, G1/8 female | 60.7 |
| VD85-WS-18F | Deep-curved suction cup, 85 mm, White silicone, G1/8 female | 63.2 |
| VD85-WS-18F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/8 female | 63.2 |
| VD85-HS-18F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/8 female | 67.2 |
| VD85-CS-18F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/8 female | 67.4 |
| VD85-U-18F | Deep-curved suction cup, 85 mm, Urethane, G1/8 female | 67.4 |
| VD85-A-18F | Deep-curved suction cup, 85 mm, Mark free, G1/8 female | 71.6 |
| VD85-N-12F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/2 female | 55.7 |
| VD85-S-12F | Deep-curved suction cup, 85 mm, Silicone, G1/2 female | 52.9 |
| VD85-WS-12F | Deep-curved suction cup, 85 mm, White silicone, G1/2 female | 54.1 |
| VD85-WS-12F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/2 female | 54.1 |
| VD85-HS-12F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/2 female | 57.6 |
| VD85-CS-12F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/2 female | 63.2 |
| VD85-U-12F | Deep-curved suction cup, 85 mm, Urethane, G1/2 female | 65.0 |
| VD85-A-12F | Deep-curved suction cup, 85 mm, Mark free, G1/2 female | 67.0 |
| VD85-N-M8M | Deep-curved suction cup, 85 mm, Nitrile (NBR), M8 male | 67.9 |
| VD85-S-M8M | Deep-curved suction cup, 85 mm, Silicone, M8 male | 64.6 |
| VD85-WS-M8M | Deep-curved suction cup, 85 mm, White silicone, M8 male | 66.0 |
| VD85-WS-M8M(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), M8 male | 66.0 |
| VD85-HS-M8M | Deep-curved suction cup, 85 mm, High-temp silicone, M8 male | 70.3 |
| VD85-CS-M8M | Deep-curved suction cup, 85 mm, Conductive silicone, M8 male | 67.3 |
| VD85-U-M8M | Deep-curved suction cup, 85 mm, Urethane, M8 male | 70.4 |
| VD85-A-M8M | Deep-curved suction cup, 85 mm, Mark free, M8 male | 73.4 |
| VD85-N-M10M | Deep-curved suction cup, 85 mm, Nitrile (NBR), M10 male | 69.8 |
| VD85-S-M10M | Deep-curved suction cup, 85 mm, Silicone, M10 male | 66.4 |
| VD85-WS-M10M | Deep-curved suction cup, 85 mm, White silicone, M10 male | 67.8 |
| VD85-WS-M10M(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), M10 male | 67.8 |
| VD85-HS-M10M | Deep-curved suction cup, 85 mm, High-temp silicone, M10 male | 72.2 |
| VD85-CS-M10M | Deep-curved suction cup, 85 mm, Conductive silicone, M10 male | 69.2 |
| VD85-U-M10M | Deep-curved suction cup, 85 mm, Urethane, M10 male | 72.4 |
| VD85-A-M10M | Deep-curved suction cup, 85 mm, Mark free, M10 male | 75.5 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

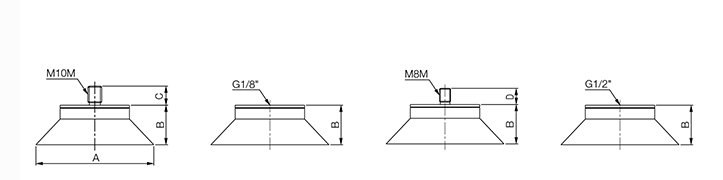

DIMENSIONS:
VD85
|
| Unit: mm |
| Legend | A | B | C | D |
| Dimension | 85 | 28.8 | 13.7 | 11.6 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VD85-N-18F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/8 female |
| VD85-S-18F | Deep-curved suction cup, 85 mm, Silicone, G1/8 female |
| VD85-WS-18F | Deep-curved suction cup, 85 mm, White silicone, G1/8 female |
| VD85-WS-18F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/8 female |
| VD85-HS-18F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/8 female |
| VD85-CS-18F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/8 female |
| VD85-U-18F | Deep-curved suction cup, 85 mm, Urethane, G1/8 female |
| VD85-A-18F | Deep-curved suction cup, 85 mm, Mark free, G1/8 female |
| VD85-N-12F | Deep-curved suction cup, 85 mm, Nitrile (NBR), G1/2 female |
| VD85-S-12F | Deep-curved suction cup, 85 mm, Silicone, G1/2 female |
| VD85-WS-12F | Deep-curved suction cup, 85 mm, White silicone, G1/2 female |
| VD85-WS-12F(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), G1/2 female |
| VD85-HS-12F | Deep-curved suction cup, 85 mm, High-temp silicone, G1/2 female |
| VD85-CS-12F | Deep-curved suction cup, 85 mm, Conductive silicone, G1/2 female |
| VD85-U-12F | Deep-curved suction cup, 85 mm, Urethane, G1/2 female |
| VD85-A-12F | Deep-curved suction cup, 85 mm, Mark free, G1/2 female |
| VD85-N-M8M | Deep-curved suction cup, 85 mm, Nitrile (NBR), M8 male |
| VD85-S-M8M | Deep-curved suction cup, 85 mm, Silicone, M8 male |
| VD85-WS-M8M | Deep-curved suction cup, 85 mm, White silicone, M8 male |
| VD85-WS-M8M(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), M8 male |
| VD85-HS-M8M | Deep-curved suction cup, 85 mm, High-temp silicone, M8 male |
| VD85-CS-M8M | Deep-curved suction cup, 85 mm, Conductive silicone, M8 male |
| VD85-U-M8M | Deep-curved suction cup, 85 mm, Urethane, M8 male |
| VD85-A-M8M | Deep-curved suction cup, 85 mm, Mark free, M8 male |
| VD85-N-M10M | Deep-curved suction cup, 85 mm, Nitrile (NBR), M10 male |
| VD85-S-M10M | Deep-curved suction cup, 85 mm, Silicone, M10 male |
| VD85-WS-M10M | Deep-curved suction cup, 85 mm, White silicone, M10 male |
| VD85-WS-M10M(FDA) | Deep-curved suction cup, 85 mm, White silicone (FDA), M10 male |
| VD85-HS-M10M | Deep-curved suction cup, 85 mm, High-temp silicone, M10 male |
| VD85-CS-M10M | Deep-curved suction cup, 85 mm, Conductive silicone, M10 male |
| VD85-U-M10M | Deep-curved suction cup, 85 mm, Urethane, M10 male |
| VD85-A-M10M | Deep-curved suction cup, 85 mm, Mark free, M10 male |
