GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL40B
VMECA - VBL40B
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

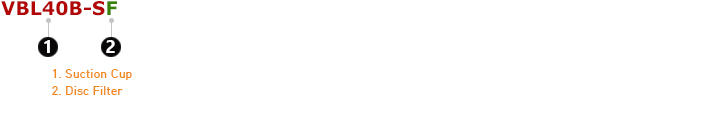

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VBL40B-N | Multi-bellows suction cup, 40 mm, Nitrile |
| VBL40B-S | Multi-bellows suction cup, 40 mm, Silicone |
| VBL40B-WS | Multi-bellows suction cup, 40 mm, White silicone |
| VBL40B-WS3(FDA) | Multi-bellows suction cup, 40 mm, White silicone 30˚ (FDA) |
| VBL40B-WS5(FDA) | Multi-bellows suction cup, 40 mm, White silicone 55˚ (FDA) |
| VBL40B-HS | Multi-bellows suction cup, 40 mm, High-temp silicone |
| VBL40B-CS | Multi-bellows suction cup, 40 mm, Conductive |
| VBL40B-U | Multi-bellows suction cup, 40 mm, Urethane |
2. Disc Filter
| Symbol | Description |
| Blank | No disc filter |
| F | Disc filter |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | |
| (mm) | (cm³) | -20 kPa | -60 kPa |
| 42 | 26.00 | 1.90 | 4.30 |
2. Weight
| Part Number | Description | Weight (g) |
| VBL40B-N | Multi-bellows suction cup, 40 mm, Nitrile | 9.87 |
| VBL40B-S | Multi-bellows suction cup, 40 mm, Silicone | 8.23 |
| VBL40B-WS | Multi-bellows suction cup, 40 mm, White silicone | 8.11 |
| VBL40B-WS3(FDA) | Multi-bellows suction cup, 40 mm, White silicone 30˚ (FDA) | 11.31 |
| VBL40B-WS5(FDA) | Multi-bellows suction cup, 40 mm, White silicone 55˚ (FDA) | 11.31 |
| VBL40B-HS | Multi-bellows suction cup, 40 mm, High-temp silicone | 9.29 |
| VBL40B-CS | Multi-bellows suction cup, 40 mm, Conductive | 9.35 |
| VBL40B-U | Multi-bellows suction cup, 40 mm, Urethane | 10.51 |
| VTFE-BL40B | Disc filter, Polyethylene | 0.87 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |

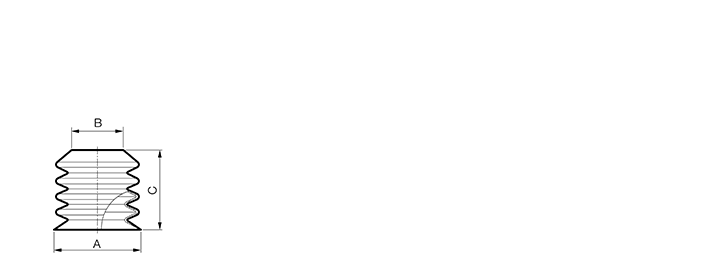

DIMENSIONS:
VBL40B
|
| Unit: mm |
| Legend | A | B | C |
| Dimension | 42 | 38.5 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VBL40B-N | Multi-bellows suction cup, 40 mm, Nitrile |
| VBL40B-S | Multi-bellows suction cup, 40 mm, Silicone |
| VBL40B-WS | Multi-bellows suction cup, 40 mm, White silicone |
| VBL40B-WS3(FDA) | Multi-bellows suction cup, 40 mm, White silicone 30˚ (FDA) |
| VBL40B-WS5(FDA) | Multi-bellows suction cup, 40 mm, White silicone 55˚ (FDA) |
| VBL40B-HS | Multi-bellows suction cup, 40 mm, High-temp silicone |
| VBL40B-CS | Multi-bellows suction cup, 40 mm, Conductive |
| VBL40B-U | Multi-bellows suction cup, 40 mm, Urethane |
| VTFE-BL40B | Disc filter, Polyethylene |
