GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL40
VMECA - VBL40
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 3,60 Kg @ -60 kPa
• Thể tích: 27,0 cm³
• Đường kính: 40 mm
• Cốc hút VBL tốt ở những khu vực có bề mặt hơi lồi, bù đến một mức độ chênh lệch chiều cao nhất định và tách vật liệu mỏng. Chiếc cốc hút này có thể đối phó với mức độ chênh lệch chiều cao tăng lên và nó đặc biệt tốt để xử lý các vật thể mỏng manh.
Ứng dụng:
• Vật dễ vỡ
•Trứng
•Sản phẩm thực phẩm tổng hợp
•Tấm nhựa
•Cốc thủy tinh
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

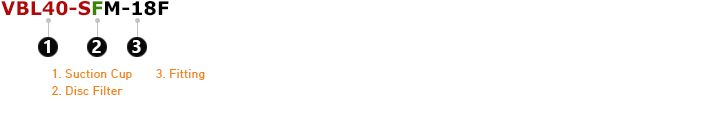

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VBL40-N | Multi-bellows suction cup, 40 mm, Nitrile |
| VBL40-S | Multi-bellows suction cup, 40 mm, Silicone |
| VBL40-WS | Multi-bellows suction cup, 40 mm, White silicone |
| VBL40-WS(FDA) | Multi-bellows suction cup, 40 mm, White silicone (FDA) |
| VBL40-HS | Multi-bellows suction cup, 40 mm, High-temp silicone |
| VBL40-CS | Multi-bellows suction cup, 40 mm, Conductive |
| VBL40-U | Multi-bellows suction cup, 40 mm, Urethane |
| VBL40-A | Multi-bellows suction cup, 40 mm, Mark free |
2. Disc Filter
| Symbol | Description |
| Blank | No disc filter |
| F | Disc filter |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-18M | Fitting, Mesh filter, G1/8 male |
| M-14M | Fitting, Mesh filter, G1/4 male |
| 18F | Fitting, G1/8 female |
| 18M | Fitting, G1/8 male |
| 14M | Fitting, G1/4 male |
| 18FB | Fitting, G1/8 female, For silicone cup only |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| 18M-EV | Efficiency valve fitting, G1/8 male |
| 14M-EV | Efficiency valve fitting, G1/4 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | |
| (mm) | (cm³) | -20 kPa | -60 kPa |
| 40 | 27.0 | 1.40 | 3.60 |
2. Weight
| Part Number | Description | Weight (g) |
| VBL40-N | Multi-bellows suction cup, 40 mm, Nitrile | 12.08 |
| VBL40-S | Multi-bellows suction cup, 40 mm, Silicone | 11.42 |
| VBL40-WS | Multi-bellows suction cup, 40 mm, White silicone | 11.31 |
| VBL40-WS(FDA) | Multi-bellows suction cup, 40 mm, White silicone (FDA) | 11.31 |
| VBL40-HS | Multi-bellows suction cup, 40 mm, High-temp silicone | 11.38 |
| VBL40-CS | Multi-bellows suction cup, 40 mm, Conductive | 11.39 |
| VBL40-U | Multi-bellows suction cup, 40 mm, Urethane | 12.99 |
| VBL40-A | Multi-bellows suction cup, 40 mm, Mark free | 13.09 |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female | 5.73 |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male | 5.04 |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male | 5.92 |
| 350-000-3311 | Fitting, G1/8 female | 5.68 |
| 350-000-2304 | Fitting, G1/8 male | 4.93 |
| 350-000-3404 | Fitting, G1/4 male | 5.88 |
| 350-000-3331 | Fitting, G1/8 female, For silicone cup only | 9.78 |
| 350-010-3311 | Efficiency valve fitting, G1/8 female | 5.63 |
| 350-010-2304 | Efficiency valve fitting, G1/8 male | 5.08 |
| 350-010-3404 | Efficiency valve fitting, G1/4 male | 6.03 |
| VTFE-BL40 | Disc filter, Polyethylene | 0.87 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

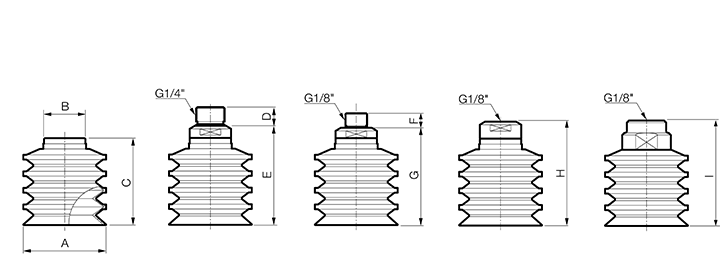

DIMENSIONS:
VBL40
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I |
| Dimension | 40 | 20 | 42 | 9 | 48 | 7 | 47 | 50 | 51 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VBL40-NM-18F | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/8 female, Mesh filter |
| VBL40-SM-18F | Multi-bellows cup, 40 mm, Silicone, G1/8 female, Mesh filter |
| VBL40-WSM-18F | Multi-bellows cup, 40 mm, White silicone, G1/8 female, Mesh filter |
| VBL40-WS(FDA)M-18F | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 female, Mesh filter |
| VBL40-HSM-18F | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 female, Mesh filter |
| VBL40-CSM-18F | Multi-bellows cup, 40 mm, Conductive silicone, G1/8 female, Mesh filter |
| VBL40-UM-18F | Multi-bellows cup, 40 mm, Urethane, G1/8 female, Mesh filter |
| VBL40-AM-18F | Multi-bellows cup, 40 mm, Mark free, G1/8 female, Mesh filter |
| VBL40-NM-18M | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/8 male, Mesh filter |
| VBL40-SM-18M | Multi-bellows cup, 40 mm, Silicone, G1/8 male, Mesh filter |
| VBL40-WSM-18M | Multi-bellows cup, 40 mm, White silicone, G1/8 male, Mesh filter |
| VBL40-WS(FDA)M-18M | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 male, Mesh filter |
| VBL40-HSM-18M | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 male, Mesh filter |
| VBL40-CSM-18M | Multi-bellows cup, 40 mm, Conductive silicone, G1/8 male, Mesh filter |
| VBL40-UM-18M | Multi-bellows cup, 40 mm, Urethane, G1/8 male, Mesh filter |
| VBL40-AM-18M | Multi-bellows cup, 40 mm, Mark free, G1/8 male, Mesh filter |
| VBL40-NM-14M | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/4 male, Mesh filter |
| VBL40-SM-14M | Multi-bellows cup, 40 mm, Silicone, G1/4 male, Mesh filter |
| VBL40-WSM-14M | Multi-bellows cup, 40 mm, White silicone, G1/4 male, Mesh filter |
| VBL40-WS(FDA)M-14M | Multi-bellows cup, 40 mm, White silicone (FDA), G1/4 male, Mesh filter |
| VBL40-HSM-14M | Multi-bellows cup, 40 mm, High-temp silicone, G1/4 male, Mesh filter |
| VBL40-CSM-14M | Multi-bellows cup, 40 mm, Conductive silicone, G1/4 male, Mesh filter |
| VBL40-UM-14M | Multi-bellows cup, 40 mm, Urethane, G1/4 male, Mesh filter |
| VBL40-AM-14M | Multi-bellows cup, 40 mm, Mark free, G1/4 male, Mesh filter |
| No Mesh Filter | |
| VBL40-N-18F | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/8 female |
| VBL40-S-18F | Multi-bellows cup, 40 mm, Silicone, G1/8 female |
| VBL40-WS-18F | Multi-bellows cup, 40 mm, White silicone, G1/8 female |
| VBL40-WS(FDA)-18F | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 female |
| VBL40-HS-18F | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 female |
| VBL40-CS-18F | Multi-bellows cup, 40 mm, Conductive silicone, G1/8 female |
| VBL40-U-18F | Multi-bellows cup, 40 mm, Urethane, G1/8 female |
| VBL40-A-18F | Multi-bellows cup, 40 mm, Mark free, G1/8 female |
| VBL40-S-18FB | Multi-bellows cup, 40 mm, Silicone, G1/8 female, For silicone cup only |
| VBL40-WS-18FB | Multi-bellows cup, 40 mm, White silicone, G1/8 female, For silicone cup only |
| VBL40-WS(FDA)-18FB | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 female, For silicone cup only |
| VBL40-HS-18FB | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 female, For silicone cup only |
| VBL40-N-18M | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/8 male |
| VBL40-S-18M | Multi-bellows cup, 40 mm, Silicone, G1/8 male |
| VBL40-WS-18M | Multi-bellows cup, 40 mm, White silicone, G1/8 male |
| VBL40-WS(FDA)-18M | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 male |
| VBL40-HS-18M | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 male |
| VBL40-CS-18M | Multi-bellows cup, 40 mm, Conductive silicone, G1/8 male |
| VBL40-U-18M | Multi-bellows cup, 40 mm, Urethane, G1/8 male |
| VBL40-A-18M | Multi-bellows cup, 40 mm, Mark free, G1/8 male |
| VBL40-N-14M | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/4 male |
| VBL40-S-14M | Multi-bellows cup, 40 mm, Silicone, G1/4 male |
| VBL40-WS-14M | Multi-bellows cup, 40 mm, White silicone, G1/4 male |
| VBL40-WS(FDA)-14M | Multi-bellows cup, 40 mm, White silicone (FDA), G1/4 male |
| VBL40-HS-14M | Multi-bellows cup, 40 mm, High-temp silicone, G1/4 male |
| VBL40-CS-14M | Multi-bellows cup, 40 mm, Conductive silicone, G1/4 male |
| VBL40-U-14M | Multi-bellows cup, 40 mm, Urethane, G1/4 male |
| VBL40-A-14M | Multi-bellows cup, 40 mm, Mark free, G1/4 male |
| Efficiency Valve Fitting | |
| VBL40-N-18F-EV | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/8 female, Efficiency valve |
| VBL40-S-18F-EV | Multi-bellows cup, 40 mm, Silicone, G1/8 female, Efficiency valve |
| VBL40-WS-18F-EV | Multi-bellows cup, 40 mm, White silicone, G1/8 female, Efficiency valve |
| VBL40-WS(FDA)-18F-EV | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 female, Efficiency valve |
| VBL40-HS-18F-EV | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 female, Efficiency valve |
| VBL40-CS-18F-EV | Multi-bellows cup, 40 mm, Conductive silicone, G1/8 female, Efficiency valve |
| VBL40-U-18F-EV | Multi-bellows cup, 40 mm, Urethane, G1/8 female, Efficiency valve |
| VBL40-A-18F-EV | Multi-bellows cup, 40 mm, Mark free, G1/8 female, Efficiency valve |
| VBL40-N-18M-EV | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/8 male, Efficiency valve |
| VBL40-S-18M-EV | Multi-bellows cup, 40 mm, Silicone, G1/8 male, Efficiency valve |
| VBL40-WS-18M-EV | Multi-bellows cup, 40 mm, White silicone, G1/8 male, Efficiency valve |
| VBL40-WS(FDA)-18M-EV | Multi-bellows cup, 40 mm, White silicone (FDA), G1/8 male, Efficiency valve |
| VBL40-HS-18M-EV | Multi-bellows cup, 40 mm, High-temp silicone, G1/8 male, Efficiency valve |
| VBL40-CS-18M-EV | Multi-bellows cup, 40 mm, Conductive silicone, G1/8 male, Efficiency valve |
| VBL40-U-18M-EV | Multi-bellows cup, 40 mm, Urethane, G1/8 male, Efficiency valve |
| VBL40-A-18M-EV | Multi-bellows cup, 40 mm, Mark free, G1/8 male, Efficiency valve |
| VBL40-N-14M-EV | Multi-bellows cup, 40 mm, Nitrile (NBR), G1/4 male, Efficiency valve |
| VBL40-S-14M-EV | Multi-bellows cup, 40 mm, Silicone, G1/4 male, Efficiency valve |
| VBL40-WS-14M-EV | Multi-bellows cup, 40 mm, White silicone, G1/4 male, Efficiency valve |
| VBL40-WS(FDA)-14M-EV | Multi-bellows cup, 40 mm, White silicone (FDA), G1/4 male, Efficiency valve |
| VBL40-HS-14M-EV | Multi-bellows cup, 40 mm, High-temp silicone, G1/4 male, Efficiency valve |
| VBL40-CS-14M-EV | Multi-bellows cup, 40 mm, Conductive silicone, G1/4 male, Efficiency valve |
| VBL40-U-14M-EV | Multi-bellows cup, 40 mm, Urethane, G1/4 male, Efficiency valve |
| VBL40-A-14M-EV | Multi-bellows cup, 40 mm, Mark free, G1/4 male, Efficiency valve |
| Rubber Part | |
| VBL40-N | Multi-bellows suction cup, 40 mm, Nitrile (NBR) |
| VBL40-S | Multi-bellows suction cup, 40 mm, Silicone |
| VBL40-WS | Multi-bellows suction cup, 40 mm, White silicone |
| VBL40-WS(FDA) | Multi-bellows suction cup, 40 mm, White silicone (FDA) |
| VBL40-HS | Multi-bellows suction cup, 40 mm, High-temp silicone |
| VBL40-CS | Multi-bellows suction cup, 40 mm, Conductive silicone |
| VBL40-U | Multi-bellows suction cup, 40 mm, Urethane |
| VBL40-A | Multi-bellows suction cup, 40 mm, Mark free |
| Disc Filter | |
| VTFE-BL40 | Disc filter, Polyethylene |
| Fitting | |
| 350-000-4311 | Fitting, Mesh filter, G1/8 female |
| 350-000-4304 | Fitting, Mesh filter, G1/8 male |
| 350-000-3804 | Fitting, Mesh filter, G1/4 male |
| 350-000-3311 | Fitting, G1/8 female |
| 350-000-3321 | Fitting, G1/8 female, For silicone cup only |
| 350-000-2304 | Fitting, G1/8 male |
| 350-000-3404 | Fitting, G1/4 male |
| 350-010-3311 | Efficiency valve fitting, G1/8 female |
| 350-010-2304 | Efficiency valve fitting, G1/8 male |
| 350-010-3404 | Efficiency valve fitting, G1/4 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
Sản phẩm cùng loại
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL50
0985.288.164
181 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL40B
0985.288.164
195 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL35M
0985.288.164
207 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL30
0985.288.164
237 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL20
0985.288.164
199 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL15
0985.288.164
234 lượt
GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL10
0985.288.164
204 lượt
