GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBL20
VMECA - VBL20
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 0,90 Kg @ -60 kPa
• Thể tích: 4.0 cm³
• Đường kính: 20 mm
• Cốc hút VBL tốt ở những khu vực có bề mặt hơi lồi, bù đến một mức độ chênh lệch chiều cao nhất định và tách vật liệu mỏng. Chiếc cốc hút này có thể đối phó với mức độ chênh lệch chiều cao tăng lên và nó đặc biệt tốt để xử lý các vật thể mỏng manh.
Ứng dụng:
• Vật dễ vỡ
•Trứng
•Sản phẩm thực phẩm tổng hợp
•Tấm nhựa
•Cốc thủy tinh
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

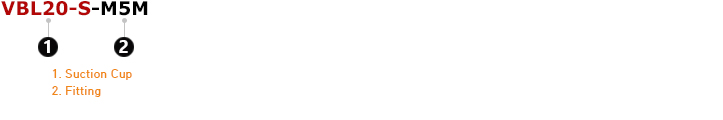

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VBL20-N | Multi-bellows suction cup, 20 mm, Nitrile |
| VBL20-S | Multi-bellows suction cup, 20 mm, Silicone |
| VBL20-WS | Multi-bellows suction cup, 20 mm, White silicone |
| VBL20-WS(FDA) | Multi-bellows suction cup, 20 mm, White silicone (FDA) |
| VBL20-HS | Multi-bellows suction cup, 20 mm, High-temp silicone |
| VBL20-CS | Multi-bellows suction cup, 20 mm, Conductive |
| VBL20-U | Multi-bellows suction cup, 20 mm, Urethane |
| VBL20-A | Multi-bellows suction cup, 20 mm, Mark free |
2. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-M518MF | Fitting, Mesh filter, G1/8 male – M5 female |
| 18F | Fitting, G1/8 female |
| M518MF | Fitting, G1/8 male – M5 female |
| M518MFB | Fitting, G1/8 male – M5 female, For silicone cup only |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| M518MF-EV | Efficiency valve fitting, G1/8 male – M5 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | |
| (mm) | (cm³) | -20 kPa | -60 kPa |
| 20 | 4.0 | 0.40 | 0.90 |
2. Weight
| Part Number | Description | Weight (g) |
| VBL20-N | Multi-bellows suction cup, 20 mm, Nitrile | 2.22 |
| VBL20-S | Multi-bellows suction cup, 20 mm, Silicone | 2.00 |
| VBL20-WS | Multi-bellows suction cup, 20 mm, White silicone | 2.00 |
| VBL20-WS(FDA) | Multi-bellows suction cup, 20 mm, White silicone (FDA) | 2.00 |
| VBL20-HS | Multi-bellows suction cup, 20 mm, High-temp silicone | 2.11 |
| VBL20-CS | Multi-bellows suction cup, 20 mm, Conductive | 2.08 |
| VBL20-U | Multi-bellows suction cup, 20 mm, Urethane | 1.98 |
| VBL20-A | Multi-bellows suction cup, 20 mm, Mark free | 2.52 |
| 350-000-4310 | Fitting, Mesh filter, G1/8 female | 3.26 |
| 350-000-5209 | Fitting, Mesh filter, G1/8 male – M5 female | 1.92 |
| 350-000-3310 | Fitting, G1/8 female | 3.20 |
| 350-000-3209 | Fitting, G1/8 male – M5 female | 1.82 |
| 350-000-3239 | Fitting, G1/8 male – M5 female, For silicone cup only | 3.56 |
| 350-010-3310 | Efficiency valve fitting, G1/8 female | 3.31 |
| 350-010-4209 | Efficiency valve fitting, G1/8 male – M5 female | 1.94 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

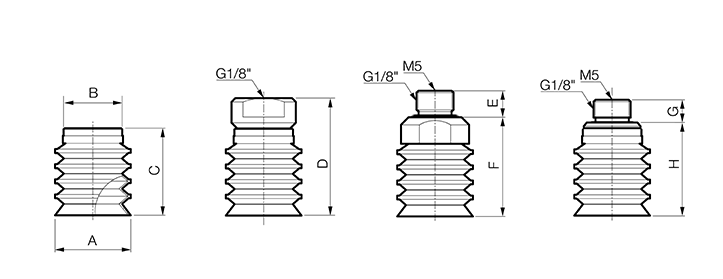

DIMENSIONS:
VBL20
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H |
| Dimension | 20 | 14 | 23 | 31 | 7 | 26 | 6 | 22.5 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VBL20-NM-18F | Multi-bellows suction cup, 20 mm, Nitrile, G1/8 female, Mesh filter |
| VBL20-SM-18F | Multi-bellows suction cup, 20 mm, Silicone, G1/8 female, Mesh filter |
| VBL20-WSM-18F | Multi-bellows suction cup, 20 mm, White silicone, G1/8 female, Mesh filter |
| VBL20-WS(FDA)M-18F | Multi-bellows suction cup, 20 mm, White silicone (FDA), G1/8 female, Mesh filter |
| VBL20-HSM-18F | Multi-bellows suction cup, 20 mm, High-temp silicone, G1/8 female, Mesh filter |
| VBL20-CSM-18F | Multi-bellows suction cup, 20 mm, Conductive, G1/8 female, Mesh filter |
| VBL20-UM-18F | Multi-bellows suction cup, 20 mm, Urethane, G1/8 female, Mesh filter |
| VBL20-AM-18F | Multi-bellows suction cup, 20 mm, Mark free, G1/8 female, Mesh filter |
| VBL20-NM-M518MF | Multi-bellows cup, 20 mm, Nitrile, G1/8 male-M5 female, Mesh filter |
| VBL20-SM-M518MF | Multi-bellows cup, 20 mm, Silicone, G1/8 male-M5 female, Mesh filter |
| VBL20-WSM-M518MF | Multi-bellows cup, 20 mm, White silicone, G1/8 male-M5 female, Mesh filter |
| VBL20-WS(FDA)M-M518MF | Multi-bellows cup, 20 mm, White silicone (FDA), G1/8 male-M5 female, Mesh filter |
| VBL20-HSM-M518MF | Multi-bellows cup, 20 mm, High-temp silicone, G1/8 male-M5 female, Mesh filter |
| VBL20-CSM-M518MF | Multi-bellows cup, 20 mm, Conductive, G1/8 male-M5 female, Mesh filter |
| VBL20-UM-M518MF | Multi-bellows cup, 20 mm, Urethane, G1/8 male-M5 female, Mesh filter |
| VBL20-AM-M518MF | Multi-bellows cup, 20 mm, Mark free, G1/8 male-M5 female, Mesh filter |
| No Mesh Filter | |
| VBL20-N-18F | Multi-bellows suction cup, 20 mm, Nitrile, G1/8 female |
| VBL20-S-18F | Multi-bellows suction cup, 20 mm, Silicone, G1/8 female |
| VBL20-WS-18F | Multi-bellows suction cup, 20 mm, White silicone, G1/8 female |
| VBL20-WS(FDA)-18F | Multi-bellows suction cup, 20 mm, White silicone (FDA), G1/8 female |
| VBL20-HS-18F | Multi-bellows suction cup, 20 mm, High-temp silicone, G1/8 female |
| VBL20-CS-18F | Multi-bellows suction cup, 20 mm, Conductive, G1/8 female |
| VBL20-U-18F | Multi-bellows suction cup, 20 mm, Urethane, G1/8 female |
| VBL20-A-18F | Multi-bellows suction cup, 20 mm, Mark free, G1/8 female |
| VBL20-N-M518MF | Multi-bellows cup, 20 mm, Nitrile, G1/8 male-M5 female |
| VBL20-S-M518MF | Multi-bellows cup, 20 mm, Silicone, G1/8 male-M5 female |
| VBL20-WS-M518MF | Multi-bellows cup, 20 mm, White silicone, G1/8 male-M5 female |
| VBL20-WS(FDA)-M518MF | Multi-bellows cup, 20 mm, White silicone (FDA), G1/8 male-M5 female |
| VBL20-HS-M518MF | Multi-bellows cup, 20 mm, High-temp silicone, G1/8 male-M5 female |
| VBL20-CS-M518MF | Multi-bellows cup, 20 mm, Conductive, G1/8 male-M5 female |
| VBL20-U-M518MF | Multi-bellows cup, 20 mm, Urethane, G1/8 male-M5 female |
| VBL20-A-M518MF | Multi-bellows cup, 20 mm, Mark free, G1/8 male-M5 female |
| VBL20-S-M518MFB | Multi-bellows cup, 20 mm, Silicone, G1/8 male-M5 female |
| VBL20-WS-M518MFB | Multi-bellows cup, 20 mm, White silicone, G1/8 male-M5 female |
| VBL20-WS(FDA)-M518MFB | Multi-bellows cup, 20 mm, White silicone (FDA), G1/8 male-M5 female |
| VBL20-HS-M518MFB | Multi-bellows cup, 20 mm, High-temp silicone, G1/8 male-M5 female |
| Efficiency Valve Fitting | |
| VBL20-N-18F-EV | Multi-bellows cup, 20 mm, Nitrile, G1/8 female, Eff valve |
| VBL20-S-18F-EV | Multi-bellows cup, 20 mm, Silicone, G1/8 female, Eff valve |
| VBL20-WS-18F-EV | Multi-bellows cup, 20 mm, White silicone, G1/8 female, Eff valve |
| VBL20-WS(FDA)-18F-EV | Multi-bellows cup, 20 mm, White silicone (FDA), G1/8 female, Eff valve |
| VBL20-HS-18F-EV | Multi-bellows cup, 20 mm, High-temp silicone, G1/8 female, Eff valve |
| VBL20-CS-18F-EV | Multi-bellows cup, 20 mm, Conductive, G1/8 female, Eff valve |
| VBL20-U-18F-EV | Multi-bellows cup, 20 mm, Urethane, G1/8 female, Eff valve |
| VBL20-A-18F-EV | Multi-bellows cup, 20 mm, Mark free, G1/8 female, Eff valve |
| VBL20-N-M518MF-EV | Multi-bellows cup, 20 mm, Nitrile, G1/8 male-M5 female, Eff valve |
| VBL20-S-M518MF-EV | Multi-bellows cup, 20 mm, Silicone, G1/8 male-M5 female, Eff valve |
| VBL20-WS-M518MF-EV | Multi-bellows cup, 20 mm, White silicone, G1/8 male-M5 female, Eff valve |
| VBL20-WS(FDA)-M518MF-EV | Multi-bellows cup, 20 mm, White silicone (FDA), G1/8 male-M5 female, Eff valve |
| VBL20-HS-M518MF-EV | Multi-bellows cup, 20 mm, High-temp silicone, G1/8 male-M5 female, Eff valve |
| VBL20-CS-M518MF-EV | Multi-bellows cup, 20 mm, Conductive, G1/8 male-M5 female, Eff valve |
| VBL20-U-M518MF-EV | Multi-bellows cup, 20 mm, Urethane, G1/8 male-M5 female, Eff valve |
| VBL20-A-M518MF-EV | Multi-bellows cup, 20 mm, Mark free, G1/8 male-M5 female, Eff valve |
| VBL20-S-M518MFB-EV | Multi-bellows cup, 20 mm, Silicone, G1/8 male-M5 female, Eff valve |
| VBL20-WS-M518MFB-EV | Multi-bellows cup, 20 mm, White silicone, G1/8 male-M5 female, Eff valve |
| VBL20-WS(FDA)-M518MFB-EV | Multi-bellows cup, 20 mm, White silicone (FDA), G1/8 male-M5 female, Eff valve |
| VBL20-HS-M518MFB-EV | Multi-bellows cup, 20 mm, High-temp silicone, G1/8 male-M5 female, Eff valve |
| Rubber Part | |
| VBL20-N | Multi-bellows suction cup, 20 mm, Nitrile |
| VBL20-S | Multi-bellows suction cup, 20 mm, Silicone |
| VBL20-WS | Multi-bellows suction cup, 20 mm, White silicone |
| VBL20-WS(FDA) | Multi-bellows suction cup, 20 mm, White silicone (FDA) |
| VBL20-HS | Multi-bellows suction cup, 20 mm, High-temp silicone |
| VBL20-CS | Multi-bellows suction cup, 20 mm, Conductive |
| VBL20-U | Multi-bellows suction cup, 20 mm, Urethane |
| VBL20-A | Multi-bellows suction cup, 20 mm, Mark free |
| Fitting | |
| 350-000-4310 | Fitting, Mesh filter, G1/8 female |
| 350-000-5209 | Fitting, Mesh filter, G1/8 male – M5 female |
| 350-000-3310 | Fitting, G1/8 female |
| 350-000-3209 | Fitting, G1/8 male – M5 female |
| 350-000-3239 | Fitting, G1/8 male – M5 female, For silicone cup only |
| 350-010-3310 | Efficiency valve fitting, G1/8 female |
| 350-010-4209 | Efficiency valve fitting, G1/8 male – M5 female |
