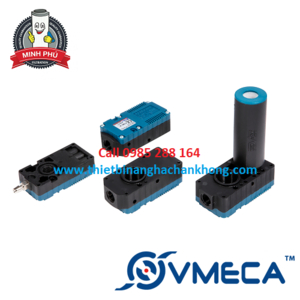

BƠM CHÂN KHÔNG VMECA SERIES VTM10
VTM10
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

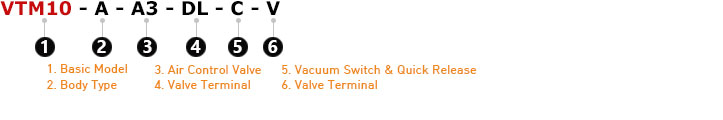

1. Basic Model
| Symbol | Description |
| VTM10 | Mini vacuum pump, VTM10 series |
2. Body Type
| Symbol | Description |
| A | M5 barb connection air supply, G1/8 vacuum port, Internal silencer |
| B | G1/8 air supply port, G3/8 vacuum port, internal silencer |
| BA | G1/8 air supply port, G3/8 vacuum port, internal silencer, Aluminum body |
| C | G1/8 air supply port, G3/8 vacuum port, External silencer |
3. Air Control Valve
| Symbol | Description |
| Blank | No air control valve |
| A1 | Air control valve, AC110V |
| A2 | Air control valve, AC220V |
| A3 | Air control valve, DC24V |
| ☛ A-Body type is not available with air control valve option. |
4. Valve Terminal
| Symbol | Description |
| DN | Solenoid terminal, DIN type, No lead wire |
| DL | Solenoid terminal, DIN type, No lead wire, Lamp |
| CL | Solenoid terminal, Connector type, 30 cm lead wire |
| ☛ “CL” option is only available with DC24V. |
5. Vacuum Switch & Quick Release
| Symbol | Description |
| Blank | No vacuum switch and Quick release |
| C | LED vacuum switch, No analog supply, M8-3-pins connector, NPN |
| PC | LED vacuum switch, No analog supply, M8-3-pins connector, PNP |
| Q1 | Quick release, 12 cm³ Air tank |
| Q2 | Quick release, 30 cm³ Air tank |
6. Sealing Materail
| Symbol | Description |
| Blank | NBR sealing material |
| V | Viton sealing material |
| E | EPDM sealing material |
| Max Vacuum Level | -85 kPa |
| Open Vacuum Flow | 74 Nl/min |
| Feed Pressure | 5.5 bar (Max 7 bar) |
| Air Consumption | 21 Nl/min @ 5.5 bar |
| Temperature | -20 ~ 80 ℃ |
| Weight – Basic Pump | 31.9 g |
| VTM10-A: Basic Pump |
| Unit: mm |
| No | Description |
| 1 | Compressed-Air Port, M5 |
| 2 | Vacuum Port, G1/8″ |
| 3 | Exhaust Port |
| VTM10-B, VTM10-BA: Basic Pump & with Air-Tank and Air Control Valve option |
| Unit: mm |
|
|
| VTM10-C: Basic Pump and with Air Control Valve and Vacuum Switch option |
| Unit: mm |
|
|
| VTM10-C: With Air-Tank and Air Control Valve option |
| Unit: mm |
|
|
Basic Vacuum Pumps & Spare Parts
| Part Number | Description |
| VTM10-A | VTM10-mini pump, A-conn, M5 air, G1/8 vac, int silencer |
| VTM10-B | VTM10-mini pump, B-conn, G1/8 air, G3/8 vac, int silencer |
| VTM10-BA | VTM10-mini pump, B-conn, G1/8 air, G3/8 vac, int silencer, Al-plate |
| VTM10-C | VTM10-mini pump, C-conn, G1/8 air, G3/8 vac, ext silencer |
| VTS-38 | Free flow silencer, G3/8″ |
| 15A1011 | NBR sealing kit, VTM10 |
| 15A1012 | Viton sealing kit, VTM10 |
| 15A1013 | EPDM sealing kit, VTM10 |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Website: www.thietbinanghachankhong.com
