BƠM CHÂN KHÔNG VMECA SERIES VTM10X(n)

Mã sản phẩm : VTM10X(n)

Xuất xứ : VMECA - KOREA

Bảo hành : Theo tiêu chuẩn nhà sản xuất

• Mức chân không tối đa: -85 kPa • Lưu lượng chân không mở: 35 Nl / phút • Mức tiêu thụ ir: 48 Nl / phút @ 5,5 bar

Giá sản phẩm : 0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

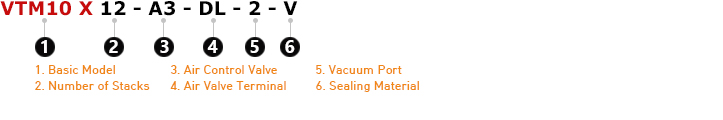

1. Basic Model

Symbol	Description
VTM10	Minimultiple, VTM10

2. Number of Stacks

Symbol	Description
2	Minimultiple, VTM10, 2-stacked pump
4	Minimultiple, VTM10, 4-stacked pump
6	Minimultiple, VTM10, 6-stacked pump
8	Minimultiple, VTM10, 8-stacked pump
10	Minimultiple, VTM10, 10-stacked pump
12	Minimultiple, VTM10, 12-stacked pump

3. Air Control Valve

4. Valve Terminal

Symbol	Description
Blank	No air control valve ☛ “Option 2”, Air control valve
DN	Solenoid terminal, DIN type, No lead wire
DL	Solenoid terminal, DIN type, No lead wire, Lamp
CL	Solenoid terminal, Connector type, 30 cm lead wire
	☛ “The valve terminal ” option is only available when you chose air control valve.
	☛ “CL” option is only available with DC24V.
2B	Solenoid terminal, DIN, 2-in-1 BUS cable

5. Vacuum Port

Symbol	Description
2	Push-in fitting, 2 mm inner diameter
4	Push-in fitting, 4 mm inner diameter

6. Sealing Material

Max Vacuum Level	-85 kPa
Open Vacuum Flow	35 Nl/min
Feed Pressure	5.5 bar (Max 7 bar)
Air Consumption	42 Nl/min
Temperature	-20 ~ 80 ℃
Weight: VTM10X2:	67 g (Increased 13 g per additional stack)
Weight: VTM10X4:	245 g (Increased 18 g per additional stack)

VTM10X(2~3):

Unit: mm

Vacuum Pumps & Spare Parts

Part Number	Description
MS18-3-1	2/2-way sol valve, G1/8″ inlet, DC 24V, DIN type
MS18-3-2	2/2-way sol valve, G1/8″ inlet, DC 24V, DIN type, Lamp
MS18-3-3	2/2-way sol valve, G1/8″ inlet, DC 24V, Conn. type, 30 cm lead wire & Lamp
MS18-2-1	2/2-way sol valve, G1/8″ inlet, AC 220V, DIN type
MS18-2-2	2/2-way sol valve, G1/8″ inlet, AC 220V, DIN type, Lamp
MS18-1-1	2/2-way sol valve, G1/8″ inlet, AC 110V, DIN type
MS18-1-2	2/2-way sol valve, G1/8″ inlet, AC 110V, DIN type, Lamp
Seal Kit	Please contact VMECA.
