BỘ KẸP CHÂN KHÔNG VMECA SERIES MC10-D

(0 đánh giá)

MC10-D

VMECA - KOREA

Theo tiêu chuẩn nhà sản xuất

Mức chân không tối đa: -83 kPa Lưu lượng chân không mở: 23 Nl / phút Tiêu thụ không khí: 20,3 Nl / phút @ 2.2 bar

HOTLINE : 0985.288.164

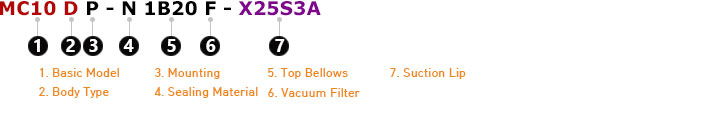

 SƠ ĐỒ CHỌN MÃ KẸP CHÂN KHÔNG VMECA SERIES MC10-A:




1. Basic Model

Symbol Description
MC10 Magic gripper, MC10 series, Micro 2-stage cartridge

2. Body Type

Symbol Description
D Dual vacuum cartridges



3. Mounting Type

Symbol Description
X No mounting bracket
M Direct mount
P Aluminum profile mount



4. Sealing Material

Symbol Description
N NBR
E EPDM
V Viton

5. Top Bellows

Symbol Description
1B20 20 mm, 1-fold top bellows ☛ Only with MC10
1B40 40 mm, 1-fold top bellows ☛ Only with MC10, MC20, MC25
2B20 20 mm, 2-fold top bellows ☛ Only with MC10
2B40 40 mm, 2-fold top bellows ☛ Only with MC10, MC20, MC25



6. Vacuum Filter

Symbol Description
X No vacuum filter
F Vacuum filter, 200-mesh



7. Suction Lip

1) X-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
X25 X-type Lip, 25 mm O
X30 X-type Lip, 30 mm O
X45 X-type Lip, 45 mm   O
X55 X-type Lip, 55 mm   O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
PU Polyurethane, 60° Hardness Translucent Orange
3) Stopper
Symbol Description
A A-type
B B-type
C C-type
D D-type



2) U-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
U25 U-type Lip, 25 mm O
U30 U-type Lip, 30 mm O
U45 U-type Lip, 45 mm   O
U55 U-type Lip, 55 mm   O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
PU Polyurethane, 60° Hardness Translucent Orange
3) Stopper
Symbol Description
B B-type
C C-type
D D-type



3) P-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
P15 P-type Lip, 15 mm O
P17 P-type Lip, 17 mm O
P20 P-type Lip, 20 mm O
P27 P-type Lip, 27mm O
P32 P-type Lip, 32 mm O
P48 P-type Lip, 48 mm   O
P60 P-type Lip, 60 mm   O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type



4) F-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
F25 F-type Lip, 25 mm O
F30 F-type Lip, 30 mm O
F45 F-type Lip, 45 mm   O
F55 F-type Lip, 55 mm   O
2) Lip Material
Symbol Description Color
PU Polyurethane, 60° Hardness Translucent Orange
3) Stopper
Symbol Description
B B-type
C C-type
D D-type



5) DD-type Suction Lip (Double Lips)

1) Lip Size Bellows Size
Symbol Description Ø40
DD4030 DD-type Lip, Double lip, 30 mm & 41 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type

6) MBU-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20
MBU17 MBU-type Lip, 17 mm O
MBU23 MBU-type Lip, 23 mm O
MBU27 MBU-type Lip, 27 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type



7) MD-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø20
MD22 MD-type Lip, 22 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
D D-type



8) S-type Suction Lip (Sponge Foam)

1) Lip Size Bellows Size
Symbol Description Ø20 Ø40
S30 S-type Lip, 30 mm O
S50 S-type Lip, 50 mm   O
2) Lip Material
Symbol Description Color
E EPDM, 15° Hardness Black
3) Stopper
Symbol Description
F F-type



9) MU-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø40
MU45 MU-type Lip, 45 mm O
MU55 MU-type Lip, 55 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
G G-type



10) MF-type Suction Lip

1) Lip Size Bellows Size
Symbol Description Ø40
MF45 MF-type Lip, 45 mm O
MF55 MF-type Lip, 55 mm O
2) Lip Material
Symbol Description Color
N6 NBR (Nitrile), 60° Hardness Blue
S3 Silicone, 30° Hardness Translucent White
S5 Silicone, 50° Hardness Red
W3 White Silicone, 30° Hardness Translucent White
W5 White Silicone, 50° Hardness Translucent White
W3(FDA) White Silicone, 30° Hardness (FDA) Translucent White
W5(FDA) White Silicone, 50° Hardness (FDA) Translucent White
U6 Urethane, 60° Hardness Dark Grey
3) Stopper
Symbol Description
G G-type
