BỘ KẸP CHÂN KHÔNG VMECA SERIES MC10-B

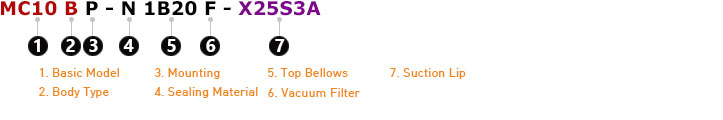

1. Basic Model

Symbol	Description
MC10	Magic gripper, MC10 series, Micro 2-stage cartridge

2. Body Type

Symbol	Description
B	Single vacuum cartridge w/Auto vacuum release function



3. Mounting Type

Symbol	Description
X	No mounting bracket
M	Direct mount
P	Aluminum profile mount



4. Sealing Material

Symbol	Description
N	NBR
E	EPDM
V	Viton

5. Top Bellows

Symbol	Description
1B20	20 mm, 1-fold top bellows ☛ Only with MC10
1B40	40 mm, 1-fold top bellows ☛ Only with MC10, MC20, MC25
2B20	20 mm, 2-fold top bellows ☛ Only with MC10
2B40	40 mm, 2-fold top bellows ☛ Only with MC10, MC20, MC25



6. Vacuum Filter

Symbol	Description
X	No vacuum filter
F	Vacuum filter, 200-mesh



7. Suction Lip

1) X-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø20	Ø40
X25	X-type Lip, 25 mm	O
X30	X-type Lip, 30 mm	O
X45	X-type Lip, 45 mm		O
X55	X-type Lip, 55 mm		O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey
PU	Polyurethane, 60° Hardness	Translucent Orange

3) Stopper
Symbol	Description
A	A-type
B	B-type
C	C-type
D	D-type



2) U-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø20	Ø40
U25	U-type Lip, 25 mm	O
U30	U-type Lip, 30 mm	O
U45	U-type Lip, 45 mm		O
U55	U-type Lip, 55 mm		O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey
PU	Polyurethane, 60° Hardness	Translucent Orange

3) Stopper
Symbol	Description
B	B-type
C	C-type
D	D-type



3) P-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø20	Ø40
P15	P-type Lip, 15 mm	O
P17	P-type Lip, 17 mm	O
P20	P-type Lip, 20 mm	O
P27	P-type Lip, 27mm	O
P32	P-type Lip, 32 mm	O
P48	P-type Lip, 48 mm		O
P60	P-type Lip, 60 mm		O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey

3) Stopper
Symbol	Description
D	D-type



4) F-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø20	Ø40
F25	F-type Lip, 25 mm	O
F30	F-type Lip, 30 mm	O
F45	F-type Lip, 45 mm		O
F55	F-type Lip, 55 mm		O

2) Lip Material
Symbol	Description	Color
PU	Polyurethane, 60° Hardness	Translucent Orange

3) Stopper
Symbol	Description
B	B-type
C	C-type
D	D-type



5) DD-type Suction Lip (Double Lips)

1) Lip Size		Bellows Size
Symbol	Description	Ø40
DD4030	DD-type Lip, Double lip, 30 mm & 41 mm	O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey

3) Stopper
Symbol	Description
D	D-type

6) MBU-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø20
MBU17	MBU-type Lip, 17 mm	O
MBU23	MBU-type Lip, 23 mm	O
MBU27	MBU-type Lip, 27 mm	O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey

3) Stopper
Symbol	Description
D	D-type



7) MD-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø20
MD22	MD-type Lip, 22 mm	O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey

3) Stopper
Symbol	Description
D	D-type



8) S-type Suction Lip (Sponge Foam)

1) Lip Size		Bellows Size
Symbol	Description	Ø20	Ø40
S30	S-type Lip, 30 mm	O
S50	S-type Lip, 50 mm		O

2) Lip Material
Symbol	Description	Color
E	EPDM, 15° Hardness	Black

3) Stopper
Symbol	Description
F	F-type



9) MU-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø40
MU45	MU-type Lip, 45 mm	O
MU55	MU-type Lip, 55 mm	O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey

3) Stopper
Symbol	Description
G	G-type



10) MF-type Suction Lip

1) Lip Size		Bellows Size
Symbol	Description	Ø40
MF45	MF-type Lip, 45 mm	O
MF55	MF-type Lip, 55 mm	O

2) Lip Material
Symbol	Description	Color
N6	NBR (Nitrile), 60° Hardness	Blue
S3	Silicone, 30° Hardness	Translucent White
S5	Silicone, 50° Hardness	Red
W3	White Silicone, 30° Hardness	Translucent White
W5	White Silicone, 50° Hardness	Translucent White
W3(FDA)	White Silicone, 30° Hardness (FDA)	Translucent White
W5(FDA)	White Silicone, 50° Hardness (FDA)	Translucent White
U6	Urethane, 60° Hardness	Dark Grey

3) Stopper
Symbol	Description
G	G-type
