GIÁC HÚT CHÂN KHÔNG VMECA SERIES VOU8X30
VMECA - VOU8X30
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

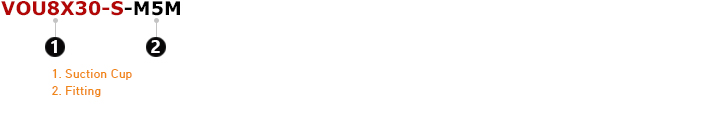

BUILD AND ORDER:
1. Suction Cup
Symbol | Description |
VOU8X30-N | Oval-universal suction cup, 8×30 mm, Nitrile (NBR) |
VOU8X30-S | Oval-universal suction cup, 8×30 mm, Silicone |
VOU8X30-WS | Oval-universal suction cup, 8×30 mm, White silicone |
VOU8X30-WS(FDA) | Oval-universal suction cup, 8×30 mm, White silicone (FDA) |
VOU8X30-HS | Oval-universal suction cup, 8×30 mm, High-temp silicone |
VOU8X30-CS | Oval-universal suction cup, 8×30 mm, Conductive silicone |
VOU8X30-U | Oval-universal suction cup, 8×30 mm, Urethane |
2. Fitting
Symbol | Description |
Blank | No fitting |
M5M | Fitting, M5 male |
M5F | Fitting, M5 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
Size | Volume | Min. Curvature Radius | Lifting Force (↑), Kg | ||
(mm) | (cm³) | (mm) | -20 kPa | -60 kPa | -90 kPa |
8×30 | 0.250 | 6.50 | 0.52 | 1.21 | 1.66 |
2. Weight
Part Number | Description | Weight (g) |
VOU8X30-N | Oval-universal suction cup, 8×30 mm, Nitrile (NBR) | 1.20 |
VOU8X30-S | Oval-universal suction cup, 8×30 mm, Silicone | 1.12 |
VOU8X30-WS | Oval-universal suction cup, 8×30 mm, White silicone | 1.14 |
VOU8X30-WS(FDA) | Oval-universal suction cup, 8×30 mm, White silicone (FDA) | 1.14 |
VOU8X30-HS | Oval-universal suction cup, 8×30 mm, High-temp silicone | 1.15 |
VOU8X30-CS | Oval-universal suction cup, 8×30 mm, Conductive silicone | 1.18 |
VOU8X30-U | Oval-universal suction cup, 8×30 mm, Urethane | 1.24 |
350-002-1112 | Fitting, M5 female | 2.82 |
350-002-1012 | Fitting, M5 male | 1.78 |
3. Material Specifications
Material | Hardness Shore (°) | Color | Temperature (℃) |
NBR | 60 | Black | -20 ~ 110 |
Silicone | 55 | Red | -70 ~ 200 |
White Silicone | 55 | Translucent White | -70 ~ 200 |
White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
High Temp. Silicone | 50 | Blue | -70 ~ 280 |
Conductive Material | 70 | Smoky Black | -45 ~ 90 |
Urethane | 60 | Dark Green | 0 ~ 100 |
4. Material Resistance
Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
NBR | Excellent | Excellent | Fair | Good | Fair |
Silicone | Good | Poor | Excellent | Good | Poor |
White Silicone | Good | Poor | Excellent | Good | Poor |
High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
Conductive Silicone | Good | Poor | Excellent | Good | Poor |
Urethane | Excellent | Excellent | Excellent | Fair | Poor |

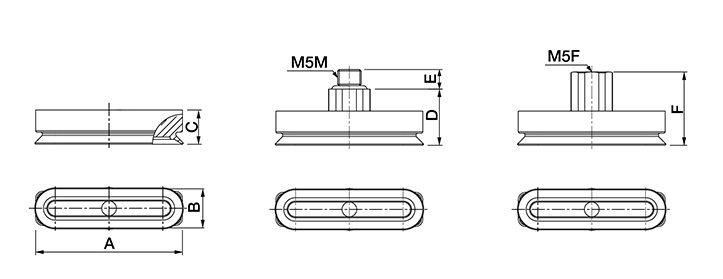

DIMENSIONS:
VOU8X30
|
|
![]() |
Unit: mm |
Legend | A | B | C | D | E | F |
Dimension | 30 | 8 | 7 | 11.5 | 4 | 15 |
ORDER NUMBER:
Order Numbers
|
