GIÁC HÚT CHÂN KHÔNG VMECA SERIES VOU20X60

(1 đánh giá)

VMECA - VOU20X60

VMECA - KOREA

Theo tiêu chuẩn nhà sản xuất

• Lực nâng (↑): 5.10 Kg @ -60 kPa • Thể tích: 3,532 cm³ • Đường kính: 60 mm • Cốc hút VOU rất tuyệt vời với việc giữ các bề mặt tròn nhỏ / phẳng. Cốc hút và phụ kiện có thể tháo rời dễ dàng với nhau để lắp đặt nhanh chóng và nhanh chóng. Ứng dụng: • Chip bán dẫn • Linh kiện nhỏ • Ống nhỏ • Pin mặt trời

0985.288.164

HOTLINE TƯ VẤN : 0985.288.164

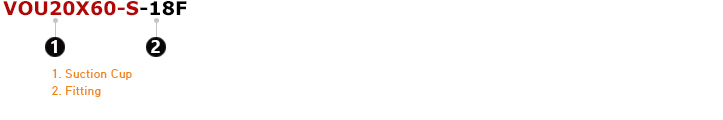

BUILD AND ORDER:




1. Suction Cup

Symbol Description
VOU20X60-N Oval-universal suction cup, 20×60 mm, Nitrile (NBR)
VOU20X60-S Oval-universal suction cup, 20×60 mm, Silicone
VOU20X60-WS Oval-universal suction cup, 20×60 mm, White silicone
VOU20X60-WS(FDA) Oval-universal suction cup, 20×60 mm, White silicone (FDA)
VOU20X60-HS Oval-universal suction cup, 20×60 mm, High-temp silicone
VOU20X60-CS Oval-universal suction cup, 20×60 mm, Conductive silicone
VOU20X60-U Oval-universal suction cup, 20×60 mm, Urethane

2. Fitting

Symbol Description
Blank No fitting
M-18M Fitting, Mesh filter, G1/8″ male
M-18F Fitting, Mesh filter, G1/8″ female
18M Fitting, G1/8″ male
18F Fitting, G1/8″ female

SPECIFICITIONS:

1. Recommended Lifting Maximum Force

Size Volume Min. Curvature Radius Lifting Force (↑), Kg
(mm) (cm³) (mm) -20 kPa -60 kPa -90 kPa
20×60 3.532 17.00 1.93 5.10 7.65

2. Weight

Part Number Description Weight (g)
VOU20X60-N Oval-universal suction cup, 20×60 mm, Nitrile (NBR) 14.78
VOU20X60-S Oval-universal suction cup, 20×60 mm, Silicone 13.22
VOU20X60-WS Oval-universal suction cup, 20×60 mm, White silicone 13.04
VOU20X60-WS(FDA) Oval-universal suction cup, 20×60 mm, White silicone (FDA) 13.04
VOU20X60-HS Oval-universal suction cup, 20×60 mm, High-temp silicone 15.28
VOU20X60-CS Oval-universal suction cup, 20×60 mm, Conductive silicone 14.63
VOU20X60-U Oval-universal suction cup, 20×60 mm, Urethane 15.31
350-002-3022 Fitting, Mesh filter, G1/8″ male 10.46
350-002-3122 Fitting, Mesh filter, G1/8″ female 10.32
350-002-3021 Fitting, G1/8″ male 13.84
350-002-3121 Fitting, G1/8″ female 13.74

3. Material Specifications

Material Hardness Shore (°) Color Temperature (℃)
NBR 60 Black -20 ~ 110
Silicone 55 Red -70 ~ 200
White Silicone 55 Translucent White -70 ~ 200
White Silicone (FDA) 55 Translucent White -70 ~ 200
High Temp. Silicone 50 Blue -70 ~ 280
Conductive Material 70 Smoky Black -45 ~ 90
Urethane 60 Dark Green 0 ~ 100

4. Material Resistance

Description Wear Resistance Oil Weather/Ozone Alcohol Acid
NBR Excellent Excellent Fair Good Fair
Silicone Good Poor Excellent Good Poor
White Silicone Good Poor Excellent Good Poor
High Temp. Silicone Good Poor Excellent Good Poor
Conductive Silicone Good Poor Excellent Good Poor
Urethane Excellent Excellent Excellent Fair Poor

DIMENSIONS:

VOU20X60

Rubber Part, 18F, and 18M

Unit: mm
Legend A B C D E F
Dimension 60 20 17.2 24.2 7 27.2

ORDER NUMBER:

Order Numbers

Part Number Description
Mesh Filter
VOU20X60-NM-18F Oval-universal cup, 20×60 mm, Nitrile (NBR), G1/8 female, Mesh filter
VOU20X60-SM-18F Oval-universal cup, 20×60 mm, Silicone, G1/8 female, Mesh filter
VOU20X60-WSM-18F Oval-universal cup, 20×60 mm, White silicone, G1/8 female, Mesh filter
VOU20X60-WS(FDA)M-18F Oval-universal cup, 20×60 mm, White silicone (FDA), G1/8 female, Mesh filter
VOU20X60-HSM-18F Oval-universal cup, 20×60 mm, High-temp silicone, G1/8 female, Mesh filter
VOU20X60-CSM-18F Oval-universal cup, 20×60 mm, Conductive silicone, G1/8 female, Mesh filter
VOU20X60-UM-18F Oval-universal cup, 20×60 mm, Urethane, G1/8 female, Mesh filter
VOU20X60-NM-18M Oval-universal cup, 20×60 mm, Nitrile (NBR), G1/8 male, Mesh filter
VOU20X60-SM-18M Oval-universal cup, 20×60 mm, Silicone, G1/8 male, Mesh filter
VOU20X60-WSM-18M Oval-universal cup, 20×60 mm, White silicone, G1/8 male, Mesh filter
VOU20X60-WS(FDA)M-18M Oval-universal cup, 20×60 mm, White silicone (FDA), G1/8 male, Mesh filter
VOU20X60-HSM-18M Oval-universal cup, 20×60 mm, High-temp silicone, G1/8 male, Mesh filter
VOU20X60-CSM-18M Oval-universal cup, 20×60 mm, Conductive silicone, G1/8 male, Mesh filter
VOU20X60-UM-18M Oval-universal cup, 20×60 mm, Urethane, G1/8 male, Mesh filter
No Mesh Filter
VOU20X60-N-18F Oval-universal cup, 20×60 mm, Nitrile (NBR), G1/8 female
VOU20X60-S-18F Oval-universal cup, 20×60 mm, Silicone, G1/8 female
VOU20X60-WS-18F Oval-universal cup, 20×60 mm, White silicone, G1/8 female
VOU20X60-WS(FDA)-18F Oval-universal cup, 20×60 mm, White silicone (FDA), G1/8 female
VOU20X60-HS-18F Oval-universal cup, 20×60 mm, High-temp silicone, G1/8 female
VOU20X60-CS-18F Oval-universal cup, 20×60 mm, Conductive silicone, G1/8 female
VOU20X60-U-18F Oval-universal cup, 20×60 mm, Urethane, G1/8 female
VOU20X60-N-18M Oval-universal cup, 20×60 mm, Nitrile (NBR), G1/8 male
VOU20X60-S-18M Oval-universal cup, 20×60 mm, Silicone, G1/8 male
VOU20X60-WS-18M Oval-universal cup, 20×60 mm, White silicone, G1/8 male
VOU20X60-WS(FDA)-18M Oval-universal cup, 20×60 mm, White silicone (FDA), G1/8 male
VOU20X60-HS-18M Oval-universal cup, 20×60 mm, High-temp silicone, G1/8 male
VOU20X60-CS-18M Oval-universal cup, 20×60 mm, Conductive silicone, G1/8 male
VOU20X60-U-18M Oval-universal cup, 20×60 mm, Urethane, G1/8 male
Rubber Part
VOU20X60-N Oval-universal suction cup, 20×60 mm, Nitrile (NBR)
VOU20X60-S Oval-universal suction cup, 20×60 mm, Silicone
VOU20X60-WS Oval-universal suction cup, 20×60 mm, White silicone
VOU20X60-WS(FDA) Oval-universal suction cup, 20×60 mm, White silicone (FDA)
VOU20X60-HS Oval-universal suction cup, 20×60 mm, High-temp silicone
VOU20X60-CS Oval-universal suction cup, 20×60 mm, Conductive silicone
VOU20X60-U Oval-universal suction cup, 20×60 mm, Urethane
Fitting
350-002-3022 Fitting, Mesh filter, G1/8″ male
350-002-3122 Fitting, Mesh filter, G1/8″ female
350-002-3021 Fitting, G1/8″ male
350-002-3121 Fitting, G1/8″ female
