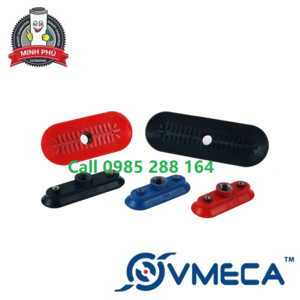

GIÁC HÚT CHÂN KHÔNG VMECA SERIES VOC35X110
VMECA - VOC35X110
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

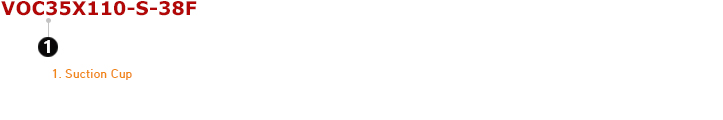

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VOC35X110-N-38F | Oval-curved suction cup, 35×110 mm, Nitrile (NBR), G3/8 female |
| VOC35X110-S-38F | Oval-curved suction cup, 35×110 mm, Silicone, G3/8 female |
| VOC35X110-WS-38F | Oval-curved suction cup, 35×110 mm, White silicone, G3/8 female |
| VOC35X110-WS(FDA)-38F | Oval-curved suction cup, 35×110 mm, White silicone (FDA), G3/8 female |
| VOC35X110-HS-38F | Oval-curved suction cup, 35×110 mm, High-temp silicone, G3/8 female |
| VOC35X110-CS-38F | Oval-curved suction cup, 35×110 mm, Conductive silicone, G3/8 female |
| VOC35X110-U-38F | Oval-curved suction cup, 35×110 mm, Urethane, G3/8 female |
| VOC35X110-A-38F | Oval-curved suction cup, 35×110 mm, Mark free, G3/8 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Size | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 37 x 114 | 25.0 | 6.25 | 16.7 | 21.7 | 5.0 | 13.36 | 17.36 |
2. Weight
| Part Number | Description | Weight (g) |
| VOC35X110-N-38F | Oval-curved cup, 35×110 mm, Nitrile (NBR), G3/8 female | 56.3 |
| VOC35X110-S-38F | Oval-curved cup, 35×110 mm, Silicone, G3/8 female | 55.2 |
| VOC35X110-WS-38F | Oval-curved cup, 35×110 mm, White silicone, G3/8 female | 54.7 |
| VOC35X110-WS(FDA)-38F | Oval-curved cup, 35×110 mm, White silicone (FDA), G3/8 female | 54.7 |
| VOC35X110-HS-38F | Oval-curved cup, 35×110 mm, High-temp silicone, G3/8 female | 55.4 |
| VOC35X110-CS-38F | Oval-curved cup, 35×110 mm, Conductive silicone, G3/8 female | 56.8 |
| VOC35X110-U-38F | Oval-curved cup, 35×110 mm, Urethane, G3/8 female | 56.1 |
| VOC35X110-A-38F | Oval-curved cup, 35×110 mm, Mark free, G3/8 female | 58.8 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

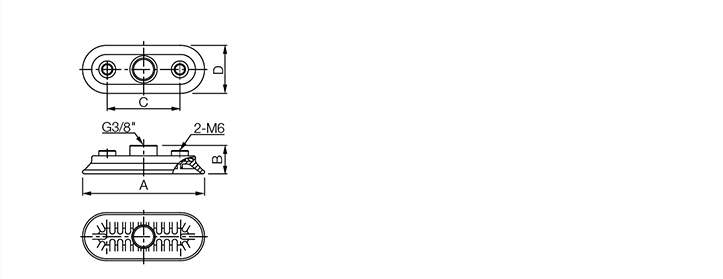

DIMENSIONS:
VOC35X110
|
|
 |
| Unit: mm |
| Legend | A | B | C | D |
| Dimension | 114 | 22 | 76 | 37 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VOC35X110-N-38F | Oval-curved suction cup, 35×110 mm, Nitrile (NBR), G3/8 female |
| VOC35X110-S-38F | Oval-curved suction cup, 35×110 mm, Silicone, G3/8 female |
| VOC35X110-WS-38F | Oval-curved suction cup, 35×110 mm, White silicone, G3/8 female |
| VOC35X110-WS(FDA)-38F | Oval-curved suction cup, 35×110 mm, White silicone (FDA), G3/8 female |
| VOC35X110-HS-38F | Oval-curved suction cup, 35×110 mm, High-temp silicone, G3/8 female |
| VOC35X110-CS-38F | Oval-curved suction cup, 35×110 mm, Conductive silicone, G3/8 female |
| VOC35X110-U-38F | Oval-curved suction cup, 35×110 mm, Urethane, G3/8 female |
| VOC35X110-A-38F | Oval-curved suction cup, 35×110 mm, Mark free, G3/8 female |
