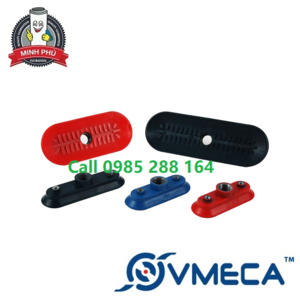

GIÁC HÚT CHÂN KHÔNG VMECA SERIES VOC11X23
VMECA - VOC11X23
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

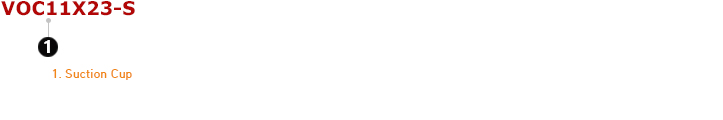

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VOC11X23-N | Oval-curved suction cup, 11×23 mm, Nitrile (NBR) |
| VOC11X23-S | Oval-curved suction cup, 11×23 mm, Silicone |
| VOC11X23-WS | Oval-curved suction cup, 11×23 mm, White silicone |
| VOC11X23-WS(FDA) | Oval-curved suction cup, 11×23 mm, White silicone (FDA) |
| VOC11X23-HS | Oval-curved suction cup, 11×23 mm, High-temp silicone |
| VOC11X23-CS | Oval-curved suction cup, 11×23 mm, Conductive silicone |
| VOC11X23-U | Oval-curved suction cup, 11×23 mm, Urethane |
| VOC11X23-A | Oval-curved suction cup, 11×23 mm, Mark free |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Size | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 12.5 x 24 | 2.0 | 0.61 | 1.30 | 1.60 | 0.60 | 1.20 | 1.50 |
2. Weight
| Part Number | Description | Weight (g) |
| VOC11X23-N | Oval-curved suction cup, 11×23 mm, Nitrile (NBR) | 1.5 |
| VOC11X23-S | Oval-curved suction cup, 11×23 mm, Silicone | 1.5 |
| VOC11X23-WS | Oval-curved suction cup, 11×23 mm, White silicone | 1.5 |
| VOC11X23-WS(FDA) | Oval-curved suction cup, 11×23 mm, White silicone (FDA) | 1.5 |
| VOC11X23-HS | Oval-curved suction cup, 11×23 mm, High-temp silicone | 1.6 |
| VOC11X23-CS | Oval-curved suction cup, 11×23 mm, Conductive silicone | 1.5 |
| VOC11X23-U | Oval-curved suction cup, 11×23 mm, Urethane | 1.6 |
| VOC11X23-A | Oval-curved suction cup, 11×23 mm, Mark free | 1.7 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |

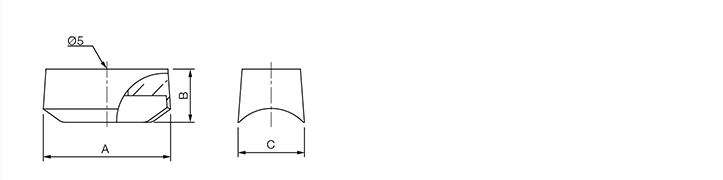

DIMENSIONS:
VOC11X23
|
|
 |
| Unit: mm |
| Legend | A | B | C |
| Dimension | 24 | 10 | 12.5 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VOC11X23-N | Oval-curved suction cup, 11×23 mm, Nitrile (NBR) |
| VOC11X23-S | Oval-curved suction cup, 11×23 mm, Silicone |
| VOC11X23-WS | Oval-curved suction cup, 11×23 mm, White silicone |
| VOC11X23-WS(FDA) | Oval-curved suction cup, 11×23 mm, White silicone (FDA) |
| VOC11X23-HS | Oval-curved suction cup, 11×23 mm, High-temp silicone |
| VOC11X23-CS | Oval-curved suction cup, 11×23 mm, Conductive silicone |
| VOC11X23-U | Oval-curved suction cup, 11×23 mm, Urethane |
| VOC11X23-A | Oval-curved suction cup, 11×23 mm, Mark free |
