GIÁC HÚT CHÂN KHÔNG VMECA SERIES VOBF55X110
VMECA - VOBF55X110
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

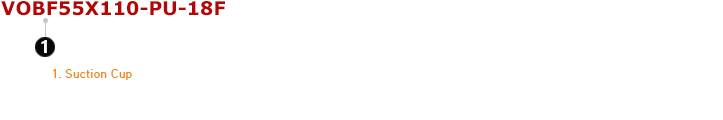

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VOBF55X110-PU-18F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/8 female |
| VOBF55X110-PU-18M | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/8 male |
| VOBF55X110-PU-14F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/4 female |
| VOBF55X110-PU-14M | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/4 male |
| VOBF55X110-PU-38F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G3/8 female |
| VOBF55X110-PU-M10M | Oval-bellow suction cup, 55×110 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Size | Volume | Min. Radius | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | (mm) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 55×110 | 66.5 | 50. | 8.8 | 22.3 | 33.0 | 13.3 | 29.1 | 44.0 |
2. Weight
| Part Number | Description | Weight (g) |
| VOBF55X110-PU-18F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/8 female | 84.8 |
| VOBF55X110-PU-18M | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/8 male | 87.1 |
| VOBF55X110-PU-14F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/4 female | 85.2 |
| VOBF55X110-PU-14M | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/4 male | 82.7 |
| VOBF55X110-PU-38F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G3/8 female | 86.4 |
| VOBF55X110-PU-M10M | Oval-bellow suction cup, 55×110 mm, Polyurethane, M10 male | 86.1 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

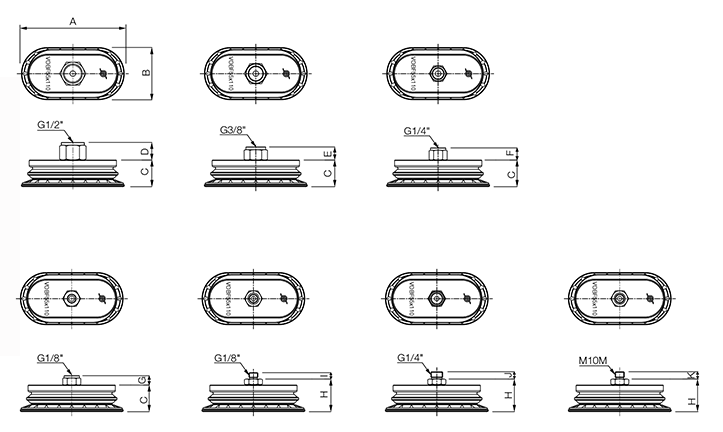

DIMENSIONS:
VOBF55X110
|
|||
 |
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J | K |
| Dimension | 112 | 57 | 29 | 19.2 | 14.2 | 13.2 | 10.2 | 35.5 | 7 | 8 | 8 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VOBF55X110-PU-18F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/8 female |
| VOBF55X110-PU-18M | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/8 male |
| VOBF55X110-PU-14F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/4 female |
| VOBF55X110-PU-14M | Oval-bellow suction cup, 55×110 mm, Polyurethane, G1/4 male |
| VOBF55X110-PU-38F | Oval-bellow suction cup, 55×110 mm, Polyurethane, G3/8 female |
| VOBF55X110-PU-M10M | Oval-bellow suction cup, 55×110 mm, Polyurethane, M10 male |
