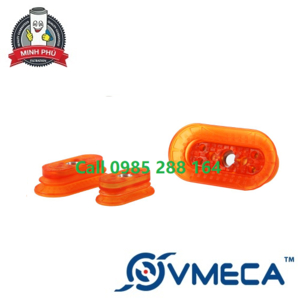

GIÁC HÚT CHÂN KHÔNG VMECA SERIES VOBF40X80
VMECA - VOBF40X80
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

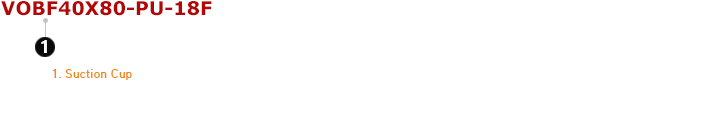

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VOBF40X80-PU-18F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/8 female |
| VOBF40X80-PU-18M | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/8 male |
| VOBF40X80-PU-14F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/4 female |
| VOBF40X80-PU-14M | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/4 male |
| VOBF40X80-PU-38F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G3/8 female |
| VOBF40X80-PU-M10M | Oval-bellow suction cup, 40×80 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Size | Volume | Min. Radius | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | (mm) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 40×80 | 22.5 | 40.0 | 4.8 | 12.8 | 18.2 | 5.3 | 15.6 | 22.9 |
2. Weight
| Part Number | Description | Weight (g) |
| VOBF40X80-PU-18F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/8 female | 39.4 |
| VOBF40X80-PU-18M | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/8 male | 41.8 |
| VOBF40X80-PU-14F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/4 female | 39.8 |
| VOBF40X80-PU-14M | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/4 male | 37.4 |
| VOBF40X80-PU-38F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G3/8 female | 41.0 |
| VOBF40X80-PU-M10M | Oval-bellow suction cup, 40×80 mm, Polyurethane, M10 male | 40.7 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

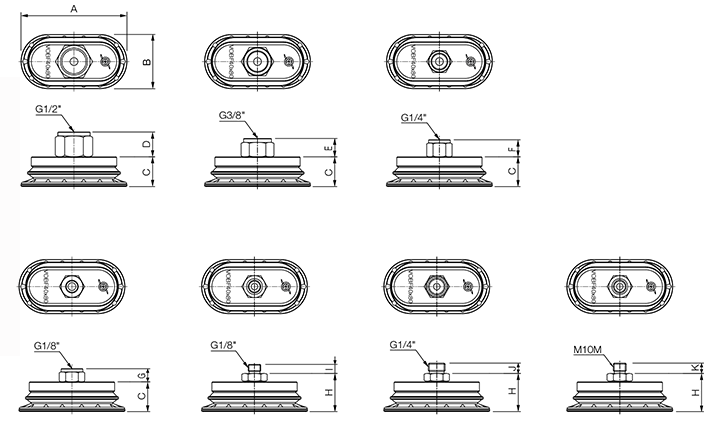

DIMENSIONS:
VOBF40X80
|
|||
 |
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J | K |
| Dimension | 82 | 42 | 23 | 19.2 | 14.2 | 13.2 | 10.2 | 29.5 | 7 | 8 | 8 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VOBF40X80-PU-18F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/8 female |
| VOBF40X80-PU-18M | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/8 male |
| VOBF40X80-PU-14F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/4 female |
| VOBF40X80-PU-14M | Oval-bellow suction cup, 40×80 mm, Polyurethane, G1/4 male |
| VOBF40X80-PU-38F | Oval-bellow suction cup, 40×80 mm, Polyurethane, G3/8 female |
| VOBF40X80-PU-M10M | Oval-bellow suction cup, 40×80 mm, Polyurethane, M10 male |
