GIÁC HÚT CHÂN KHÔNG VMECA SERIES VFC50
VMECA - VFC50
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 6,94 Kg @ -60 kPa
• Lực nâng (→): 6,34 Kg @ -60 kPa
• Thể tích: 10,0 cm³
• Đường kính: 50 mmm
• Cốc hút VFC là tuyệt vời để xử lý các bề mặt cong và phẳng. Các cleats trên cốc hút cải thiện ma sát giữa phần giữ và cốc hút. Do đó, di chuyển các sản phẩm theo chiều ngang hoặc chiều dọc có thể đạt được một cách xuất sắc.
Ứng dụng:
• Kính chắn gió ô tô
• Cửa ô tô
• Mái ô tô
• Tấm lõm
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

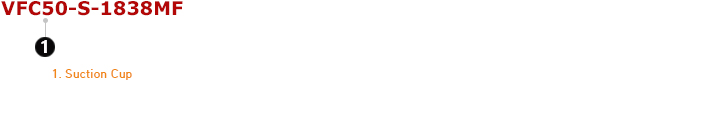

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VFC50-N-1838MF | Flat-curved suction cup, 50 mm, Nitrile (NBR), G1/8 female-G3/8 male |
| VFC50-S-1838MF | Flat-curved suction cup, 50 mm, Silicone, G1/8 female-G3/8 male |
| VFC50-WS-1838MF | Flat-curved suction cup, 50 mm, White silicone, G1/8 female-G3/8 male |
| VFC50-WS-1838MF(FDA) | Flat-curved suction cup, 50 mm, White silicone (FDA), G1/8 female-G3/8 male |
| VFC50-HS-1838MF | Flat-curved suction cup, 50 mm, High-temp silicone, G1/8 female-G3/8 male |
| VFC50-CS-1838MF | Flat-curved suction cup, 50 mm, Conductive silicon, G1/8 female-G3/8 male |
| VFC50-U-1838MF | Flat-curved suction cup, 50 mm, Urethane, G1/8 female-G3/8 male |
| VFC50-A-1838MF | Flat-curved suction cup, 50 mm, Mark free, G1/8 female-G3/8 male |
| VFC50-PU-1838MF | Flat-curved suction cup, 50 mm, Polyurethane, G1/8 female-G3/8 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 50 | 10.00 | 2.85 | 6.94 | 10.20 | 2.61 | 6.34 | 8.20 |
2. Weight
| Part Number | Description | Weight (g) |
| VFC50-N-1838MF | Flat-curved cup, 50 mm, Nitrile (NBR), G1/8 female-G3/8 male | 16.4 |
| VFC50-S-1838MF | Flat-curved cup, 50 mm, Silicone, G1/8 female-G3/8 male | 15.6 |
| VFC50-WS-1838MF | Flat-curved cup, 50 mm, White silicone, G1/8 female-G3/8 male | 16.0 |
| VFC50-WS-1838MF(FDA) | Flat-curved cup, 50 mm, White silicone (FDA), G1/8 female-G3/8 male | 16.0 |
| VFC50-HS-1838MF | Flat-curved cup, 50 mm, High-temp silicone, G1/8 female-G3/8 male | 17.0 |
| VFC50-CS-1838MF | Flat-curved cup, 50 mm, Conductive silicone, G1/8 female-G3/8 male | 16.3 |
| VFC50-U-1838MF | Flat-curved cup, 50 mm, Urethane, G1/8 female-G3/8 male | 17.0 |
| VFC50-A-1838MF | Flat-curved cup, 50 mm, Mark free, G1/8 female-G3/8 male | 17.7 |
| VFC50-PU-1838MF | Flat-curved cup, 50 mm, Polyurethane, G1/8 female-G3/8 male | 15.0 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

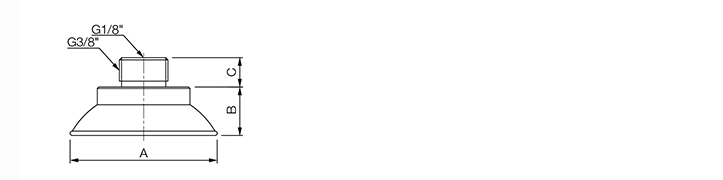

DIMENSIONS:
VFC50
|
|
 |
| Unit: mm |
| Legend | A | B | C |
| Dimension | 50 | 16.5 | 10 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VFC50-N-1838MF | Flat-curved suction cup, 50 mm, Nitrile (NBR), G1/8 female-G3/8 male |
| VFC50-S-1838MF | Flat-curved suction cup, 50 mm, Silicone, G1/8 female-G3/8 male |
| VFC50-WS-1838MF | Flat-curved suction cup, 50 mm, White silicone, G1/8 female-G3/8 male |
| VFC50-WS-1838MF(FDA) | Flat-curved suction cup, 50 mm, White silicone (FDA), G1/8 female-G3/8 male |
| VFC50-HS-1838MF | Flat-curved suction cup, 50 mm, High-temp silicone, G1/8 female-G3/8 male |
| VFC50-CS-1838MF | Flat-curved suction cup, 50 mm, Conductive silicon, G1/8 female-G3/8 male |
| VFC50-U-1838MF | Flat-curved suction cup, 50 mm, Urethane, G1/8 female-G3/8 male |
| VFC50-A-1838MF | Flat-curved suction cup, 50 mm, Mark free, G1/8 female-G3/8 male |
| VFC50-PU-1838MF | Flat-curved suction cup, 50 mm, Polyurethane, G1/8 female-G3/8 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
