GIÁC HÚT CHÂN KHÔNG VMECA SERIES VFC100
VMECA - VFC100
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 35,71 Kg @ -60 kPa
• Lực nâng (→): 23,97 Kg @ -60 kPa
• Thể tích: 80,0 cm³
• Đường kính: 100 mm
• Cốc hút VFC là tuyệt vời để xử lý các bề mặt cong và phẳng. Các cleats trên cốc hút cải thiện ma sát giữa phần giữ và cốc hút. Do đó, di chuyển các sản phẩm theo chiều ngang hoặc chiều dọc có thể đạt được một cách xuất sắc.
Ứng dụng:
• Kính chắn gió ô tô
• Cửa ô tô
• Mái ô tô
• Tấm lõm
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

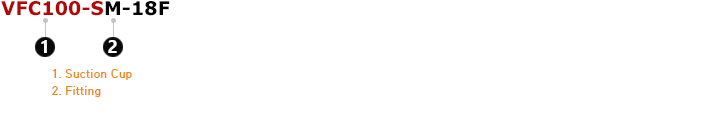

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VFC100-N | Flat-curved suction cup, 100 mm, Nitrile (NBR) |
| VFC100-S | Flat-curved suction cup, 100 mm, Silicone |
| VFC100-WS | Flat-curved suction cup, 100 mm, White silicone |
| VFC100-WS(FDA) | Flat-curved suction cup, 100 mm, White silicone (FDA) |
| VFC100-HS | Flat-curved suction cup, 100 mm, High-temp silicone |
| VFC100-CS | Flat-curved suction cup, 100 mm, Conductive silicon |
| VFC100-U | Flat-curved suction cup, 100 mm, Urethane |
| VFC100-A | Flat-curved suction cup, 100 mm, Mark free |
| VFC100-PU | Flat-curved suction cup, 100 mm, Polyurethane |
2. Fitting
| Symbol | Description |
| M-18F | Fitting, Mesh filter, G1/8 female, |
| M-14F | Fitting, Mesh filter, G1/4 female |
| M-38F | Fitting, Mesh filter, G3/8 female |
| M-12F | Fitting, Mesh filter, G1/2 female |
| 18F | Fitting, G1/8 female |
| 14F | Fitting, G1/4 female |
| 38F | Fitting, G3/8 female |
| 12F | Fitting, G1/2 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lifting Force (↑), Kg | Life Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 100 | 80.00 | 12.75 | 35.71 | 46.93 | 12.24 | 23.97 | 28.57 |
2. Weight
| Part Number | Description | Weight (g) |
| VFC100-N | Flat-curved suction cup, 100 mm, Nitrile (NBR) | 83.9 |
| VFC100-S | Flat-curved suction cup, 100 mm, Silicone | 76.4 |
| VFC100-WS | Flat-curved suction cup, 100 mm, White silicone | 81.6 |
| VFC100-WS(FDA) | Flat-curved suction cup, 100 mm, White silicone (FDA) | 81.6 |
| VFC100-HS | Flat-curved suction cup, 100 mm, High-temp silicone | 88.7 |
| VFC100-CS | Flat-curved suction cup, 100 mm, Conductive silicon | 80.3 |
| VFC100-U | Flat-curved suction cup, 100 mm, Urethane | 84.5 |
| VFC100-A | Flat-curved suction cup, 100 mm, Mark free | 95.7 |
| VFC100-PU | Flat-curved suction cup, 100 mm, Polyurethane | 70.4 |
| 350-000-4323 | Fitting, Mesh filter, G1/8 female, | 59.8 |
| 350-000-3823 | Fitting, Mesh filter, G1/4 female | 57.3 |
| 350-000-3923 | Fitting, Mesh filter, G3/8 female | 55.5 |
| 350-000-4023 | Fitting, Mesh filter, G1/2 female | 51.9 |
| 350-000-3323 | Fitting, G1/8 female | 59.4 |
| 350-000-3423 | Fitting, G1/4 female | 56.9 |
| 350-000-3523 | Fitting, G3/8 female | 55.1 |
| 350-000-3623 | Fitting, G1/2 female | 51.5 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| White Silicone | 55 | Translucent White | -70 ~ 200 |
| White Silicone (FDA) | 55 | Translucent White | -70 ~ 200 |
| High Temp. Silicone | 50 | Blue | -70 ~ 280 |
| Conductive Material | 70 | Smoky Black | -45 ~ 90 |
| Urethane | 60 | Dark Green | 0 ~ 100 |
| Mark Free | 75 | Black | -10 ~ 100 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| White Silicone | Good | Poor | Excellent | Good | Poor |
| High Temp. Silicone | Good | Poor | Excellent | Good | Poor |
| Conductive Silicone | Good | Poor | Excellent | Good | Poor |
| Urethane | Excellent | Excellent | Excellent | Fair | Poor |
| Mark Free | Good | Excellent | Excellent | Good | Excellent |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

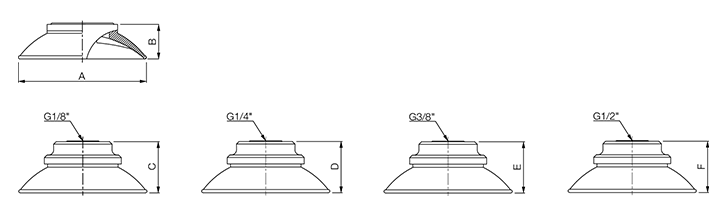

DIMENSIONS:
VFC100
|
|||
 |
| Unit: mm |
| Legend | A | B | C | D | E | F |
| Dimension | 100 | 27 | 40 | 40 | 40 | 40 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VFC100-NM-18F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G1/8 female, Mesh filter |
| VFC100-SM-18F | Flat-curved suction cup, 100 mm, Silicone, G1/8 female, Mesh filter |
| VFC100-WSM-18F | Flat-curved suction cup, 100 mm, White silicone, G1/8 female, Mesh filter |
| VFC100-WS(FDA)M-18F | Flat-curved suction cup, 100 mm, White silicone (FDA), G1/8 female, Mesh filter |
| VFC100-HSM-18F | Flat-curved suction cup, 100 mm, High-temp silicone, G1/8 female, Mesh filter |
| VFC100-CSM-18F | Flat-curved suction cup, 100 mm, Conductive silicon, G1/8 female, Mesh filter |
| VFC100-UM-18F | Flat-curved suction cup, 100 mm, Urethane, G1/8 female, Mesh filter |
| VFC100-AM-18F | Flat-curved suction cup, 100 mm, Mark free, G1/8 female, Mesh filter |
| VFC100-PUM-18F | Flat-curved suction cup, 100 mm, Polyurethane, G1/8 female, Mesh filter |
| VFC100-NM-14F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G1/4 female, Mesh filter |
| VFC100-SM-14F | Flat-curved suction cup, 100 mm, Silicone, G1/4 female, Mesh filter |
| VFC100-WSM-14F | Flat-curved suction cup, 100 mm, White silicone, G1/4 female, Mesh filter |
| VFC100-WS(FDA)M-14F | Flat-curved suction cup, 100 mm, White silicone (FDA), G1/4 female, Mesh filter |
| VFC100-HSM-14F | Flat-curved suction cup, 100 mm, High-temp silicone, G1/4 female, Mesh filter |
| VFC100-CSM-14F | Flat-curved suction cup, 100 mm, Conductive silicon, G1/4 female, Mesh filter |
| VFC100-UM-14F | Flat-curved suction cup, 100 mm, Urethane, G1/4 female, Mesh filter |
| VFC100-AM-14F | Flat-curved suction cup, 100 mm, Mark free, G1/4 female, Mesh filter |
| VFC100-PUM-14F | Flat-curved suction cup, 100 mm, Polyurethane, G1/4 female, Mesh filter |
| VFC100-NM-38F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G3/8 female, Mesh filter |
| VFC100-SM-38F | Flat-curved suction cup, 100 mm, Silicone, G3/8 female, Mesh filter |
| VFC100-WSM-38F | Flat-curved suction cup, 100 mm, White silicone, G3/8 female, Mesh filter |
| VFC100-WS(FDA)M-38F | Flat-curved suction cup, 100 mm, White silicone (FDA), G3/8 female, Mesh filter |
| VFC100-HSM-38F | Flat-curved suction cup, 100 mm, High-temp silicone, G3/8 female, Mesh filter |
| VFC100-CSM-38F | Flat-curved suction cup, 100 mm, Conductive silicon, G3/8 female, Mesh filter |
| VFC100-UM-38F | Flat-curved suction cup, 100 mm, Urethane, G3/8 female, Mesh filter |
| VFC100-AM-38F | Flat-curved suction cup, 100 mm, Mark free, G3/8 female, Mesh filter |
| VFC100-PUM-38F | Flat-curved suction cup, 100 mm, Polyurethane, G3/8 female, Mesh filter |
| VFC100-NM-12F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G1/2 female, Mesh filter |
| VFC100-SM-12F | Flat-curved suction cup, 100 mm, Silicone, G1/2 female, Mesh filter |
| VFC100-WSM-12F | Flat-curved suction cup, 100 mm, White silicone, G1/2 female, Mesh filter |
| VFC100-WS(FDA)M-12F | Flat-curved suction cup, 100 mm, White silicone (FDA), G1/2 female, Mesh filter |
| VFC100-HSM-12F | Flat-curved suction cup, 100 mm, High-temp silicone, G1/2 female, Mesh filter |
| VFC100-CSM-12F | Flat-curved suction cup, 100 mm, Conductive silicon, G1/2 female, Mesh filter |
| VFC100-UM-12F | Flat-curved suction cup, 100 mm, Urethane, G1/2 female, Mesh filter |
| VFC100-AM-12F | Flat-curved suction cup, 100 mm, Mark free, G1/2 female, Mesh filter |
| VFC100-PUM-12F | Flat-curved suction cup, 100 mm, Polyurethane, G1/2 female, Mesh filter |
| No Mesh Filter | |
| VFC100-N-18F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G1/8 female |
| VFC100-S-18F | Flat-curved suction cup, 100 mm, Silicone, G1/8 female |
| VFC100-WS-18F | Flat-curved suction cup, 100 mm, White silicone, G1/8 female |
| VFC100-WS(FDA)-18F | Flat-curved suction cup, 100 mm, White silicone (FDA), G1/8 female |
| VFC100-HS-18F | Flat-curved suction cup, 100 mm, High-temp silicone, G1/8 female |
| VFC100-CS-18F | Flat-curved suction cup, 100 mm, Conductive silicon, G1/8 female |
| VFC100-U-18F | Flat-curved suction cup, 100 mm, Urethane, G1/8 female |
| VFC100-A-18F | Flat-curved suction cup, 100 mm, Mark free, G1/8 female |
| VFC100-PU-18F | Flat-curved suction cup, 100 mm, Polyurethane, G1/8 female |
| VFC100-N-14F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G1/4 female |
| VFC100-S-14F | Flat-curved suction cup, 100 mm, Silicone, G1/4 female |
| VFC100-WS-14F | Flat-curved suction cup, 100 mm, White silicone, G1/4 female |
| VFC100-WS(FDA)-14F | Flat-curved suction cup, 100 mm, White silicone (FDA), G1/4 female |
| VFC100-HS-14F | Flat-curved suction cup, 100 mm, High-temp silicone, G1/4 female |
| VFC100-CS-14F | Flat-curved suction cup, 100 mm, Conductive silicon, G1/4 female |
| VFC100-U-14F | Flat-curved suction cup, 100 mm, Urethane, G1/4 female |
| VFC100-A-14F | Flat-curved suction cup, 100 mm, Mark free, G1/4 female |
| VFC100-PU-14F | Flat-curved suction cup, 100 mm, Polyurethane, G1/4 female |
| VFC100-N-38F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G3/8 female |
| VFC100-S-38F | Flat-curved suction cup, 100 mm, Silicone, G3/8 female |
| VFC100-WS-38F | Flat-curved suction cup, 100 mm, White silicone, G3/8 female |
| VFC100-WS(FDA)-38F | Flat-curved suction cup, 100 mm, White silicone (FDA), G3/8 female |
| VFC100-HS-38F | Flat-curved suction cup, 100 mm, High-temp silicone, G3/8 female |
| VFC100-CS-38F | Flat-curved suction cup, 100 mm, Conductive silicon, G3/8 female |
| VFC100-U-38F | Flat-curved suction cup, 100 mm, Urethane, G3/8 female |
| VFC100-A-38F | Flat-curved suction cup, 100 mm, Mark free, G3/8 female |
| VFC100-PU-38F | Flat-curved suction cup, 100 mm, Polyurethane, G3/8 female |
| VFC100-N-12F | Flat-curved suction cup, 100 mm, Nitrile (NBR), G1/2 female |
| VFC100-S-12F | Flat-curved suction cup, 100 mm, Silicone, G1/2 female |
| VFC100-WS-12F | Flat-curved suction cup, 100 mm, White silicone, G1/2 female |
| VFC100-WS(FDA)-12F | Flat-curved suction cup, 100 mm, White silicone (FDA), G1/2 female |
| VFC100-HS-12F | Flat-curved suction cup, 100 mm, High-temp silicone, G1/2 female |
| VFC100-CS-12F | Flat-curved suction cup, 100 mm, Conductive silicon, G1/2 female |
| VFC100-U-12F | Flat-curved suction cup, 100 mm, Urethane, G1/2 female |
| VFC100-A-12F | Flat-curved suction cup, 100 mm, Mark free, G1/2 female |
| VFC100-PU-12F | Flat-curved suction cup, 100 mm, Polyurethane, G1/2 female |
| Rubber Part | |
| VFC100-N | Flat-curved suction cup, 100 mm, Nitrile (NBR) |
| VFC100-S | Flat-curved suction cup, 100 mm, Silicone |
| VFC100-WS | Flat-curved suction cup, 100 mm, White silicone |
| VFC100-WS(FDA) | Flat-curved suction cup, 100 mm, White silicone (FDA) |
| VFC100-HS | Flat-curved suction cup, 100 mm, High-temp silicone |
| VFC100-CS | Flat-curved suction cup, 100 mm, Conductive silicon |
| VFC100-U | Flat-curved suction cup, 100 mm, Urethane |
| VFC100-A | Flat-curved suction cup, 100 mm, Mark free |
| VFC100-PU | Flat-curved suction cup, 100 mm, Polyurethane |
| Fitting | |
| 350-000-4323 | Fitting, Mesh filter, G1/8 female, |
| 350-000-3823 | Fitting, Mesh filter, G1/4 female |
| 350-000-3923 | Fitting, Mesh filter, G3/8 female |
| 350-000-4023 | Fitting, Mesh filter, G1/2 female |
| 350-000-3323 | Fitting, G1/8 female |
| 350-000-3423 | Fitting, G1/4 female |
| 350-000-3523 | Fitting, G3/8 female |
| 350-000-3623 | Fitting, G1/2 female |
