GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBX55
VMECA - VBX55
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 10.10 Kg @ -60 kPa
• Thể tích: 29,5 cm³
• Đường kính: 55,8 mm
• VBX đặc biệt tốt để sử dụng trên bề mặt cong và để tách các tấm vật liệu mỏng trong ngăn xếp. Cốc hút ống đôi rất tốt trong việc bù cho các mức độ và độ cong khác nhau của phôi. Các rãnh ở đáy cốc hút cho phép VBX có độ bám rất tốt vào vật giữ.
Ứng dụng:
• Nhưng tâm kim loại
• Veneer tấm
• Ván ép
• Hộp carton
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

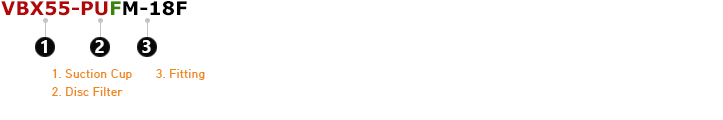

BUILD AND ORDER:
1. Suction Cup
| Symbol | Description |
| VBX55-PU | Double-bellows & cross grooved cup, 55 mm, Polyurethane |
2. Disc Filter
| Symbol | Description |
| Blank | No disc filter |
| F | Disc filter |
3. Fitting
| Symbol | Description |
| Blank | No fitting |
| M-18F | Fitting, Mesh filter, G1/8 female |
| M-14M | Fitting, Mesh filter, G1/4 male |
| M-38M | Fitting, Mesh filter, G3/8 male |
| M-38F | Fitting, Mesh filter, G3/8 female |
| 18F | Fitting, G1/8 female |
| 14M | Fitting, G1/4 male |
| 38M | Fitting, G3/8 male |
| 38F | Fitting, G3/8 female |
| 18F-EV | Efficiency valve fitting, G1/8 female |
| 14M-EV | Efficiency valve fitting, G1/4 male |
| 38M-EV | Efficiency valve fitting, G3/8 male |
| 38F-EV | Efficiency valve fitting, G3/8 female |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | ||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa |
| 55.8 | 29.5 | 7.6 | 10.1 | 12.2 |
2. Weight
| Part Number | Description | Weight (g) |
| VBX55-PU | Double-bellows & cross grooved cup, 55 mm, Polyurethane | 20.72 |
| VTFE-BX55 | Disc filter, Polyethylene | 1.06 |
| 350-000-4312 | Fitting, Mesh filter, G1/8 female | 5.73 |
| 350-000-3805 | Fitting, Mesh filter, G1/4 male | 5.92 |
| 350-000-3905 | Fitting, Mesh filter, G3/8 male | 9.56 |
| Fitting, Mesh filter, G3/8 female | ||
| 350-000-3312 | Fitting, G1/8 female | 5.68 |
| 350-000-3405 | Fitting, G1/4 male | 5.88 |
| 350-000-3505 | Fitting, G3/8 male | 9.16 |
| Fitting, G3/8 female | ||
| 350-010-3312 | Efficiency valve fitting, G1/8 female | 5.63 |
| 350-010-3405 | Efficiency valve fitting, G1/4 male | 6.03 |
| 350-010-3505 | Efficiency valve fitting, G3/8 male | 9.41 |
| Efficiency valve fitting, G3/8 female |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |

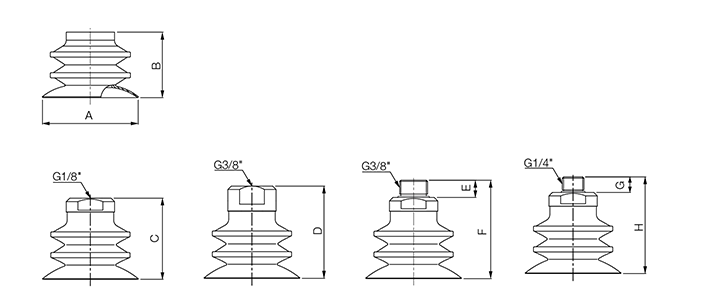

DIMENSIONS:
VBX55
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H |
| Dimension | 55.8 | 40 | 48 | 54.5 | 10 | 58 | 9 | 57 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| Mesh Filter | |
| VBX55-PUM-18F | Double-bellows & cross grooved cup, 55 mm, PU, G1/8 female, Mesh filter |
| VBX55-PUM-14M | Double-bellows & cross grooved cup, 55 mm, PU, G1/4 male, Mesh filter |
| VBX55-PUM-38M | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 male, Mesh filter |
| VBX55-PUM-38F | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 female, Mesh filter |
| No Mesh Filter | |
| VBX55-PU-18F | Double-bellows & cross grooved cup, 55 mm, PU, G1/8 female |
| VBX55-PU-14M | Double-bellows & cross grooved cup, 55 mm, PU, G1/4 male |
| VBX55-PU-38M | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 male |
| VBX55-PU-38F | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 female |
| Mesh & Disc Filter | |
| VBX55-PUFM-18F | Double-bellows & cross grooved cup, 55 mm, PU, G1/8 female, Mesh, disc filter |
| VBX55-PUFM-14M | Double-bellows & cross grooved cup, 55 mm, PU, G1/4 male, Mesh, disc filter |
| VBX55-PUFM-38M | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 male, Mesh, disc filter |
| VBX55-PUFM-38F | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 female, Mesh, disc filter |
| Disc Filter | |
| VBX55-PUF-18F | Double-bellows & cross grooved cup, 55 mm, PU, G1/8 female, Disc filter |
| VBX55-PUF-14M | Double-bellows & cross grooved cup, 55 mm, PU, G1/4 male, Disc filter |
| VBX55-PUF-38M | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 male, Disc filter |
| VBX55-PUF-38F | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 female, Disc filter |
| Efficiency Valve | |
| VBX55-PU-18F-EV | Double-bellows & cross grooved cup, 55 mm, PU, G1/8 female, Eff valve |
| VBX55-PU-14M-EV | Double-bellows & cross grooved cup, 55 mm, PU, G1/4 male, Eff valve |
| VBX55-PU-38M-EV | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 male, Eff valve |
| VBX55-PU-38F-EV | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 female, Eff valve |
| Disc Filter & Efficiency Valve | |
| VBX55-PUF-18F-EV | Double-bellows & cross grooved cup, 55 mm, PU, G1/8 female, Eff valve, Disc filter |
| VBX55-PUF-14M-EV | Double-bellows & cross grooved cup, 55 mm, PU, G1/4 male, Eff valve, Disc filter |
| VBX55-PUF-38M-EV | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 male, Eff valve, Disc filter |
| VBX55-PUF-38F-EV | Double-bellows & cross grooved cup, 55 mm, PU, G3/8 female, Eff valve, Disc filter |
| Rubber Part | |
| VBX55-PU | Double-bellows & cross grooved cup, 55 mm, Polyurethane |
| Disc Filter | |
| VTFE-BX55 | Disc filter, Polyethylene |
| Fitting | |
| 350-000-4312 | Fitting, Mesh filter, G1/8 female |
| 350-000-3805 | Fitting, Mesh filter, G1/4 male |
| 350-000-3905 | Fitting, Mesh filter, G3/8 male |
| Fitting, Mesh filter, G3/8 female | |
| 350-000-3312 | Fitting, G1/8 female |
| 350-000-3405 | Fitting, G1/4 male |
| 350-000-3505 | Fitting, G3/8 male |
| Fitting, G3/8 female | |
| 350-010-3312 | Efficiency valve fitting, G1/8 female |
| 350-010-3405 | Efficiency valve fitting, G1/4 male |
| 350-010-3505 | Efficiency valve fitting, G3/8 male |
| Efficiency valve fitting, G3/8 female | |
