GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBF50
VMECA - VBF50
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 13,20 Kg @ -60 kPa
• Lực nâng (→): 9,60 Kg @ -60 kPa
• Âm lượng: 11,0 cm³
• Đường kính: 51,5 mm
• Sê-ri VBF rất tuyệt vời với bề mặt hơi tròn và bề mặt phẳng. Các cleats trên cốc hút cho phép một lực kẹp tăng cường trên các chuyển động ngang. Bề mặt rộng hơn của môi cho phép lực nâng tốt có thể đạt được trong mặt phẳng thẳng đứng.
Ứng dụng:
• Thẻ
• Veneer tấm
• Tấm nhựa
• Sản phẩm gỗ
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

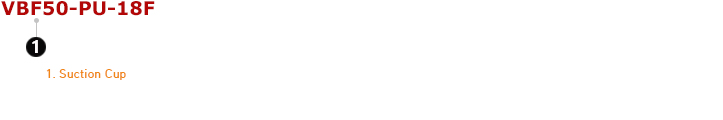

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VBF50-N-18F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/8 female |
| VBF50-S-18F | Large-lip bellows cup, 50 mm, Silicone, G1/8 female |
| VBF50-PU-18F | Large-lip bellows cup, 50 mm, Polyurethane, G1/8 female |
| VBF50-N-14F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/4 female |
| VBF50-S-14F | Large-lip bellows cup, 50 mm, Silicone, G1/4 female |
| VBF50-PU-14F | Large-lip bellows cup, 50 mm, Polyurethane, G1/4 female |
| VBF50-N-14M | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/4 male |
| VBF50-S-14M | Large-lip bellows cup, 50 mm, Silicone, G1/4 male |
| VBF50-PU-14M | Large-lip bellows cup, 50 mm, Polyurethane, G1/4 male |
| VBF50-N-38F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G3/8 female |
| VBF50-S-38F | Large-lip bellows cup, 50 mm, Silicone, G3/8 female |
| VBF50-PU-38F | Large-lip bellows cup, 50 mm, Polyurethane, G3/8 female |
| VBF50-N-38M | Large-lip bellows cup, 50 mm, Nitrile (NBR), G3/8 male |
| VBF50-S-38M | Large-lip bellows cup, 50 mm, Silicone, G3/8 male |
| VBF50-PU-38M | Large-lip bellows cup, 50 mm, Polyurethane, G3/8 male |
| VBF50-N-M10M | Large-lip bellows cup, 50 mm, Nitrile(NBR), M10 male |
| VBF50-S-M10M | Large-lip bellows cup, 50 mm, Silicone, M10 male |
| VBF50-PU-M10M | Large-lip bellows cup, 50 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Lift Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 51.5 | 11.0 | 4.18 | 13.20 | 16.28 | 2.09 | 9.60 | 14.70 |
2. Weight
| Part Number | Description | Weight (g) |
| VBF50-N-18F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/8 female | 48.4 |
| VBF50-S-18F | Large-lip bellows cup, 50 mm, Silicone, G1/8 female | 43.3 |
| VBF50-PU-18F | Large-lip bellows cup, 50 mm, Polyurethane, G1/8 female | 47.2 |
| VBF50-N-14F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/4 female | 47.8 |
| VBF50-S-14F | Large-lip bellows cup, 50 mm, Silicone, G1/4 female | 41.3 |
| VBF50-PU-14F | Large-lip bellows cup, 50 mm, Polyurethane, G1/4 female | 45.0 |
| VBF50-N-14M | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/4 male | 52.3 |
| VBF50-S-14M | Large-lip bellows cup, 50 mm, Silicone, G1/4 male | 47.7 |
| VBF50-PU-14M | Large-lip bellows cup, 50 mm, Polyurethane, G1/4 male | 51.1 |
| VBF50-N-38F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G3/8 female | 42.6 |
| VBF50-S-38F | Large-lip bellows cup, 50 mm, Silicone, G3/8 female | 42.4 |
| VBF50-PU-38F | Large-lip bellows cup, 50 mm, Polyurethane, G3/8 female | 44.9 |
| VBF50-N-38M | Large-lip bellows cup, 50 mm, Nitrile (NBR), G3/8 male | 50.5 |
| VBF50-S-38M | Large-lip bellows cup, 50 mm, Silicone, G3/8 male | 49.6 |
| VBF50-PU-38M | Large-lip bellows cup, 50 mm, Polyurethane, G3/8 male | 52.7 |
| VBF50-N-M10M | Large-lip bellows cup, 50 mm, Nitrile(NBR), M10 male | 46.2 |
| VBF50-S-M10M | Large-lip bellows cup, 50 mm, Silicone, M10 male | 46.7 |
| VBF50-PU-M10M | Large-lip bellows cup, 50 mm, Polyurethane, M10 male | 50.2 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |
DIMENSIONS:
VBF50
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J |
| Dimension | 51.5 | 37.2 | 37.2 | 38.8 | 10 | 37.2 | 39.7 | 9 | 37.2 | 11 |
ORDER NUMBER:
Order Numbers
| Part Number | Description |
| VBF50-N-18F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/8 female |
| VBF50-S-18F | Large-lip bellows cup, 50 mm, Silicone, G1/8 female |
| VBF50-PU-18F | Large-lip bellows cup, 50 mm, Polyurethane, G1/8 female |
| VBF50-N-14F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/4 female |
| VBF50-S-14F | Large-lip bellows cup, 50 mm, Silicone, G1/4 female |
| VBF50-PU-14F | Large-lip bellows cup, 50 mm, Polyurethane, G1/4 female |
| VBF50-N-14M | Large-lip bellows cup, 50 mm, Nitrile (NBR), G1/4 male |
| VBF50-S-14M | Large-lip bellows cup, 50 mm, Silicone, G1/4 male |
| VBF50-PU-14M | Large-lip bellows cup, 50 mm, Polyurethane, G1/4 male |
| VBF50-N-38F | Large-lip bellows cup, 50 mm, Nitrile (NBR), G3/8 female |
| VBF50-S-38F | Large-lip bellows cup, 50 mm, Silicone, G3/8 female |
| VBF50-PU-38F | Large-lip bellows cup, 50 mm, Polyurethane, G3/8 female |
| VBF50-N-38M | Large-lip bellows cup, 50 mm, Nitrile (NBR), G3/8 male |
| VBF50-S-38M | Large-lip bellows cup, 50 mm, Silicone, G3/8 male |
| VBF50-PU-38M | Large-lip bellows cup, 50 mm, Polyurethane, G3/8 male |
| VBF50-N-M10M | Large-lip bellows cup, 50 mm, Nitrile(NBR), M10 male |
| VBF50-S-M10M | Large-lip bellows cup, 50 mm, Silicone, M10 male |
| VBF50-PU-M10M | Large-lip bellows cup, 50 mm, Polyurethane, M10 male |
Công ty rất hân hạnh được phục vụ nhu cầu của quý khách, vui lòng liên hệ tại đây:
CÔNG TY TNHH KỸ THUẬT VÀ DỊCH VỤ MINH PHÚ
Địa chỉ: Số 244/44, Đường Dương Đình Hội, Phường Tăng Nhơn Phú B, Quận 9, Thành phố Hồ Chí Minh, Việt Nam
Hotline, zalo, skype: 0985.288.164 ( Mr.Hải )
Email: hoanghai@minhphuco.vn
Website: www.thietbinanghachankhong.vn
