GIÁC HÚT CHÂN KHÔNG VMECA SERIES VBF25
VMECA - VBF25
VMECA - KOREA
Theo tiêu chuẩn nhà sản xuất
• Lực nâng (↑): 3,20 Kg @ -60 kPa
• Lực nâng (→): 1.37 Kg @ -60 kPa
• Thể tích: 2,6 cm³
• Đường kính: 26,5 mm
• Sê-ri VBF rất tuyệt vời với bề mặt hơi tròn và bề mặt phẳng. Các cleats trên cốc hút cho phép một lực kẹp tăng cường trên các chuyển động ngang. Bề mặt rộng hơn của môi cho phép lực nâng tốt có thể đạt được trong mặt phẳng thẳng đứng.
Ứng dụng:
• Thẻ
• Veneer tấm
• Tấm nhựa
• Sản phẩm gỗ
0985.288.164
HOTLINE TƯ VẤN : 0985.288.164

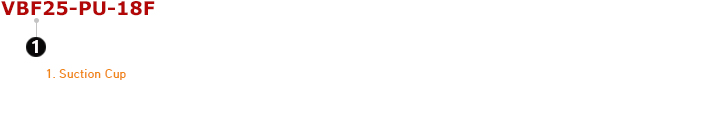

BUILD AND ORDER:
1. Suction Cup
| Part Number | Description |
| VBF25-N-18F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/8 female |
| VBF25-S-18F | Large-lip bellows cup, 25 mm, Silicone, G1/8 female |
| VBF25-PU-18F | Large-lip bellows cup, 25 mm, Polyurethane, G1/8 female |
| VBF25-N-14F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/4 female |
| VBF25-S-14F | Large-lip bellows cup, 25 mm, Silicone, G1/4 female |
| VBF25-PU-14F | Large-lip bellows cup, 25 mm, Polyurethane, G1/4 female |
| VBF25-N-14M | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/4 male |
| VBF25-S-14M | Large-lip bellows cup, 25 mm, Silicone, G1/4 male |
| VBF25-PU-14M | Large-lip bellows cup, 25 mm, Polyurethane, G1/4 male |
| VBF25-N-38F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G3/8 female |
| VBF25-S-38F | Large-lip bellows cup, 25 mm, Silicone, G3/8 female |
| VBF25-PU-38F | Large-lip bellows cup, 25 mm, Polyurethane, G3/8 female |
| VBF25-N-38M | Large-lip bellows cup, 25 mm, Nitrile (NBR), G3/8 male |
| VBF25-S-38M | Large-lip bellows cup, 25 mm, Silicone, G3/8 male |
| VBF25-PU-38M | Large-lip bellows cup, 25 mm, Polyurethane, G3/8 male |
| VBF25-N-M10M | Large-lip bellows cup, 25 mm, Nitrile(NBR), M10 male |
| VBF25-S-M10M | Large-lip bellows cup, 25 mm, Silicone, M10 male |
| VBF25-PU-M10M | Large-lip bellows cup, 25 mm, Polyurethane, M10 male |
SPECIFICITIONS:
1. Recommended Lifting Maximum Force
| Diameter | Volume | Lift Force (↑), Kg | Lift Force (→), Kg | ||||
| (mm) | (cm³) | -20 kPa | -60 kPa | -90 kPa | -20 kPa | -60 kPa | -90 kPa |
| 26.5 | 2.6 | 1.1 | 3.2 | 3.8 | 0.61 | 1.37 | 1.89 |
2. Weight
| Part Number | Description | Weight (g) |
| VBF25-N-18F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/8 female | 17.9 |
| VBF25-S-18F | Large-lip bellows cup, 25 mm, Silicone, G1/8 female | 16.3 |
| VBF25-PU-18F | Large-lip bellows cup, 25 mm, Polyurethane, G1/8 female | 15.1 |
| VBF25-N-14F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/4 female | 15.3 |
| VBF25-S-14F | Large-lip bellows cup, 25 mm, Silicone, G1/4 female | 13.9 |
| VBF25-PU-14F | Large-lip bellows cup, 25 mm, Polyurethane, G1/4 female | 15.0 |
| VBF25-N-14M | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/4 male | 21.9 |
| VBF25-S-14M | Large-lip bellows cup, 25 mm, Silicone, G1/4 male | 20.2 |
| VBF25-PU-14M | Large-lip bellows cup, 25 mm, Polyurethane, G1/4 male | 19.5 |
| VBF25-N-38F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G3/8 female | 26.0 |
| VBF25-S-38F | Large-lip bellows cup, 25 mm, Silicone, G3/8 female | 24.3 |
| VBF25-PU-38F | Large-lip bellows cup, 25 mm, Polyurethane, G3/8 female | 23.6 |
| VBF25-N-38M | Large-lip bellows cup, 25 mm, Nitrile (NBR), G3/8 male | 24.4 |
| VBF25-S-38M | Large-lip bellows cup, 25 mm, Silicone, G3/8 male | 22.7 |
| VBF25-PU-38M | Large-lip bellows cup, 25 mm, Polyurethane, G3/8 male | 22.0 |
| VBF25-N-M10M | Large-lip bellows cup, 25 mm, Nitrile(NBR), M10 male | 17.5 |
| VBF25-S-M10M | Large-lip bellows cup, 25 mm, Silicone, M10 male | 17.6 |
| VBF25-PU-M10M | Large-lip bellows cup, 25 mm, Polyurethane, M10 male | 18.9 |
3. Material Specifications
| Material | Hardness Shore (°) | Color | Temperature (℃) |
| NBR | 60 | Black | -20 ~ 110 |
| Silicone | 55 | Red | -70 ~ 200 |
| Polyurethane | 60 | Translucent Orange | 0 ~ 60 |
4. Material Resistance
| Description | Wear Resistance | Oil | Weather/Ozone | Alcohol | Acid |
| NBR | Excellent | Excellent | Fair | Good | Fair |
| Silicone | Good | Poor | Excellent | Good | Poor |
| Polyurethane | Excellent | Excellent | Excellent | Fair | Fair |
DIMENSIONS:
VBF25
|
| Unit: mm |
| Legend | A | B | C | D | E | F | G | H | I | J | K |
| Dimension | 26.5 | 25 | 25 | 26.6 | 10 | 23.5 | 17.5 | 26 | 9 | 26 | 10 |
ORDER NUMBER:
Order Numbers
| Item | Description |
| VBF25-N-18F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/8 female |
| VBF25-S-18F | Large-lip bellows cup, 25 mm, Silicone, G1/8 female |
| VBF25-PU-18F | Large-lip bellows cup, 25 mm, Polyurethane, G1/8 female |
| VBF25-N-14F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/4 female |
| VBF25-S-14F | Large-lip bellows cup, 25 mm, Silicone, G1/4 female |
| VBF25-PU-14F | Large-lip bellows cup, 25 mm, Polyurethane, G1/4 female |
| VBF25-N-14M | Large-lip bellows cup, 25 mm, Nitrile (NBR), G1/4 male |
| VBF25-S-14M | Large-lip bellows cup, 25 mm, Silicone, G1/4 male |
| VBF25-PU-14M | Large-lip bellows cup, 25 mm, Polyurethane, G1/4 male |
| VBF25-N-38F | Large-lip bellows cup, 25 mm, Nitrile (NBR), G3/8 female |
| VBF25-S-38F | Large-lip bellows cup, 25 mm, Silicone, G3/8 female |
| VBF25-PU-38F | Large-lip bellows cup, 25 mm, Polyurethane, G3/8 female |
| VBF25-N-38M | Large-lip bellows cup, 25 mm, Nitrile (NBR), G3/8 male |
| VBF25-S-38M | Large-lip bellows cup, 25 mm, Silicone, G3/8 male |
| VBF25-PU-38M | Large-lip bellows cup, 25 mm, Polyurethane, G3/8 male |
| VBF25-N-M10M | Large-lip bellows cup, 25 mm, Nitrile(NBR), M10 male |
| VBF25-S-M10M | Large-lip bellows cup, 25 mm, Silicone, M10 male |
| VBF25-PU-M10M | Large-lip bellows cup, 25 mm, Polyurethane, M10 male |
